Caractéristiques détaillées:
High performance, USB powered modules for sound & vibration analysis

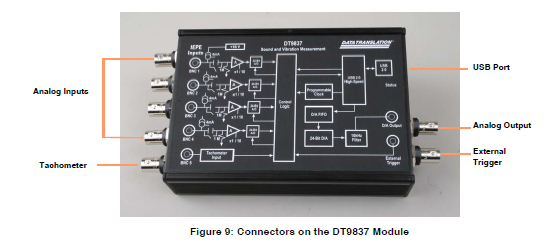

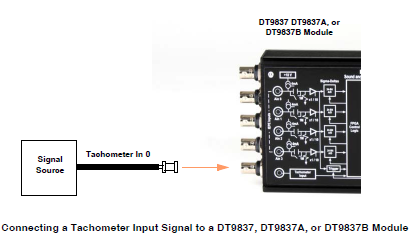

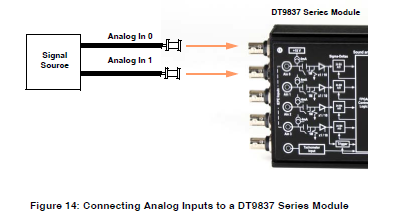

The DT9837 series high-accuracy dynamic signal acquisition modules are ideal for portable noise, vibration and acoustic measurements. Four, 24-bit, IEPE sensors inputs are synchronized with a tachometer input (on models DT9837, DT9837A and DT9837B), to provide data streams that are matched in time, for field and laboratory use. These rugged, compact modules are USB powered.
Analog output subsystem (DT9837)
*One 24-bit D/A converter
*Waveform capability of up to 8,192 sample
*Update rate of 46.875 kS/s
*Output range of +/- 10V
*A software trigger starts the analog output operation
*View all specifications for DT9837 series click here
*View manual for DT9837 series click here
High performance, USB powered modules for sound & vibration analysis
The DT9837 series high-accuracy dynamic signal acquisition modules are ideal for portable noise, vibration and acoustic measurements. Four, 24-bit, IEPE sensors inputs are synchronized with a tachometer input (on models DT9837, DT9837A and DT9837B), to provide data streams that are matched in time, for field and laboratory use. These rugged, compact modules are USB powered.
Analog output subsystem (DT9837)
*One 24-bit D/A converter
*Waveform capability of up to 8,192 sample
*Update rate of 46.875 kS/s
*Output range of +/- 10V
*A software trigger starts the analog output operation
*View all specifications for DT9837 series click here
*View manual for DT9837 series click here
Spécifications:
FOR MODEL **** DT9837****
# of Analog Inputs
4 single-ended, simultaneous channels
Resolution
24-bit
Max sample rate/ch analog input
52.7 kS/s (analog input)
Threshold Trigger
fixed
Tachometer
yes
Analog Output
1 channel, single value
Max sample rate analog output
46.875 kS/s (fixed)
