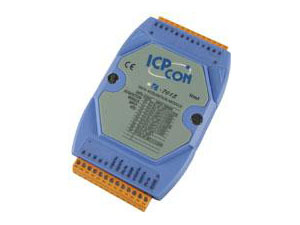

6 Channel RTD Input Module, Communicable via ModBus protocol RTD temperature range Pt100 -100 C to +100 C a =0.00385 Pt100 0 C to +100 C a =0.00385 Pt100 0 C to +200 C a =0.00385 Pt100 0 C to +600 C a =0.00385 Pt100 -100 C to +100 C a =0.003916 Pt100 0 C to +100 C a =0.003916 Pt100 0 C to +200 C a =0.003916 Pt100 0 C to +600 C a =0.003916 Ni120 -80 C to +100 C Ni120 0 C to +100 C Specifications & Additional Information Input channels : 6 RTD Range : Pt100,Pt1000, Ni120, Cu100, Cu1000 Resolution : 16-bit Accuracy : +/-0.05% Sampling Rate : 12 samples/second (Total) -3dB BandWidth : 5.24Hz Common Mode Rejection : Typical 86dB Voltage Input Impedance : >1M Ohms Individual Channel Configurable Wire Opening Detection Isolation Voltage : 3000Vdc Communication Interface: ModBus Protocol Input Voltage Range : +10~+30Vdc Power Consumption :1.1W

M-7016: 2 Channel Strain Gauge Input Module, Communicable via ModBus protocol Analog Input Input Channel:2 Analog Input type : mV, V, mA Sampling Rate:10 Samples/Second Bandwidth : 5.24Hz Accuracy :0.05% Zero Drift : 0.5?V/ ?XC Drift : 25ppm/?X CMR@50/60Hz : 150dB NMR@50/60Hz : 100dB Input Impedance : 20M Ohms Isolation : 3000VDC Excitation Voltage Output Output Channel : 1 Output Range : 0 to +10V Max OUtput Load : 40mA Accuracy : 0.05% of FSR Drift : 50ppm/ ?XC Output Impedance : 12 Ohms Isolation : 3000VDC Digital Input Logic Level 0 : +1V max Logic Level 1 : +3.5 to 30V Digital Output Open Collector to 30V Output Load : sink 30mA max Power Dissipation : 30mW 2 channel strain gauge input module 3000 VDC isolatied analog input. 24-bits sigma-delta ADC to provide excellent accuracy 16-bit DAC supply excitation voltage for strain gauge Software calibration Linear Mapping : the I-7016D is the I-7016 with a 4 ?digit LED display Event Counter Max Input Frequency : 50Hz Min. Pulse Width : 1mS Power Supply Input : +10 to +30VDC Consumption :2.4W for I-7016 3.0W for I-7016D

M-7016 with LED display Analog Input Input Channel:2 Analog Input type : mV, V, mA Sampling Rate:10 Samples/Second Bandwidth : 5.24Hz Accuracy :0.05% Zero Drift : 0.5?V/ ?XC Drift : 25ppm/?X CMR@50/60Hz : 150dB NMR@50/60Hz : 100dB Input Impedance : 20M Ohms Isolation : 3000VDC Excitation Voltage Output Output Channel : 1 Output Range : 0 to +10V Max OUtput Load : 40mA Accuracy : 0.05% of FSR Drift : 50ppm/ ?XC Output Impedance : 12 Ohms Isolation : 3000VDC Digital Input Logic Level 0 : +1V max Logic Level 1 : +3.5 to 30V Digital Output Open Collector to 30V Output Load : sink 30mA max Power Dissipation : 30mW 2 channel strain gauge input module 3000 VDC isolatied analog input. 24-bits sigma-delta ADC to provide excellent accuracy 16-bit DAC supply excitation voltage for strain gauge Software calibration Linear Mapping : the I-7016D is the I-7016 with a 4 ?digit LED display Event Counter Max Input Frequency : 50Hz Min. Pulse Width : 1mS Power Supply Input : +10 to +30VDC Consumption :2.4W for I-7016 3.0W for I-7016D

8-channel Analog Input Module. Communicable via ModBus Protocol Channels : 6 differential + 2 single-ended or 8 differential (jumper select) Resolution : 16-bit Input type: mV, V , mA Input range: ? 150mV, ? 500mV , ? 1V, ? 5V, ? 10V and ? 20mA Sample rate: 10 sample/sec(total) Bandwidth: 13.1 Hz Accuracy: ? 0.1% or better Zero drift: ? 0.03uV/C Span drift: ? 25ppm/C CMR @ 50/60 Hz : 92 dB min Over voltage protection: 35V

8-channel Analog Input Module with High Over Voltage Protection, Communicable via ModBus protocol Channels : 6 differential + 2 single-ended or 8 differential (jumper select) Resolution : 16-bit Input type: mV, V , mA Input range: 150mV, ? 500mV , ? 1V, ? 5V, ? 10V and ? 20mA Sample rate: 10 sample/sec(total) Bandwidth: 13.1 Hz Accuracy: 0.1% or better Zero drift: 0.03uV/C Span drift: 25ppm/C CMR @ 50/60 Hz : 92 dB min Over voltage protection: 3000Vrms

8-channel Thermocouple Input Module, Communicable via ModBus Protocol Communication: Via ModBus Protocol Type : thermocouple, mV, V, or mA Channels 6 differential + 2 single-ended or 8 differential(jumper select) Voltage range: +/-15mV, +/-50mV ,+/-100mV, +/-500mV, +/-1V, +/-2.5V Current range: ? 20mA Sampling rate: 10 samples/sec(total) Bandwidth: 13.1 Hz Accuracy: ? 0.05% or better Zero drift: ? 0.033ppm/?X C CMR @ 50/60 Hz: 150 dB NMR @50/60 Hz: 100 dB Span drift: 25ppm/?X C Over voltage protection: ? 35V Input Power : 10~30VDC Power consumption: 1.2W

8-channel Thermocouple Input Module with High Over Voltage Protection, communicable via ModBus protocol Communication: Via ModBus Protocol Type : thermocouple, mV, V, or mA Channels: 6 differential + 2 single-ended or 8 differential(jumper select) Voltage range: 15mV, 50mV , 100mV, 500mV, 1V, 2.5V Current range: 20mA Sampling rate: 10 samples/sec(total) Bandwidth: 13.1 Hz Accuracy: 0.05% or better Zero drift: 0.033ppm/X C CMR @ 50/60 Hz: 150 dB NMR @50/60 Hz: 100 dB Span drift: 25ppm/X C Over voltage protection: 3,000vrms Input Power : 10~30VDC Power consumption: 1.2W

8 Channel Universal Input Module with High Voltage Protection. Communicable via ModBus protocol. Communication: Via ModBus Protocol Analog Input Input Type : mV, V, mA, Thermocouple Input Channels: 8 differential Voltage Range: +/-15mV, +/- 50mV, +/-100mV, +/-150mV, +/-500mV, +/-1V, +/-2.5V, +/-5V, +/-10V Current Range: 20mA (jumper selectable) Thermocouple Range : Type J, K, T, E, R, S, B, N, C, L, M, L2 Resolution : 16-bits Sampling Rate : 8 samples/second (Total) Accuracy : +/-0.15% -3dB BandWidth : 5.24Hz Common Mode Rejection : Typical 86dB Voltage Input Impedance :2M Ohms Overvoltage Voltage Protection : +/-240Vrms Individual Channel Configurable Wire Opening Detection for Thermocouple Isolation Voltage : 3000Vdc Communication Interface ModBus Protocol Power Supply Input Voltage Range: +10~+30Vdc Power Consumption: 1.2W
