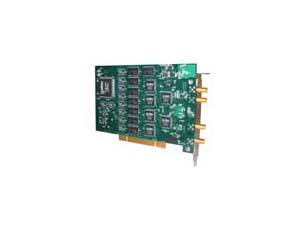

CompuGen 11G 12 Bit, 1 GS/s Analog Output (D/A) Card 12 Bit, 1 GS/s D/A and ARB Card for PCI Bus with 4M Memory Traditional waveform generators only provide simple, periodic waveforms. The circuits of today, however, require more complex and customized analog and digital stimulus signals. The CompuGen 11G and CompuGen 11G2 enable the user to generate a limitless number of analog and digital signals. The CompuGen 11G and CompuGen 11G2 generate analog output signals at a maximum D/A conversion rate of 1 billion samples per second (MS/s) with 12 bit vertical resolution (4096 levels). Arbitrary waveforms are generated by creating a digital representation of the waveform in the memory on-board the CompuGen 11G/11G2. This digital pattern is then converted into an analog signal using a high speed Digital-to-Analog Converter (DAC). 1 GHz Arbitrary Waveform Generator CG11G: 4 MegaSamples of on-board memory CG11G2: 16 MegaSamples of on-board memory 12 bit resolution 1 billion conversions per second Free software for importing and generating waveforms Software development kits for C/C++ and LabVIEW

CompuGen 11G2 12 Bit, 1 GS/s Analog Output (D/A) Card 12 Bit, 1000 MS/s D/A and ARB Card for PCI Bus with 16M Memory Traditional waveform generators only provide simple, periodic waveforms. The circuits of today, however, require more complex and customized analog and digital stimulus signals. The CompuGen 11G and CompuGen 11G2 enable the user to generate a limitless number of analog and digital signals. The CompuGen 11G and CompuGen 11G2 generate analog output signals at a maximum D/A conversion rate of 1 billion samples per second (MS/s) with 12 bit vertical resolution (4096 levels). Arbitrary waveforms are generated by creating a digital representation of the waveform in the memory on-board the CompuGen 11G/11G2. This digital pattern is then converted into an analog signal using a high speed Digital-to-Analog Converter (DAC). 1 GHz Arbitrary Waveform Generator CG11G: 4 MegaSamples of on-board memory CG11G2: 16 MegaSamples of on-board memory 12 bit resolution 1 billion conversions per second Free software for importing and generating waveforms Software development kits for C/C++ and LabVIEW

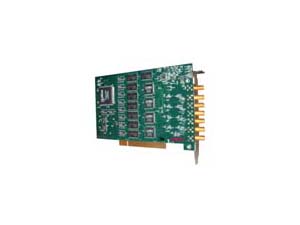

CompuGen 4300 12 Bit, 300 MS/s D/A and ARB Card for PCI Bus with 4M Memory Traditional waveform generators only provide simple, periodic waveforms. The circuits of today, however, require more complex and customized analog and digital stimulus signals. The CompuGen 4300 and CompuGen 4302 enable the user to generate a limitless number of analog and digital signals. The CompuGen 4300 and CompuGen 4302 generate analog output signals at a maximum D/A conversion rate of 300 million samples per second (MS/s) with 12 bit vertical resolution (4096 levels). Arbitrary waveforms are generated by creating a digital representation of the waveform in the memory on-board the CompuGen 4300/4302. This digital pattern is then converted into an analog signal using a high speed Digital-to-Analog Converter (DAC). The CompuGen 4300/4302 provide 4 channels of simultaneous data generation. 300 MHz Arbitrary Waveform Generator CG4300: 4 MegaSamples of on-board memory CG4302: 16 MegaSamples of on-board memory 12 bit resolution 300 million conversions per second Up to 4 channels of simultaneous data generation Free software for importing and generating waveforms Software development kits for C/C++ and LabVIEW

CompuGen 4302 12 Bit, 300 MS/s D/A and ARB Card for PCI Bus with 16M Memory Traditional waveform generators only provide simple, periodic waveforms. The circuits of today, however, require more complex and customized analog and digital stimulus signals. The CompuGen 4300 and CompuGen 4302 enable the user to generate a limitless number of analog and digital signals. The CompuGen 4300 and CompuGen 4302 generate analog output signals at a maximum D/A conversion rate of 300 million samples per second (MS/s) with 12 bit vertical resolution (4096 levels). Arbitrary waveforms are generated by creating a digital representation of the waveform in the memory on-board the CompuGen 4300/4302. This digital pattern is then converted into an analog signal using a high speed Digital-to-Analog Converter (DAC). The CompuGen 4300/4302 provide 4 channels of simultaneous data generation. 300 MHz Arbitrary Waveform Generator CG4300: 4 MegaSamples of on-board memory CG4302: 16 MegaSamples of on-board memory 12 bit resolution 300 million conversions per second Up to 4 channels of simultaneous data generation Free software for importing and generating waveforms Software development kits for C/C++ and LabVIEW

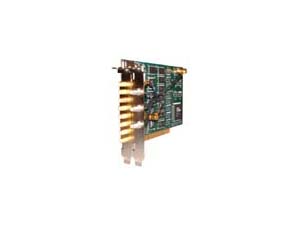

CompuGen 8150 12 Bit, 150 MS/s D/A and ARB Card for PCI Bus with 4M Memory Traditional waveform generators only provide simple, periodic waveforms. The circuits of today, however, require more complex and customized analog and digital stimulus signals. The CompuGen 8150 and CompuGen 8152 enable the user to generate a limitless number of analog and digital signals. The CompuGen 8150 and CompuGen 8152 generate analog output signals at a maximum D/A conversion rate of 150 million samples per second (MS/s) with 12-bit vertical resolution (4096 levels). Arbitrary waveforms are generated by creating a digital representation of the waveform in the memory on-board the CompuGen 8150 or CompuGen 8152. This digital pattern is then converted into an analog signal using a high speed Digital-to-Analog Converter (DAC). 150 MHz Arbitrary Waveform Generator CG8150: 4 MegaSamples of on-board memory CG8152: 16 MegaSamples of on-board memory 12 bit resolution 150 million conversions per second Up to 8 channels of simultaneous data generation Free software for importing and generating waveforms Software development kits for C/C++ and LabVIEW

CompuGen 8152 12 Bit, 150 MS/s D/A and ARB Card for PCI Bus with 16M Memory Traditional waveform generators only provide simple, periodic waveforms. The circuits of today, however, require more complex and customized analog and digital stimulus signals. The CompuGen 8150 and CompuGen 8152 enable the user to generate a limitless number of analog and digital signals. The CompuGen 8150 and CompuGen 8152 generate analog output signals at a maximum D/A conversion rate of 150 million samples per second (MS/s) with 12-bit vertical resolution (4096 levels). Arbitrary waveforms are generated by creating a digital representation of the waveform in the memory on-board the CompuGen 8150 or CompuGen 8152. This digital pattern is then converted into an analog signal using a high speed Digital-to-Analog Converter (DAC). 150 MHz Arbitrary Waveform Generator CG8150: 4 MegaSamples of on-board memory CG8152: 16 MegaSamples of on-board memory 12 bit resolution 150 million conversions per second Up to 8 channels of simultaneous data generation Free software for importing and generating waveforms Software development kits for C/C++ and LabVIEW

CompuGen 1100 - 512K 12 Bit, 80 MS/s D/A and ARB Card for ISA Bus Traditional waveform generators provide simple, periodic waveforms appropriate for audio and RF applications. The complex analog and digital circuits of today require the stimuli to be customized. CompuGen 1100 enables the user to create a large number of varying analog and digital outputs and store them for future reference. 80 MHz Arbitrary Waveform Generator 12 Bit Resolution 12.5 ns Time Resolution 80 Million Conversions per Second Up to 16 Meg On-Board Memory Up to 8 Cards in a Master/Slave System for up to 8 Simultaneous output channels CompuGen for Windows Software (CGWin) for creating and editing waveforms Software Development Kits for C/C++, MATLAB and LabVIEW

CompuGen 1100 - 1M 12 Bit, 80 MS/s D/A and ARB Card for ISA Bus Traditional waveform generators provide simple, periodic waveforms appropriate for audio and RF applications. The complex analog and digital circuits of today require the stimuli to be customized. CompuGen 1100 enables the user to create a large number of varying analog and digital outputs and store them for future reference. 80 MHz Arbitrary Waveform Generator 12 Bit Resolution 12.5 ns Time Resolution 80 Million Conversions per Second Up to 16 Meg On-Board Memory Up to 8 Cards in a Master/Slave System for up to 8 Simultaneous output channels CompuGen for Windows Software (CGWin) for creating and editing waveforms Software Development Kits for C/C++, MATLAB and LabVIEW
