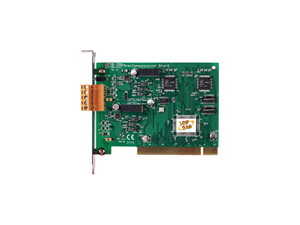

2-port FRnet communication board Introduction PC-based I/O control systems are widely used in measurement and control system applications. But sometimes it is very difficult to meet the demands of critical timing control missions. As a result of the special features of FRnet, such as real I/O synchronization and fixed scan time, FRB boards can be added to PC-based systems to give additionial PLC-like control functions, with no need to mix PC-based controllers with PLCs. The FRB-200/100 is an isolated FRnet communication board. The FRB-100 has a single FRnet port, while the FRB-200 has two FRnet ports. Each FRnet port can control a maximum of 16 communication nodes, numbered from 0 to 15. Each single node of the remote I/O module can control a maximum of 16 DI/DO channels. In other words, each FRnet port can control a maximum of 128 DI and 128 DO channels. Traditional high-channel I/O cards occupy several PC slots, such as the ICPDAS PIO-D144 or DIO-144, and the bulky cables can be difficult to handle. Several FRB boards can be combined to work together to control thousands of I/O channels. Reduced cabling, lower labor costs, easy installation and higher reliability are the major advantages of an FRnet solution. Applications Industrial Automation Remote I/O control Building Automation Parking Lot Management Specifications Communication speed: 250Kbps Cyclic Scan time: 128 input/128 output points@2.88 ms Communication distance: 400m max Wire cable: (shielded) Twisted-pair cable General Specifications Power consumption: 5V DC @ 250mA(max) Operating temperature: -25¢XC ~ +75¢XC Operating humidity: 10% ~ 90% RH, non-condensing Storage temperature: -30¢XC ~ +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Dimensions: 120 mm x 90 mm Features Reduced Wiring two-wire cabling Innovative token-stream communication technology Real-time I/O synchronization capabilities Fixed cyclic scan time for deterministic control High speed distributed I/O control capabilities Memory-mapping I/O programming Easily programmable No software overhead for protocol processing 5V DC PCI-bus add-on card

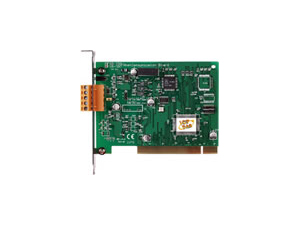

1-port FRnet communication board Introduction PC-based I/O control systems are widely used in measurement and control system applications. But sometimes it is very difficult to meet the demands of critical timing control missions. As a result of the special features of FRnet, such as real I/O synchronization and fixed scan time, FRB boards can be added to PC-based systems to give additionial PLC-like control functions, with no need to mix PC-based controlers with PLCs. The FRB-200/100 is an isolated FRnet communication board. The FRB-100 has a single FRnet port, while the FRB-200 has two FRnet ports. Each FRnet port can control a maximum of 16 communication nodes, numbered from 0 to 15. Each single node of the remote I/O module can control a maximum of 16 DI/DO channels. In other words, each FRnet port can control a maximum of 128 DI and 128 DO channels. Traditional high-channel I/O cards occupy several PC slots, such as the ICPDAS PIO-D144 or DIO-144, and the bulky cables can be difficult to handle. Several FRB boards can be combined to work together to control thousands of I/O channels. Reduced cabling, lower labor costs, easy installation and higher reliability are the major advantages of an FRnet solution. Applications Industrial Automation Remote I/O control Building Automation Parking Lot Management Specifications Communication speed: 250Kbps Cyclic Scan time: 128 input/128 output points@2.88 ms Communication distance: 400m max Wire cable: (shielded) Twisted-pair cable General Specifications Power consumption: 5V DC @ 250mA(max) Operating temperature: -25¢XC ~ +75¢XC Operating humidity: 10% ~ 90% RH, non-condensing Storage temperature: -30¢XC ~ +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Dimensions: 120 mm x 90 mm Features Reduced Wiring two-wire cabling Innovative token-stream communication technology Real-time I/O synchronization capabilities Fixed cyclic scan time for deterministic control High speed distributed I/O control capabilities Memory-mapping I/O programming Easily programmable No software overhead for protocol processing 5V DC PCI-bus add-on card

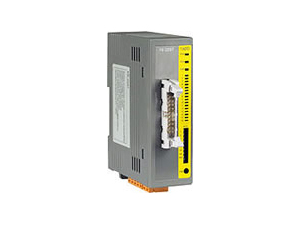

16-channel isolated digital input with 20-pin header Introduction The FR-2053/2053T/2053S has 16-channel isolated photocoupler input, while the FR-2057/2057T/2057S has 16-channel isolated photo-coupler output. The default signal connector of FR-2053 and FR-2057 is a 20-pin header. The "T" stands for screw terminal connector and the "S" stands for 3-pin shroud connector. Each 3-pin connector has one Vcc pin, one ground and one signal pin. According to different applications, the users can choose suitable modules. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC, PAC and PLC easily. Further information about the networking of FR-2053/2057; refer to literature related to I-7188EF, I-8122, FRB-100/200. Applications Industrial Automation Remote I/O control Wire-saving application Built-in Wire-saving FRnet DI/DO control Specifications 2-wire cabling: CPEV 0.9 (2P twisted-pair cable), When different cables are used, the transmission distance may change. Power consumption: 2.0 W (Max.) Operating temperature: -25¢XC to +75¢XC Operating humidity: 10% ~ 95% RH, non-condensing Storage temperature: -30¢XC to +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Weight: approximately 120g Dimensions: 99 mm x 32 mm x 83 mm Input points: 16 points Input current: less than 6mA/channel Input impedance: approximately 4.1 kΩ Digital Level 0: 3V max. Digital Level 1: 24 +/- 10% On delay time: less than 1.0ms Off delay time: less than 1.0ms Features Built-in Wire-saving FRnet DI/DO control High-speed transmission reliability Simple synchronization mechanism No software overhead on protocol processing Supporting broadcasting (1:n data transmission) Duplicating output easily Fixed I/O scan-time and I/O synchronization DIN-Rail mountable

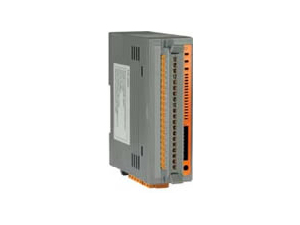

16-channel isolated digital input module with 20-pin screw terminal connector Introduction The FR-2053/2053T/2053S has 16-channel isolated photocoupler input, while the FR-2057/2057T/2057S has 16-channel isolated photo-coupler output. The default signal connector of FR-2053 and FR-2057 is a 20-pin header. The "T" stands for screw terminal connector and the "S" stands for 3-pin shroud connector. Each 3-pin connector has one Vcc pin, one ground and one signal pin. According to different applications, the users can choose suitable modules. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC, PAC and PLC easily. Further information about the networking of FR-2053/2057; refer to literature related to I-7188EF, I-8122, FRB-100/200. Applications Industrial Automation Remote I/O control Wire-saving application Built-in Wire-saving FRnet DI/DO control Specifications 2-wire cabling: CPEV 0.9 (2P twisted-pair cable), When different cables are used, the transmission distance may change. Power consumption: 2.0 W (Max.) Operating temperature: -25¢XC to +75¢XC Operating humidity: 10% ~ 95% RH, non-condensing Storage temperature: -30¢XC to +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Weight: approximately 120g Dimensions: 99 mm x 32 mm x 83 mm Input points: 16 points Input current: less than 6mA/channel Input impedance: approximately 4.1 kΩ Digital Level 0: 3V max. Digital Level 1: 24 +/- 10% On delay time: less than 1.0ms Off delay time: less than 1.0ms Features Built-in Wire-saving FRnet DI/DO control High-speed transmission reliability Simple synchronization mechanism No software overhead on protocol processing Supporting broadcasting (1:n data transmission) Duplicating output easily Fixed I/O scan-time and I/O synchronization DIN-Rail mountable

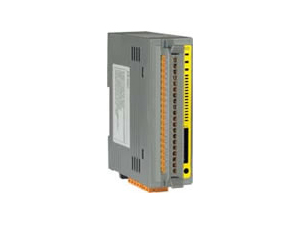

16-channel isolated digital output with 20-pin header Introduction The FR-2053/2053T/2053S has 16-channel isolated photocoupler input, while the FR-2057/2057T/2057S has 16-channel isolated photo-coupler output. The default signal connector of FR-2053 and FR-2057 is a 20-pin header. The "T" stands for screw terminal connector and the "S" stands for 3-pin shroud connector. Each 3-pin connector has one Vcc pin, one ground and one signal pin. According to different applications, the users can choose suitable modules. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC, PAC and PLC easily. Further information about the networking of FR-2053/2057; refer to literature related to I-7188EF, I-8122, FRB-100/200. Applications Industrial Automation Remote I/O control Wire-saving application Built-in Wire-saving FRnet DI/DO control Specifications 2-wire cabling: CPEV 0.9 (2P twisted-pair cable), When different cables are used, the transmission distance may change. Power consumption: 2.0 W (Max.) Operating temperature: -25¢XC to +75¢XC Operating humidity: 10% ~ 95% RH, non-condensing Storage temperature: -30¢XC to +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Weight: approximately 120g Dimensions: 99 mm x 32 mm x 83 mm Output method: Isolated type NPN transistor open collector Output points: 16 points Output current: less than 30V@100mA/channel Load voltage: 24V max Turn-on delay time: less than 1.0ms Turn-off delay time: less than 1.5ms Features Built-in Wire-saving FRnet DI/DO control High-speed transmission reliability Simple synchronization mechanism No software overhead on protocol processing Supporting broadcasting (1:n data transmission) Duplicating output easily Fixed I/O scan-time and I/O synchronization DIN-Rail mountable

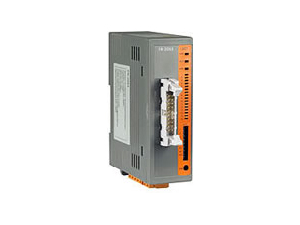

16-channel isolated digital output module with 20-pin screw terminal connector Introduction The FR-2053/2053T/2053S has 16-channel isolated photocoupler input, while the FR-2057/2057T/2057S has 16-channel isolated photo-coupler output. The default signal connector of FR-2053 and FR-2057 is a 20-pin header. The "T" stands for screw terminal connector and the "S" stands for 3-pin shroud connector. Each 3-pin connector has one Vcc pin, one ground and one signal pin. According to different applications, the users can choose suitable modules. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC, PAC and PLC easily. Further information about the networking of FR-2053/2057; refer to literature related to I-7188EF, I-8122, FRB-100/200. Applications Industrial Automation Remote I/O control Wire-saving application Built-in Wire-saving FRnet DI/DO control Specifications 2-wire cabling: CPEV 0.9 (2P twisted-pair cable), When different cables are used, the transmission distance may change. Power consumption: 2.0 W (Max.) Operating temperature: -25¢XC to +75¢XC Operating humidity: 10% ~ 95% RH, non-condensing Storage temperature: -30¢XC to +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Weight: approximately 120g Dimensions: 99 mm x 32 mm x 83 mm Output method: Isolated type NPN transistor open collector Output points: 16 points Output current: less than 30V@100mA/channel Load voltage: 24V max Turn-on delay time: less than 1.0ms Turn-off delay time: less than 1.5ms Features Built-in Wire-saving FRnet DI/DO control High-speed transmission reliability Simple synchronization mechanism No software overhead on protocol processing Supporting broadcasting (1:n data transmission) Duplicating output easily Fixed I/O scan-time and I/O synchronization DIN-Rail mountable

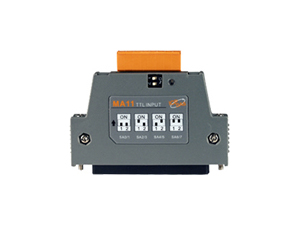

Input type MagicWire for PLC Introduction The FRnet network only requires a single hostcontroller to send a token that activates all FRnet I/O modules. Two host controllers cannot be used in the same FRnet network. The MA-11, MD-11, FRB-100/200, I-7188EF, I-8122 and some FR I/O modules can be used as FRnet host-controllers. When using an MA-11, MD-11 or FR I/O module as a host-controller, the switch or jumper should be set to the A1 position. Refer to the related user's manual or literature for detailed information. When using the FRB-2000, I-7188EF or I-8122, the switch doesn't have to be set. Specifications Communication speed: 250K bps Communication distance: 400m max Digital input channels: 32 (MD-11, MD-11M) Digital output channels: 32 (MD-12, MD-12M) Connector type: 37-pin D-sub female connector (MD-11, MD-12) 37-pin D-sub male connector (MD-11M, MD-12M) Power requirements: 12~24V Wire cable: CPEV 0.9S (2P twisted-pair wire) Power consumption: 1.2 W Dimensions: 120 mm x 90 mm Operating temperature: -25¢XC ~ +75¢XC Operating humidity: 10% ~ 90% RH, non-condensing Storage temperature: -30¢XC ~ +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Dimensions: 76 mm x 73 mm x 15 mm

Input type MagicWire for PLC Introduction The FRnet network only requires a single hostcontroller to send a token that activates all FRnet I/O modules. Two host controllers cannot be used in the same FRnet network. The MA-11, MD-11, FRB-100/200, I-7188EF, I-8122 and some FR I/O modules can be used as FRnet host-controllers. When using an MA-11, MD-11 or FR I/O module as a host-controller, the switch or jumper should be set to the A1 position. Refer to the related user's manual or literature for detailed information. When using the FRB-2000, I-7188EF or I-8122, the switch doesn't have to be set. Specifications Communication speed: 250K bps Communication distance: 400m max Digital input channels: 32 (MD-11, MD-11M) Digital output channels: 32 (MD-12, MD-12M) Connector type: 37-pin D-sub female connector (MD-11, MD-12) 37-pin D-sub male connector (MD-11M, MD-12M) Power requirements: 12~24V Wire cable: CPEV 0.9S (2P twisted-pair wire) Power consumption: 1.2 W Dimensions: 120 mm x 90 mm Operating temperature: -25¢XC ~ +75¢XC Operating humidity: 10% ~ 90% RH, non-condensing Storage temperature: -30¢XC ~ +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Dimensions: 76 mm x 73 mm x 15 mm
