Acquisition & Contrôle | Modules USB | DT9838
Caractéristiques détaillées:
DT9838 Strain-and-bridge based Measurement module
The DT9838 module is a USB strain gage measurement device intended for full, half and quarter bridge strain gage elements and bridge-based sensor assemblies, such as load cell, torque sensors, and pressure sensors. General-purpose voltage measurements are also supported. It is compatible with usb 2.0 and usb 1.1 ports.
KEY FEATURES for DT9838

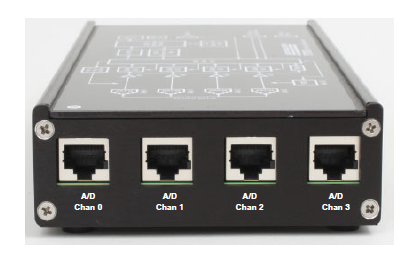

*Simultaneous measurement of four 24-bit analog input channels and one tachometer in the analog input stream
*Direct full-bridge and half-bridge support with half-bridge completion
*Quarter-bridge support with external bridge-completion resistor
*Load cell support
*Non-bridged voltage input configuration
*Programmable input and bridge configuration
*Internal bridge excitation of 0 to 10 V in 167 uV steps
*TEDS (IEEE 1451.4)sensor compatible
*Software calibration of the bridge offset and gain
*Sampling frequency from 195.3125 Hz to 52.734 KhZ
*Input range of +/- 250 Mv
*View all specifications for DT9838 series click here
*View manual for DT9838 series click here
DT9838 Strain-and-bridge based Measurement module
The DT9838 module is a USB strain gage measurement device intended for full, half and quarter bridge strain gage elements and bridge-based sensor assemblies, such as load cell, torque sensors, and pressure sensors. General-purpose voltage measurements are also supported. It is compatible with usb 2.0 and usb 1.1 ports.
KEY FEATURES for DT9838
*Simultaneous measurement of four 24-bit analog input channels and one tachometer in the analog input stream
*Direct full-bridge and half-bridge support with half-bridge completion
*Quarter-bridge support with external bridge-completion resistor
*Load cell support
*Non-bridged voltage input configuration
*Programmable input and bridge configuration
*Internal bridge excitation of 0 to 10 V in 167 uV steps
*TEDS (IEEE 1451.4)sensor compatible
*Software calibration of the bridge offset and gain
*Sampling frequency from 195.3125 Hz to 52.734 KhZ
*Input range of +/- 250 Mv
*View all specifications for DT9838 series click here
*View manual for DT9838 series click here
Spécifications:
FOR MODEL **** DT9838****
# of Analog Inputs
4 simultaneous channels
Resolution
24-bit
Max sample rate/ch analog input
52.7 kS/s /ch
Sensor
bridge-based, voltage
Ranges
+/- 250 mV
Tachometer
1
