Caractéristiques détaillées:
DT9847-3-1 USB Dynamic signal analyzer, 24 bit, 216 kHz, 3 IEPE AI, 1AO
The DT9847 series are high-accuracy, dynamic signal acquisition modules designed for sound and vibration applications. These modules are ideal for precision measurements with microphones, accelerometers and other transducers that have a large dynamic range. Common applications include audio, acoustic and vibration testing.
KEY FEATURES for DT9847-3-1

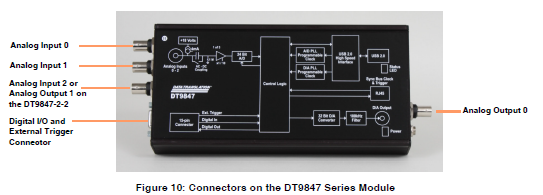

*Simultaneous analog input and analog output operations (continuous or waveform mode)

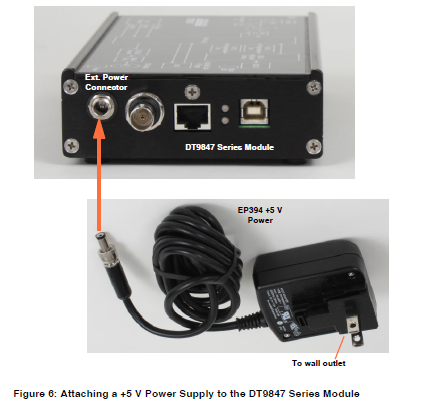

*Operates on external USB power
*Three, simultaneous 24-bit A/D converters
*Throughput rate from 1 kSamples/s to 216 kSamples/s for simultaneous, high-resolution measurements
*Input range of +/- 10V with software-selectable gains of 1 and 10 for an effective input range of +/- 10V and +/- 1V
Analog input subsystem:
*Support for IEPE (Integrated Electronic Piezoelectric) inputs, including use of a 4mA current source with 18 V compliance voltage for AC or DC coupling
*Supports a start trigger for acquiring pre-trigger samples and a reference trigger for acquiring post-trigger samples. You can specify the number of post-trigger samples to acquire before stopping the operation
*For the start trigger, supports a software-programmable trigger source (software, external digital trigger, or a positive- or negative- going analog threshold trigger on any of the analog input channels). For the threshold trigger, you can program the threshold value from -10V to +10V.
*For the reference trigger, supports an external digital trigger or a positive -or negative- going analog threshold trigger on any of the analog input channels. You can program the threshold value from -10V to + 10V
Analog output subsystem:
*one 32-bit D/A converters
*Single value, waveform, and continuous streaming output
*Programmable output rate from 30kSamples/s to 216 kSamples/s
*Output range of +/- 3 V or +/- 10V, software programmable
*Software-programmable trigger source (software-programmable trigger source (software trigger or external digital trigger) to start the analog output operation.
*Internal clock source (shared between the analog input and analog output subsystems
*Sync Bus (RJ45) connector for synchronizing acquisition on up to four DT9847 series modules
*View all specifications for DT9847 series click here
*View manual for DT9847 series click here
DT9847-3-1 USB Dynamic signal analyzer, 24 bit, 216 kHz, 3 IEPE AI, 1AO
The DT9847 series are high-accuracy, dynamic signal acquisition modules designed for sound and vibration applications. These modules are ideal for precision measurements with microphones, accelerometers and other transducers that have a large dynamic range. Common applications include audio, acoustic and vibration testing.
KEY FEATURES for DT9847-3-1
*Simultaneous analog input and analog output operations (continuous or waveform mode)
*Operates on external USB power
*Three, simultaneous 24-bit A/D converters
*Throughput rate from 1 kSamples/s to 216 kSamples/s for simultaneous, high-resolution measurements
*Input range of +/- 10V with software-selectable gains of 1 and 10 for an effective input range of +/- 10V and +/- 1V
Analog input subsystem:
*Support for IEPE (Integrated Electronic Piezoelectric) inputs, including use of a 4mA current source with 18 V compliance voltage for AC or DC coupling
*Supports a start trigger for acquiring pre-trigger samples and a reference trigger for acquiring post-trigger samples. You can specify the number of post-trigger samples to acquire before stopping the operation
*For the start trigger, supports a software-programmable trigger source (software, external digital trigger, or a positive- or negative- going analog threshold trigger on any of the analog input channels). For the threshold trigger, you can program the threshold value from -10V to +10V.
*For the reference trigger, supports an external digital trigger or a positive -or negative- going analog threshold trigger on any of the analog input channels. You can program the threshold value from -10V to + 10V
Analog output subsystem:
*one 32-bit D/A converters
*Single value, waveform, and continuous streaming output
*Programmable output rate from 30kSamples/s to 216 kSamples/s
*Output range of +/- 3 V or +/- 10V, software programmable
*Software-programmable trigger source (software-programmable trigger source (software trigger or external digital trigger) to start the analog output operation.
*Internal clock source (shared between the analog input and analog output subsystems
*Sync Bus (RJ45) connector for synchronizing acquisition on up to four DT9847 series modules
*View all specifications for DT9847 series click here
*View manual for DT9847 series click here
Spécifications:
FOR MODEL **** DT9847-3-1****
# of Analog Inputs channels
3
Resolution (analog input)
24-bit
Max sample rate
216 kS/s/ch
Sampling
simultaneous
# of analog output channels
1
Résolution (analog output)
32 bit
Speed
up to 216 kS/sch
