Automation Industrielle | controleurs programmables

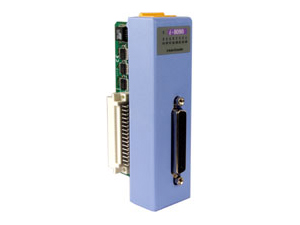

I-8090
FEATURES: 3-axis Encoder Card SPECIFICATIONS: Parallel I/O Module 3-axis, 16 bits encoder counter. 32 bits encoder counter by software. Maximum counting rate : 1M pulse/sec. Differential input A+, A-, B+, B-, C+, C-. Quadrant counting mode, CW/CCW counting mode, Pulse/Dir counting mode. 2500V optical isolation Power consumption: 3.4W
$683.00

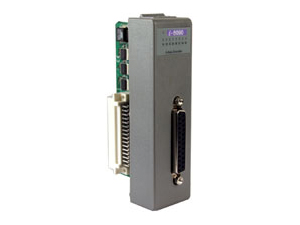

I-8090G
FEATURES: 3-axis Encoder Card SPECIFICATIONS: Parallel I/O Module 3-axis, 16 bits encoder counter. 32 bits encoder counter by software. Maximum counting rate : 1M pulse/sec. Differential input A+, A-, B+, B-, C+, C-. Quadrant counting mode, CW/CCW counting mode, Pulse/Dir counting mode. 2500V optical isolation Power consumption: 3.4W
$638.00

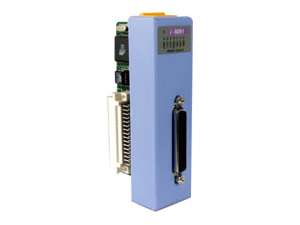

I-8091
FEATURES: 2-axis Stepping/Servo Motor Control Card SPECIFICATIONS: Parallel I/O Module 2-axis independent, simultaneous stepping motor control / servo motor control (pulse input type). Maximum pulse rate: 1Mpps. Maximum step counts: 2^ 32 -1 steps. DOS driver. Embedded CPU. Command type interface. 2-axis linear, 2-axis circular interpolation. Automatic trapezoidal acceleration / deceleration. Output pulse modes : CW/CCW or pulse/direction. Output polarity can be programmable. 2500Vrms optical isolated signal output. 3 optical isolated digital inputs per axis for limit switches. programmable limit switch initial condition as normal open(N.O.) or normal close(N.C.). Power consumption: 3.9W
$632.00
I-8091G
FEATURES: 2-axis Stepping/Servo Motor Control Card SPECIFICATIONS: Parallel I/O Module 2-axis independent, simultaneous stepping motor control / servo motor control (pulse input type). Maximum pulse rate: 1Mpps. Maximum step counts: 2^ 32 -1 steps. DOS driver. Embedded CPU. Command type interface. 2-axis linear, 2-axis circular interpolation. Automatic trapezoidal acceleration / deceleration. Output pulse modes : CW/CCW or pulse/direction. Output polarity can be programmable. 2500Vrms optical isolated signal output. 3 optical isolated digital inputs per axis for limit switches. programmable limit switch initial condition as normal open(N.O.) or normal close(N.C.). Power consumption: 3.9W
$593.00

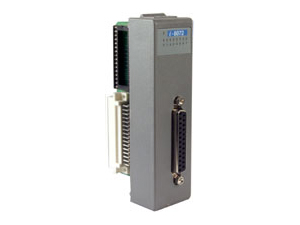

I-8072
Printer Port & Xsocket Card SPECIFICATIONS: Support Printer port Support two Xsocket Power consumption:0.3W
$213.00

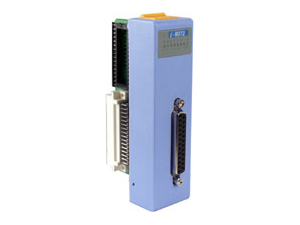

I-8072G
Printer Port & Xsocket Card Support Printer port Support two Xsocket Power consumption:0.3W
$215.00

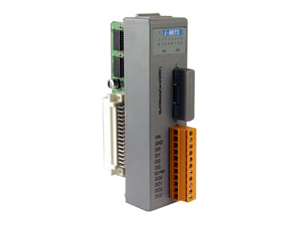

I-8073
FEATURES: MultiMediaCard(MMC) Module SPECIFICATIONS: Storage Device MultiMediaCard socket : 1 Open-collector output :100 mA / 30V max Digital input Channels: 4 Logical level 0 : +1V max. Logical level 1 : +3.5V~30V Digital output channels : 4 O.C. output : 125mA/channel Analog Input Channel: 1 Resolution: 1 2 -bit Sampling rate : 5.5 KHz Input Type: Differential Input Range: +/-5V or 0 ~ 5V Power Consumption: 1 W
$188.00

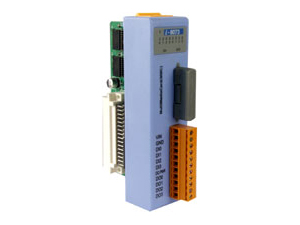

I-8073G
FEATURES: MultiMediaCard(MMC) Module SPECIFICATIONS: Storage Device MultiMediaCard socket : 1 Open-collector output :100 mA / 30V max Digital input Channels: 4 Logical level 0 : +1V max. Logical level 1 : +3.5V~30V Digital output channels : 4 O.C. output : 125mA/channel Analog Input Channel: 1 Resolution: 1 2 -bit Sampling rate : 5.5 KHz Input Type: Differential Input Range: +/-5V or 0 ~ 5V Power Consumption: 1 W
$187.00
