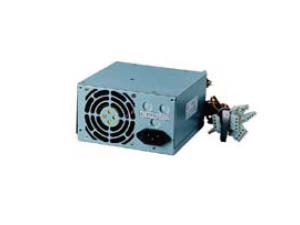

ACE-840A-RS 100% Meet RoHS Compliance Complied with ATX and ATX12V standard Output over voltage, short circuit, and over current protection High efficiency and reliability ACE-840A-RS: 400W AC-DC PS/2 type ATX Power Supply, AC select switch   Input Voltage 95 ~ 132VAC 180 ~ 264VAC Auto Range Rated load +5V +12V -12V -5V +3.3V +5Vsb 2A 0.2A 0 0 0.2A 0 Peak load +5V +12V -12V -5V +3.3V +5sb 40A 0.8A 0.8A 0.3A 28A 2A Operating Temperature: 0 ~ 50˚C (Operating) MTBF: 100,000 hrs

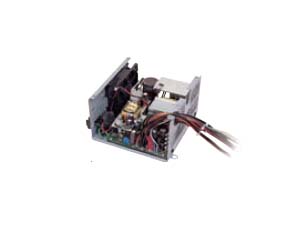

ACE-828A-RS 280W AC-DC PS/2 type ATX Power Supply 100% Meet RoHS Compliance High efficiency Full functional over voltage / current protection Operating Temperature: 0 ~ 40˚C (Operating) MTBF: ACE-828A-RS 110,000hrs ACE-828C-RS 120,000hrs ACE-828V-RS 97,000hrs ACE-828T-RS 110,000hrs   Input Voltage 90 ~ 130VAC, 180 ~ 260VAC Auto Range Rated load +5V +12V -12V -5V +3.3V +5Vsb 2 0.1 0 0 0.2 0 Peak load +5V +12V -12V -5V +3.3V +5sb 25 10 0.5 0.5 8 0.72 Operating Temperature: 0 ~ 50˚C (Operating) MTBF: 100,000 hrs

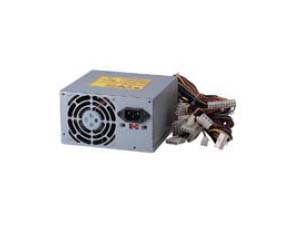

ACE-828C-RS 280W AC-DC PS/2 type ATX Power Supply 100% Meet RoHS Compliance High efficiency Full functional over voltage / current protection Operating Temperature: 0 ~ 40˚C (Operating) MTBF: ACE-828A-RS 110,000hrs ACE-828C-RS 120,000hrs ACE-828V-RS 97,000hrs ACE-828T-RS 110,000hrs Input Voltage 18 ~ 32VDC Rated load +5V +12V -12V -5V +3.3V +5Vsb 2A 0.1A 0 0 0.2A 0 Peak load +5V +12V -12V -5V +3.3V +5sb 25A 7A 1 0.5A 8A 0.72A Operating Temperature: 0 ~ 40˚C (Operating) MTBF: 120,000 hrs

ACE-828V-RS 250W 12V DC input PS/2 type ATX Power Supply 100% Meet RoHS Compliance High efficiency Full functional over voltage / current protection Operating Temperature: 0 ~ 40˚C (Operating) MTBF: ACE-828A-RS 110,000hrs ACE-828C-RS 120,000hrs ACE-828V-RS 97,000hrs ACE-828T-RS 110,000hrs Input Voltage 9 ~ 16VDC Rated load +5V +12V -12V -5V +3.3V +5Vsb 2A 0.1A 0 0 0.2A 0 Peak load +5V +12V -12V -5V +3.3V +5sb 25A 8A 1A 0.5A 8A 0.72A Operating Temperature: 0 ~ 40˚C (Operating) MTBF: 97,000 hrs

ACE-828T-RS 250W -48V DC input PS/2 type ATX Power Supply 100% Meet RoHS Compliance High efficiency Full functional over voltage / current protection Operating Temperature: 0 ~ 40˚C (Operating) MTBF: ACE-828A-RS 110,000hrs ACE-828C-RS 120,000hrs ACE-828V-RS 97,000hrs ACE-828T-RS 110,000hrs Input Voltage -40~ -72VDC Rated load +5V +12V -12V -5V +3.3V +5Vsb 2A 0.1A 0 0 0 0 Peak load +5V +12V -12V -5V +3.3V +5sb 25A 7A 1A 0.5A 8A 0.72A Operating Temperature: 0 ~ 40˚C (Operating) MTBF: 110,000 hrs

ACE-832AP-RS 300W AC-DC PS/2 type ATX Power Supply, with PFC Complied with ATX and ATX12V standard Output over voltage, short circuit, and over current protection Full functional over voltage / current protection Input Voltage 95 ~ 132VAC,180 ~ 264VAC Auto Range Rated load +5V +12V -12V -5V +3.3V +5Vsb 0.5A 0 0 0 0.3A 0 Peak load +5V +12V -12V -5V +3.3V +5sb 30A 15A 0.8A 0.3 28A 2 Operating Temperature: 0 ~ 50˚C (Operating) MTBF: 100,000 hrs

ACE-A130B 300W AC-DC PS/2 ATX Power Supply with ErP/PFC, Meet 80 PLUS (Bronze Input Voltage 90 ~ 264VAC Rated load +5V +12V1 +12V2 -12V -5V +3.3V +5Vsb 0.5A 0.5A 0.5A 0 0 0.3A 0 Peak load +5V +12V1 +12V2 -12V -5V +3.3V +5sb 16A 17A 17A 0.3A 0.2A 19A 3 Operating Temperature: -5 ~ 50˚C (Operating) MTBF: 100,000 hrs

ACE-832AP-S-RS 300W AC-DC PS/2 type ATX Power Supply, with PFC & on/off switch Complied with ATX and ATX12V standard Output over voltage, short circuit, and over current protection Full functional over voltage / current protection Input Voltage 90 ~ 264VAC Full Range Rated load +5V +12V -12V -5V +3.3V +5Vsb 0.1A 0 0 0 0.3 0 Peak load +5V +12V -12V -5V +3.3V +5sb 30 15 0.8A 0.3A 28 2 Operating Temperature: 0 ~ 50˚C (Operating) MTBF: 5,000 hrs
