6U CompactPCI Intel Celeron/Pentium III CPU Module With VGA(SM721 cgipset and 4MB VRAM), Triple LAN, Ultra II Wide SCSI, CompactFlash and 4 USB Interfaces CPUSocket370 FC-PGA socket supports Intel Celeron/Pentium III up to 1.3GHzFSB66/100/133MHzCache256KB for Pentium III (100/133MHz); 128K for Celeron (66/100MHz)ChipsetIntel 815E B-stepping with ICH2 chipsetsBIOSAward BIOSMemoryThree 168-pin DIMM sockets support up to 512MB un-buffered SDRAM, PC-100/133 supportedIDE InterfaceOne 44-pin (primary) EIDE connector on front CPU module, supports on-board 2.5" notebook size HDD or flash disk-Two 40-pin EIDE conectors on rear transition module, PIO Mode3/4 and Ultra DMA/33 supportedSuper I/OWinbond W83627HF (or compatible)Parallel PortTwo Bi-directional SPP/EPP/ECP modes parallel ports (Primary port on front CPU module, secondary port on rear transition module)FDD InterfaceOne FDD interface by J3 rear I/O supports two floppy frives (360KB, 720KB, 1.2MB, 1.44MB, 2.88MB.) another 34-pin FDD interface on rear I/O transition moduleSerial PortsTwo 16C550 UARTs compatible RS-232 COM ports on front CPU module. (Expendable one 16C550 UARTs compatible one RS-232 and one RS-232/422/485 selectable serial ports by using of rear transition module)USB InterfaceFour USB ports, two ports on front CPU module, another two ports on rear I/O transition module. (USB Specification Rev. 1.1 compliant)Watch-dog TimerProgrammable I/O port 2Eh and 2Fh to configure watch-dog timer, 1~255 min./sec. timerHardware MonitoringWinbond W83782D built-in W83627HF, monitors CPU temperatures/fan/system temperatures/DC VoltagesDisplay(CPCI-6780-02)-AGP-bus VGA/LCD controller SMI Lynx3DM SM721, built-in 4M VRAM-128-bit, single clock cycle 2D drawing engine-High performance, power managed 3D acceleration engine-AGP 2X, ACPI and VESA compliant-1600x1200 resolution (driver dependent)-Supports simultaneous display and dual display for VGA and LCD, RAMDAC Latch-up protectionLANTwo Intel 82559 chipsets with two RJ-45 LAN ports on front CPU module, 10BaseT/100BaseTX Ethernet (Another LAN port on rear I/O transition module with ICH2 controller)SCSI(CPCI-6780-01/02 and CPCI6780RS rear I/O module are required)LSI (SYMBIOS) 53C859 Ultra II Wide SCSI controller featuring LVD by J4 rear I/OFlash Disk Interface-CompactFlash type-II socket on front CPU module by removable transition daughter board-On-board housing for 2.5" flash diskon front CPU module-DiskOnModule by 40-pin IDE port of rear I/O transition moduleMechanical6U, 8HP wide with 233mm X 160mm X 40.6mm (9.17" X 6.30" X 1.60"), including 2.5" HDDFront Panel LEDs and SwitchPower status/IDE activity/LAN/SCSI/LVD/SE LED indicators and system reset switchOperating Temperature0 to 60 C (32 to 140 F)Storage Temperature:-40 to 80 CCertificationCE, FCC, HALT (temperature and vibration stress)

Single Channel Evaluation Board, with Screw Terminal and Cold Junction Sensor

20 ohm Current Sense Resistor, used with 5B series

6B Series User's Manual

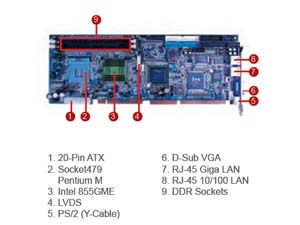

PCI-855VE2M-LF PCI Bus Socket479 on Intel 855GME base Pentium M Half Size CPU card, equips with VGA/18-bit LVDS, Dual LAN (includes 1 Giga), DDR SODIMM, CompactFlash and EPCI interfaces.

PCI-855VEM-LF PCI-855VEM-LF: Same as PCI-855VE2M-LF, equips with ICH4 10/100 LAN only PCI Bus Socket479 on Intel 855GME base Pentium M Half Size CPU card, equips with VGA/18-bit LVDS, Dual LAN (includes 1 Giga), DDR SODIMM, CompactFlash and EPCI interfaces.

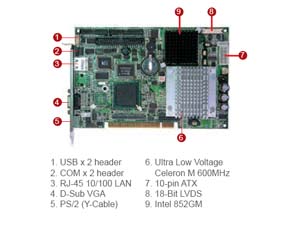

PCI-852VEM-LF PCI Bus uFCBGA on Intel 852GM base Celeron M Half Size CPU card, equips with on board Ultra Low Voltage Celeron M 600MHz CPU, VGA/18-bit LVDS, LAN, DDR SODIMM, CompactFlash and EPCI interfaces (Note: L2 cache is not available on ULV Celeron M 600MHz CPU).

WSB-Q354
