High Profile 576MB DiskOnChip CompatibilityDiskOnChip 2000 DIP is pinout and s/w compatible with 8M byte DiskOnChip Millennium.Host O/S SupportWindows CE, Windows XP, VxWorks, Linux, QNX, DOS and more.Capacity16 Mbytes - 1 GbytesPerformanceSustained Read Speed: 1.4 Mbytes/secSustained Write Speed: 500 Kbytes/secBurst Transfer Read Rate: 5 Mbytes/secBurst Transfer Write Rate: 5 Mbytes/secPackage Type32-pin DIP.Dimensions in MillimetersLow profile: 43.75 x 18.10 x 5.80High profile: 45.60 x 18.80 x 13.50Current Consumption----------------------------------------------- 3.3V 5VStand-by current - Low Profile ------40µA 60µAStand-by current - High Profile ----- 120µA 240µAActive Supply Current ------------------ 30mA 40mASupply Voltage3.3V or 5VOperating Temperature0￠XC to +70￠XC (Commercial)-40￠XC to +85￠XC (Extended)Storage Temperature-55￠XC to +100￠XC (Commercial)Humidity10% - 90% relative, non-condensingEDC/ECCThe enhanced Reed-Solomon EDC/ECC logic provides the following detection and correction capability for each 512-byte block of data: Corrects up to two 10-bit symbols, including two random bit errorsCorrects single bursts up to 11 bitsDetects single bursts up to 31 bits and double bursts up to 11 bitsDetects up to 4 random bit errors

High Profile 768MB DiskOnChip CompatibilityDiskOnChip 2000 DIP is pinout and s/w compatible with 8M byte DiskOnChip Millennium.Host O/S SupportWindows CE, Windows XP, VxWorks, Linux, QNX, DOS and more.Capacity16 Mbytes - 1 GbytesPerformanceSustained Read Speed: 1.4 Mbytes/secSustained Write Speed: 500 Kbytes/secBurst Transfer Read Rate: 5 Mbytes/secBurst Transfer Write Rate: 5 Mbytes/secPackage Type32-pin DIP.Dimensions in MillimetersLow profile: 43.75 x 18.10 x 5.80High profile: 45.60 x 18.80 x 13.50Current Consumption----------------------------------------------- 3.3V 5VStand-by current - Low Profile ------40µA 60µAStand-by current - High Profile ----- 120µA 240µAActive Supply Current ------------------ 30mA 40mASupply Voltage3.3V or 5VOperating Temperature0￠XC to +70￠XC (Commercial)-40￠XC to +85￠XC (Extended)Storage Temperature-55￠XC to +100￠XC (Commercial)Humidity10% - 90% relative, non-condensingEDC/ECCThe enhanced Reed-Solomon EDC/ECC logic provides the following detection and correction capability for each 512-byte block of data: Corrects up to two 10-bit symbols, including two random bit errorsCorrects single bursts up to 11 bitsDetects single bursts up to 31 bits and double bursts up to 11 bitsDetects up to 4 random bit errors

DiskOnChip Millennium 8MB Compatibility:Full hard disk emulationHost O/S Support:WinCE, WinNT/98/2000, VxWorks, Linux, QNX,pSOS, FreeBSD, DOS and moreCapacity:8MBPackage Type:Standard 32-pin DIP PackageDimension in mm:42.5 x 15.24 x 4.8Supply Voltage:5V only(single supply)Operating Temperature:0 to 70 degrees C (32 to 158 degrees F )Storage Temperature:-55 to 150 degrees CRelative Humidity:10% to 90%, non-condensing

16MB DiskOnChip Flash Disk Chip (TSOP) protection and security-enabling features for data and code Proprietary TrueFFS® technology for full hard-disk Emulation, high data reliability and maximum flash lifetime Device cascade options for up to 128MByte (1Gbit) capacity Small form factors: 48-pin TSOP-I and 69-ball BGA NAND-based flash technology that enables high density and small die size Single-die chip: 16MByte and 32MByte, dual-die chip: 64MByte Exceptional read, write and erase performance Configurable for 8/16/32-bit bus interface Programmable eXecute In Place (XIP) Boot Block Data integrity with Reed-Solomon-based Error Detection Code/Error Correction Code (EDC/ECC) Deep Power-Down mode for reduced power consumption Low voltage: Core – 3V, I/O – 1.8V/3V auto-detect (16MByte device) Software tools for programming, duplicating, testing and debugging Support for all major OSs, including: Symbian OS, VxWorks, Windows CE, Linux, pSOS and QNX

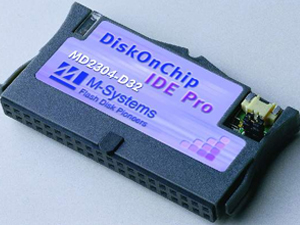

40-pin IDE Flash Disk Module IDE Modes: PIO modes 0-4 Performance Host Data Transfer Rate (Max): 16.6MB/sec Power Requirements +5V(+/-10%) single power only; 55mA(max.) with active mode, 0.18mA(max.) with sleep/idle mode Operating Temperature: 0 to +70 degrees C (32 to 158 degrees F) Storage Temperature -50 to +150 degrees C Capacity and Packaging Available in 16 to 128MB of capacities and for 40-pin IDE connector System Compatibility Devices support the ATA-4 Attachment, (without DMA support) for Disk Drives Standard. Dimensions in mm 56.3 x 30.6 x 6.0 (L x W x H)

40-pin IDE Flash Disk Module IDE Modes: PIO modes 0-4 Performance Host Data Transfer Rate (Max): 16.6MB/sec Power Requirements +5V(+/-10%) single power only; 55mA(max.) with active mode, 0.18mA(max.) with sleep/idle mode Operating Temperature: 0 to +70 degrees C (32 to 158 degrees F) Storage Temperature -50 to +150 degrees C Capacity and Packaging Available in 16 to 128MB of capacities and for 40-pin IDE connector System Compatibility Devices support the ATA-4 Attachment, (without DMA support) for Disk Drives Standard. Dimensions in mm 56.3 x 30.6 x 6.0 (L x W x H)

M-System High Performance 3.5" Ultra Wide SCSI Flash Disk 256MB to 10.2GB Capacity Standard 3.5" form factor with 146.1 x 101.5 x 25.4 in mm (L x W x H) Industry Standard SCSI II, SCSI III and CCS (Common Command Set); ANSI SCSI Standard X3.131-1994 40MB/sec. burst read/ write rate (Ultra/Wide); 28.5MB/sec. sustained read rate; 23.5MB/sec. sustained write rate 68-pin and SCA II 80-pin connectors Built-in TrueFFS Technology +5V DC (?V5%) input and less than 3.0 W (typical) power consumption 0 to +70 degrees C commercial More than 2,000,000 hours MTBF Superior Endurance by using Dynamic Wear-Leveling Ensuring Data Reliability Under Unstable Power Conditions 5 Years Warranty

2.5" High Performance SCSI/IDE HDD Optional with 3 formats in height Standard 2.5" Form Factor with 100.2 x 69.8 x 17.0 in mm (L x W x H) Optional 12mm height with 100.2 x 69.8 x 12.0 in mm (L x W x H) Optional 8mm height with 100.2 x 69.8 x 8.0 in mm (L x W x H) 64 to 4096MB capacity ATA-III standard interface (ANSI X3T10/2008D) with PIO 0-4; DMA 0-2 ATA modes Less tham 0.1ms access and track to track seek time; 16.7MB/sec burst read and write rate; 3.6MB/sec sustained read rate; 3.4MB/sec sustained write rate +5V DC (+/-5%) input and Max. 2.75W power consumption (capacities and modes dependant) 0 to +70 degrees C commercial 5,880,000 hours MTBF (128MB at British Telecom Model GB 25C) Built-in TrueFFS technology Superior Endurance by using Dynamic Wear-leveling Ensuring data reliability under unstable power conditions Support SMART (Self-monitoring, Analysis and Reporting Technology) command 5 Years Warranty
