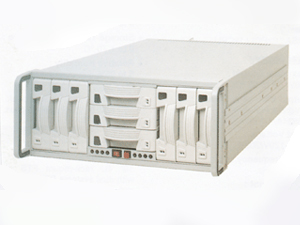

19" 4U Rack Mount Fault Tolerant Disk Array Enclosure Construction:Heavy-duty steelDrive Bays:Nine 5.25" HDD drive bays, 6 horizontal ones and3 vertical onesCooling:Three sets 12cm ball bearing cooling fansbetween RAID devices and system (another withinpower supply unit)KBD Connector:One AT KBD connector on the rear panelOptional Backplane:14-slot PICMG single system;13-slot PICMG dual systemIndicators:8 LEDs for HDD and power ON/OFF switchSwitches:Reset and power ON/OFFPower Supply:ACE-C232 230W AT manual-switch redundantpower supplyDimension in mm:482.1(W) x 177(H) x 638(D) (19" x 7" x 25.1").Weight: 23KG (Net)

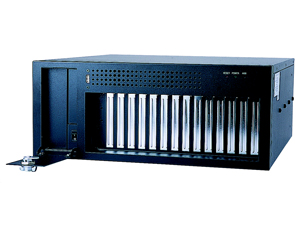

4U 14-slot rackmount Black chassis with ACE-925A power supply 4U height 19" Rack mounting chassisFront panel with lockable door to protect the running systemBracket area is located in the front for easy accessto the cablesOne USB port on front panelDrive Bays:RACK-814: - 1 x 3.5" FDD, 1 x 5.25" Drive, 1 x 3.5"HDDThree hot-removable 8cm cooling fansDesigned with anti-vibration card clamp to keepingsystem stableSupports ATX form factor PC motherboard(RACK-814)Supports backplane :BP-14S,BP-14SD,PCI-13SD,PCI-14S,PCI-14S2,PCI-14S3, PX-14S5,IP-13SD,IP-14S,IPX-13S,PCIAGP-13S2,PCIAGP-13S3,PXAGP-12S2,PXAGP-13S,PXAGP-13S3Supports power supply: PS/2 size AT/ATX PSUOptional rack-mount slide: 24" or 18"Vibration:5~17Hz, 0.1" double amplitude displacement17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors:Black (PANTONE Black C) or White (PANTONE 413C)Dimensions:431(W) x 176(H) x 465.4(D)mm; (17" x 6.9" x 18.3")Net/GW (kg): 13/18

4U 14-slot rackmount White chassis with ACE-925A power supply 4U height 19" Rack mounting chassisFront panel with lockable door to protect the running systemBracket area is located in the front for easy accessto the cablesOne USB port on front panelDrive Bays:RACK-814: - 1 x 3.5" FDD, 1 x 5.25" Drive, 1 x 3.5"HDDThree hot-removable 8cm cooling fansDesigned with anti-vibration card clamp to keepingsystem stableSupports ATX form factor PC motherboard(RACK-814)Supports backplane :BP-14S,BP-14SD,PCI-13SD,PCI-14S,PCI-14S2,PCI-14S3, PX-14S5,IP-13SD,IP-14S,IPX-13S,PCIAGP-13S2,PCIAGP-13S3,PXAGP-12S2,PXAGP-13S,PXAGP-13S3Supports power supply: PS/2 size AT/ATX PSUOptional rack-mount slide: 24" or 18"Vibration:5~17Hz, 0.1" double amplitude displacement17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors:Black (PANTONE Black C) or White (PANTONE 413C)Dimensions:431(W) x 176(H) x 465.4(D)mm; (17" x 6.9" x 18.3")Net/GW (kg): 13/18

4U ATX MB rackmount Green chassis with ACE-828A power supply 4U height 19" Rack mounting chassisPlastic front panel with lockable door to protect the running systemTwo reset switches for dual system applicationsAT type KBD connector on front panel with cap protectionDrive Bays: -2 x 3.5" FDD - 2 x 5.25" DriveOne 12cm cooling fan with removable filterDesigned with anti-vibration card clamp to keep system stableSupports ATX form factor PC motherboardSupports power supply: PS/2 size ATX PSUOptional Sliding Rails Kit: 24" or 18"Vibration:5 ~ 17Hz, 0.1" double amplitude displacement 17 ~ 640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Industrial Green (PANTONE 417C) or White (PANTONE 413C)Dimensions: 431(W) x 176(H) x 433(D)mm; (17" x 6.9" x 17")Net/GW (kg): 11/14

4U ATX MB rackmount White chassis with ACE-828A power supply 4U height 19" Rack mounting chassisPlastic front panel with lockable door to protect the running systemTwo reset switches for dual system applicationsAT type KBD connector on front panel with cap protectionDrive Bays: -2 x 3.5" FDD - 2 x 5.25" DriveOne 12cm cooling fan with removable filterDesigned with anti-vibration card clamp to keep system stableSupports ATX form factor PC motherboardSupports power supply: PS/2 size ATX PSUOptional Sliding Rails Kit: 24" or 18"Vibration:5 ~ 17Hz, 0.1" double amplitude displacement 17 ~ 640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Industrial Green (PANTONE 417C) or White (PANTONE 413C)Dimensions: 431(W) x 176(H) x 433(D)mm; (17" x 6.9" x 17")Net/GW (kg): 11/14

4U 14-slot rackmount Black chassis with ACE-828A power supply 4U height 19" Rack mounting chassisFront panel with lockable door to protect the running systemTwo reset switches for dual system applicationsAT type KBD connector on front panel with key-lockThe Bays : 1 x 3.5" FDD 1 x 5.25" Drive 1 x 3.5" HDDTwo 8cm cooling fans with removable filterDesigned with an anti-vibration card clamp that keep the system stableSupports power supply: PS/2 size ATX PSUOptional rack-mount slide: 24" or 18"Vibration :5~17Hz, 0.1" double amplitude displacement 17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Black (PANTONE Black C) or White (PANTONE 413C)Dimensions: 431(W) x 176(H) x 413(D)mm; (17" x 6.9" x 16.3")Net/GW (kg): 12/15

4U 14-slot rackmount White chassis with ACE-828A power supply 4U height 19" Rack mounting chassisFront panel with lockable door to protect the running systemTwo reset switches for dual system applicationsAT type KBD connector on front panel with key-lockThe Bays : 1 x 3.5" FDD 1 x 5.25" Drive 1 x 3.5" HDDTwo 8cm cooling fans with removable filterDesigned with an anti-vibration card clamp that keep the system stableSupports power supply: PS/2 size ATX PSUOptional rack-mount slide: 24" or 18"Vibration :5~17Hz, 0.1" double amplitude displacement 17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Black (PANTONE Black C) or White (PANTONE 413C)Dimensions: 431(W) x 176(H) x 413(D)mm; (17" x 6.9" x 16.3")Net/GW (kg): 12/15

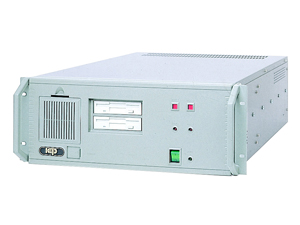

4U 20-slot rackmount chassis with ACE-935AL ATX power supply 4U height 19" Rack mounting chassisTwo set of reset switches & HDD indicators for dual system applicationsPlastic front panelsAT type KBD connector on front panel with cap protectionDrive Bays: 2 x 3.5" FDD and 2 x 3.5" HDDOne 8cm and one 12cm cooling fans with filterDesigned with anti-vibration card clamp to keep system stableSupports power supply: PS/2 size ATX PSUOptional rack-mount slide : 24" or 30"Vibration:5~17Hz, 0.1" double amplitude displacement 17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Color: White (PANTONE 413C)Dimensions: 431(W) x 176(H) x 573(D)mm; (17" x 6.9" x 22.6")Net/GW (kg): 12/17
