Ordinateurs Industriels | Chassis monté en rack
RACK-200G /ACE-920A
2U rackmount Green chassis with ACE-920A power supply 2U height 19" Rack mounting chassisPlastic front panelDrive Bays :RACK-200:2 "3.5"HDDOne 8cm cooling fan with filterAT type KBD connector on front panelSupports backplane: BP-5SD, PCI-5SD3, PCI-5SD5, PCI-5SD6, PCI-6SR, IP-5SD3, IP-5SD5Supports power supply: PS/2 size AT/ATX power supply (ACE-93x/92x/916 series and ACE-828 series)Vibration: 5~17Hz, 0.1" double amplitude displacement 17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Industrial Green (PANTONE 417C) or White (PANTONE 413C)Dimensions:RACK-200: 431(W)x88(H)x454(D)mm; (17"x3.5"x17.9")Net/GW (kg): 9/10(RACK-200)
Appelez-nous
RACK-200W/ACE-920A
2U rackmount White chassis with ACE-920A power supply 2U height 19" Rack mounting chassisPlastic front panelDrive Bays :RACK-200:2 "3.5"HDDOne 8cm cooling fan with filterAT type KBD connector on front panelSupports backplane: BP-5SD, PCI-5SD3, PCI-5SD5, PCI-5SD6, PCI-6SR, IP-5SD3, IP-5SD5Supports power supply: PS/2 size AT/ATX power supply (ACE-93x/92x/916 series and ACE-828 series)Vibration: 5~17Hz, 0.1" double amplitude displacement 17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Industrial Green (PANTONE 417C) or White (PANTONE 413C)Dimensions:RACK-200: 431(W)x88(H)x454(D)mm; (17"x3.5"x17.9")Net/GW (kg): 9/10(RACK-200)
Appelez-nous
RACK-210G/ACE-920A
2U rackmount Green chassis with ACE-920A power supply 2U height 19" Rack mounting chassisPlastic front panelDrive Bays :RACK-210:1 "5.25"Drive,1 "3.5"HDD,1 "3.5"FDDOne 8cm cooling fan with filterAT type KBD connector on front panelSupports backplane: BP-5SD, PCI-5SD3, PCI-5SD5, PCI-5SD6, PCI-6SR, IP-5SD3, IP-5SD5Supports power supply: PS/2 size AT/ATX power supply (ACE-93x/92x/916 series and ACE-828 series)Vibration: 5~17Hz, 0.1" double amplitude displacement 17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Industrial Green (PANTONE 417C) or White (PANTONE 413C)Dimensions:RACK-210: 431(W)x88(H)x477(D)mm; (17"x3.5"x18.8")Net/GW (kg): 8/11(RACK-210)
$317.00
RACK-210W/ACE-920A
2U rackmount White chassis with ACE-920A power supply 2U height 19" Rack mounting chassisPlastic front panelDrive Bays :RACK-210:1 "5.25"Drive,1 "3.5"HDD,1 "3.5"FDDOne 8cm cooling fan with filterAT type KBD connector on front panelSupports backplane: BP-5SD, PCI-5SD3, PCI-5SD5, PCI-5SD6, PCI-6SR, IP-5SD3, IP-5SD5Supports power supply: PS/2 size AT/ATX power supply (ACE-93x/92x/916 series and ACE-828 series)Vibration: 5~17Hz, 0.1" double amplitude displacement 17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Industrial Green (PANTONE 417C) or White (PANTONE 413C)Dimensions:RACK-210: 431(W)x88(H)x477(D)mm; (17"x3.5"x18.8")Net/GW (kg): 8/11(RACK-210)
$340.00

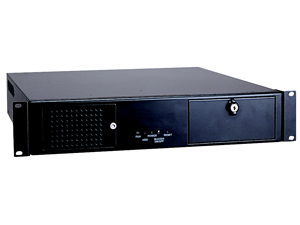

RACK-220AB /ACE-920A
2U rackmount Black chassis with ACE-920A power supply 2U height 19" Rack mounting chassisDesigned with fan fault detecting system Front panel locking door system protects disk access and power on/off switchesDrive Bays:1 x 3.5" FDD; 1 x 5.25" Drive; 1 x 3.5" HDDOne 8cm cooling fan with removable filterOptional backplane:BP-5SD, PCI-5SD3, PCI-5SD5, PCI-5SD6, PCI-6SR, IP-5SD3,IP-5SD5Vibration:5 ~ 17Hz, 0.1" double amplitude displacement17 ~ 640Hz, 1.5G acceleration peak to peakShock:10G acceleration peak to peak (11msColors:Black (PANTONE Black C) or White (PANTONE 413C)Dimensions:431(W) x 88(H) x 473(D)mm; (17" x 3.5" x 18.6")Net/GW (kg): 9/12
Appelez-nous
RACK-220AW/ACE-920A
2U rackmount White chassis with ACE-920A power supply 2U height 19" Rack mounting chassisDesigned with fan fault detecting system Front panel locking door system protects disk access and power on/off switchesDrive Bays:1 x 3.5" FDD; 1 x 5.25" Drive; 1 x 3.5" HDDOne 8cm cooling fan with removable filterOptional backplane:BP-5SD, PCI-5SD3, PCI-5SD5, PCI-5SD6, PCI-6SR, IP-5SD3,IP-5SD5Vibration:5 ~ 17Hz, 0.1" double amplitude displacement17 ~ 640Hz, 1.5G acceleration peak to peakShock:10G acceleration peak to peak (11msColors:Black (PANTONE Black C) or White (PANTONE 413C)Dimensions:431(W) x 88(H) x 473(D)mm; (17" x 3.5" x 18.6")Net/GW (kg): 9/12
$293.00
RACK-224AB/ACE-832A
2U rackmount Black chassis with ACE-832Apower supply 2U height 19" Rack mounting chassisDesigned with fan fault detecting system Front panel locking door system protects disk access and power on/off switchesDrive Bays:1 x 3.5" FDD; 1 x 5.25" Drive; 1 x 3.5" HDDOne 8cm cooling fan with removable filterOptional backplane:PCI64-5SD 64-bit backplaneVibration:5 ~ 17Hz, 0.1" double amplitude displacement17 ~ 640Hz, 1.5G acceleration peak to peakShock:10G acceleration peak to peak (11msColors:Black (PANTONE Black C) or White (PANTONE 413C)Dimensions:431(W) x 88(H) x 473(D)mm; (17" x 3.5" x 18.6")Net/GW (kg): 9/12
Appelez-nous
RACK-224AW/ACE-832A
2U rackmount White chassis with ACE-832A power supply 2U height 19" Rack mounting chassisDesigned with fan fault detecting system Front panel locking door system protects disk access and power on/off switchesDrive Bays:1 x 3.5" FDD; 1 x 5.25" Drive; 1 x 3.5" HDDOne 8cm cooling fan with removable filterOptional backplane:PCI64-5SD 64-bit backplaneVibration:5 ~ 17Hz, 0.1" double amplitude displacement17 ~ 640Hz, 1.5G acceleration peak to peakShock:10G acceleration peak to peak (11msColors:Black (PANTONE Black C) or White (PANTONE 413C)Dimensions:431(W) x 88(H) x 473(D)mm; (17" x 3.5" x 18.6")Net/GW (kg): 9/12
Appelez-nous
