6U 20-slot rackmount Black chassis with ACE-940AP power supply 6U height 19" Rack mounting chassisFour reset switches and PS/2 type KBD connectors forquad system applicationsDrive Bays :- 7 x 3.5" HDD- 2 x 5.25" Drive BaysFour 9cm cooling fans with filter on the front panel and two6cm fans on the both sideBuilt-in fan speed sensors board to detect fans speedDesigned with anti-vibration card clamp to keep systemstableSupports backplane : BP-20S, BP-20SD, BP-20ST, BP-20SQ,IP-19S, IP-18SD, PCI-19S, PCI-18SD, PCI-17SQ, PX-19S,PX-20S, PX-20S2, PXAGP-19S,PXAGP-19S2Supports PS/2 size power supply or 400W redundant AT/ATX power supplyOptional Slides: 24" or 18"Vibration :5~17Hz, 0.1" double amplitude displacement17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Black (PANTONE Black C) or White (PANTONE 413C)Dimensions:431(W) x 266.6(H) x 516.7(D)mm;(17" x 10.5" x 20.3")Net/GW (kg): 19/26

6U ATX Main board rackmount Black chassis with ACE-840AP power supply 6U height 19" Rack mounting chassisFour reset switches and PS/2 type KBD connectors forquad system applicationsDrive Bays :- 7 x 3.5" HDD- 2 x 5.25" Drive BaysFour 9cm cooling fans with filter on the front panel and two6cm fans on the both sideBuilt-in fan speed sensors board to detect fans speedDesigned with anti-vibration card clamp to keep systemstableSupports backplane : BP-20S, BP-20SD, BP-20ST, BP-20SQ,IP-19S, IP-18SD, PCI-19S, PCI-18SD, PCI-17SQ, PX-19S,PX-20S, PX-20S2, PXAGP-19S,PXAGP-19S2Supports PS/2 size power supply or 400W redundant AT/ATX power supplyOptional Slides: 24" or 18"Vibration :5~17Hz, 0.1" double amplitude displacement17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Black (PANTONE Black C) or White (PANTONE 413C)Dimensions:431(W) x 266.6(H) x 516.7(D)mm;(17" x 10.5" x 20.3")Net/GW (kg): 19/26

6U 20-slot rackmount Black chassis with 400W ATX type redundant power supply 6U height 19" Rack mounting chassisFour reset switches and PS/2 type KBD connectors forquad system applicationsDrive Bays :- 7 x 3.5" HDD- 2 x 5.25" Drive BaysFour 9cm cooling fans with filter on the front panel and two6cm fans on the both sideBuilt-in fan speed sensors board to detect fans speedDesigned with anti-vibration card clamp to keep systemstableSupports backplane : BP-20S, BP-20SD, BP-20ST, BP-20SQ,IP-19S, IP-18SD, PCI-19S, PCI-18SD, PCI-17SQ, PX-19S,PX-20S, PX-20S2, PXAGP-19S,PXAGP-19S2Supports PS/2 size power supply or 400W redundant AT/ATX power supplyOptional Slides: 24" or 18"Vibration :5~17Hz, 0.1" double amplitude displacement17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Black (PANTONE Black C) or White (PANTONE 413C)Dimensions:431(W) x 266.6(H) x 516.7(D)mm;(17" x 10.5" x 20.3")Net/GW (kg): 19/26

6U 20-slot rackmount White chassis with 400W ATX type redundant power supply 6U height 19" Rack mounting chassisFour reset switches and PS/2 type KBD connectors forquad system applicationsDrive Bays :- 7 x 3.5" HDD- 2 x 5.25" Drive BaysFour 9cm cooling fans with filter on the front panel and two6cm fans on the both sideBuilt-in fan speed sensors board to detect fans speedDesigned with anti-vibration card clamp to keep systemstableSupports backplane : BP-20S, BP-20SD, BP-20ST, BP-20SQ,IP-19S, IP-18SD, PCI-19S, PCI-18SD, PCI-17SQ, PX-19S,PX-20S, PX-20S2, PXAGP-19S,PXAGP-19S2Supports PS/2 size power supply or 400W redundant AT/ATX power supplyOptional Slides: 24" or 18"Vibration :5~17Hz, 0.1" double amplitude displacement17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Black (PANTONE Black C) or White (PANTONE 413C)Dimensions:431(W) x 266.6(H) x 516.7(D)mm;(17" x 10.5" x 20.3")Net/GW (kg): 19/26

6U ATX Main board rackmount White chassis with ACE-840AP power supply 6U height 19" Rack mounting chassisFour reset switches and PS/2 type KBD connectors forquad system applicationsDrive Bays :- 7 x 3.5" HDD- 2 x 5.25" Drive BaysFour 9cm cooling fans with filter on the front panel and two6cm fans on the both sideBuilt-in fan speed sensors board to detect fans speedDesigned with anti-vibration card clamp to keep systemstableSupports backplane : BP-20S, BP-20SD, BP-20ST, BP-20SQ,IP-19S, IP-18SD, PCI-19S, PCI-18SD, PCI-17SQ, PX-19S,PX-20S, PX-20S2, PXAGP-19S,PXAGP-19S2Supports PS/2 size power supply or 400W redundant AT/ATX power supplyOptional Slides: 24" or 18"Vibration :5~17Hz, 0.1" double amplitude displacement17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Black (PANTONE Black C) or White (PANTONE 413C)Dimensions:431(W) x 266.6(H) x 516.7(D)mm;(17" x 10.5" x 20.3")Net/GW (kg): 19/26

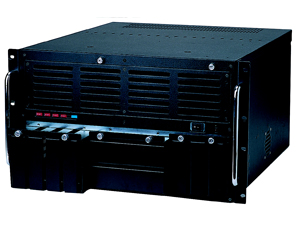

7U 20-slot rackmount Black chassis with ACE-RC03 power supply case 7U height 19" Rack mounting chassisFront panel with lockable door to protect the running systemTwo reset switches, AT type KBD connectors and systemalarm for dual system applicationsDrive Bays:- 2 x 3.5" FDD- 4 x 5.25" DriveFive hot removable 8cm cooling fans with removablefilter; four on front side and one on rear sideBuilt-in system fault detection with 4 temperature sensors,fan speed sensors and power fault detectionDesigned with anti-vibration card clamp to keep system stableSupports backplane: BP-20S, BP-20SD, BP-20ST, BP-20SQ,IP-19S, IP-18SD, PCI-19S, PCI-18SD, PCI-17SQ, PX-19S, PX-20S, PX-20S2, PXAGP-19S, PXAGP-19S2Built-in ACE-RC03 redundant power caseSupports power supply: ACE-R20 series redundant power moduleOptional rack-mount slide : 24" or 18"Vibration:5~17Hz, 0.1" double amplitude displacement17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Black (PANTONE Black C) or White (PANTONE 413C)Dimensions:431(W) x 311(H) x 503(D)mm; (17" x 12.2" x 19.8")Net/GW (kg): 22/29

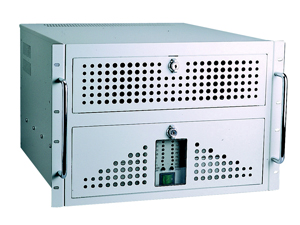

7U 20-slot rackmount White chassis with ACE-RC03 power supply case 7U height 19" Rack mounting chassisFront panel with lockable door to protect the running systemTwo reset switches, AT type KBD connectors and systemalarm for dual system applicationsDrive Bays:- 2 x 3.5" FDD- 4 x 5.25" DriveFive hot removable 8cm cooling fans with removablefilter; four on front side and one on rear sideBuilt-in system fault detection with 4 temperature sensors,fan speed sensors and power fault detectionDesigned with anti-vibration card clamp to keep system stableSupports backplane: BP-20S, BP-20SD, BP-20ST, BP-20SQ,IP-19S, IP-18SD, PCI-19S, PCI-18SD, PCI-17SQ, PX-19S, PX-20S, PX-20S2, PXAGP-19S, PXAGP-19S2Built-in ACE-RC03 redundant power caseSupports power supply: ACE-R20 series redundant power moduleOptional rack-mount slide : 24" or 18"Vibration:5~17Hz, 0.1" double amplitude displacement17~640Hz, 1.5G acceleration peak to peakShock: 10G acceleration peak to peak (11ms)Colors: Black (PANTONE Black C) or White (PANTONE 413C)Dimensions:431(W) x 311(H) x 503(D)mm; (17" x 12.2" x 19.8")Net/GW (kg): 22/29

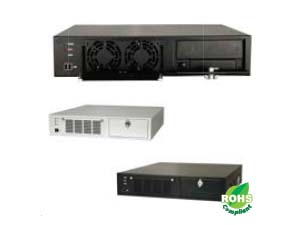

19" Rack Mount Chassis - RACK-220G Model : RACK-220Gx-ACE-832AP (x stands for color; B-Black, W-White) 2U 6-Slot Full-Size Rackmount Chassis with ACE-832AP-RS (RoHS compliant)
