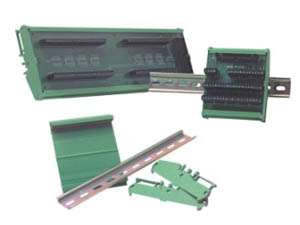

4" by 4" DIN Rail Mounting Kit for Screw Terminal & Accessory Boards

9" by 4" DIN Rail Mounting Kit for Screw Terminal & Accessory Boards

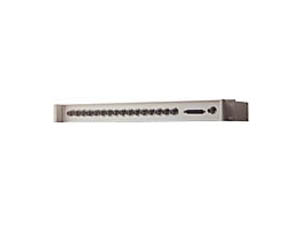

8 Channel Differential BNC Connector box DAS16/6400/1600/1200/1000 Features: Brings analog input signals to standard BNC connectors Compatible with CIO-DAS16/1600/6400 ISA boards and the PCI-DAS1600/1200/1000 Supports 16-channel SE (16SE) and 8-channel Diff. (16DI) modes Funtional Description: The BNC-16SE and BNC-16DI allow analog input connections to a data acquistion board through standard BNC connectors and cables. There are two versions of the BNC-16. The BNC-16SE version is designed for use with boards set in single-ended mode, while the BNC-16DI version is provides connections for boards set in differential mode. Boards with greater than 16SE/8 Diff inputs are supported by simply daisy chaining to one or more additional BNC-16s. Form Factor: 19” rack mountable or may be used as a stand-alone connection box. Other Signal Connections: For user convenience, a variety of other boards signals are brought to a 37-pin D connector that mounted on the front panel. Compatibility: The BNC-16 series is compatible with: CIO-DAS16/1600/1400 series, with the C37FF-# or C37FFS-# cable PCI-DAS1600/1200/1000 series and the CIO-DAS6400 series with C100FF-# cables

16-channel single-ended BNC connector box for DAS16/6400/1600/1200/1000 Features: Brings analog input signals to standard BNC connectors Compatible with CIO-DAS16/1600/6400 ISA boards and the PCI-DAS1600/1200/1000 Supports 16-channel SE (16SE) and 8-channel Diff. (16DI) modes Funtional Description: The BNC-16SE and BNC-16DI allow analog input connections to a data acquistion board through standard BNC connectors and cables. There are two versions of the BNC-16. The BNC-16SE version is designed for use with boards set in single-ended mode, while the BNC-16DI version is provides connections for boards set in differential mode. Boards with greater than 16SE/8 Diff inputs are supported by simply daisy chaining to one or more additional BNC-16s. Form Factor: 19” rack mountable or may be used as a stand alone connection box. Other Signal Connections: For user convenience, a variety of other boards signals are brought to a 37 pin D connector that mounted on the front panel. Compatibility: The BNC-16 series is compatible with: CIO-DAS16/1600/1400 series, with the C37FF-# or C37FFS-# cable PCI-DAS1600/1200/1000 series and the CIO-DAS6400 series with C100FF-# cables

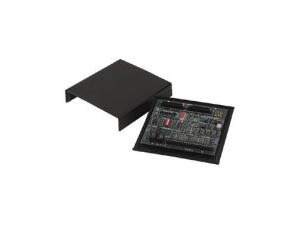

Enclosure for LAB8-TERM Board

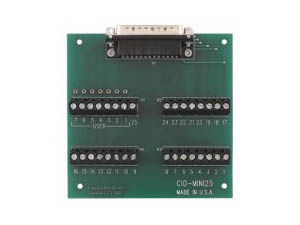

25 Pin Universal Screw Terminal Acc. Features: 25 pin screw terminal board Accepts 12-22 AWG wire Low cost Small footprint For Use with: CIO-DAC02, CIO-DAC02/16

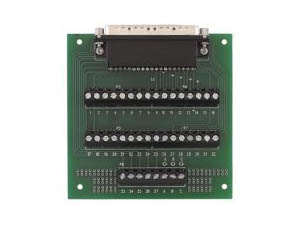

4 x 4 Universal Screw Terminal Features: 37 pin screw terminal board Accepts 12-22 AWG wire Low cost Small footprint For Use with: A very wide variety of analog and digital I/O boards

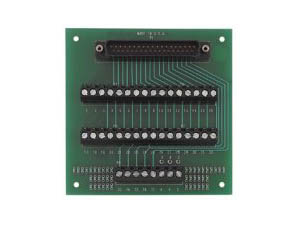

37 Pin Screw Terminal accessory with vertical 37 Pin D Male Connector. Features: 37 pin screw terminal board Accepts 12-22 AWG wire Low cost Small footprint Vertical mounting For Use with: A very wide variety of analog and digital I/O boards
