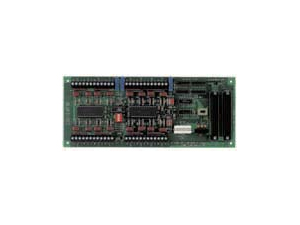

16 Channel Analog Multiplexor with Gain Amp & CJC Features:A/D board channel expansion 16 channel User selectable gains On-board CJC sensorAnalog Input Specifications:Channels: 16, fully differential Gain weights: 1, 10, 100, 200, 300, 500 CJC sensor: +24.4 mV/ deg. C (0V at 0 deg. C)User Field Configurable Options:Input filters (7 Hz), Open Thermocouple detection, 10Kohm ground reference resistor. **Operating Modes** The active EXP-32/16 channel is selected by the host A/D board’s digital output. An A/D board analog input must be dedicated to each EXP board.Software Description:Includes InstaCalTM, installation, calibration and test software. The CIO-EXP series is supported by the Universal LibraryTM for use with most A/D boards. The EXP-32/16 are also supported by most third party, high-level data acq. programs.Interconnect Cables:DAS-800/8 series C37FF-# series DAS-1600/1400/16 series C-EXP2DAS16-10

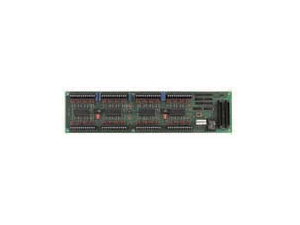

32 Channel Analog Multiplexor with 2 Gain Amps & CJC Features:A/D board channel expansion 32 channel (EXP-32) User selectable gains On-board CJC sensorAnalog Input Specifications:Channels: 32 fully differential Gain weights: 1, 10, 100, 200, 300, 500 CJC sensor: +24.4 mV/ deg. C (0V at 0 deg. C)User Field Configurable Options:Input filters (7 Hz), Open Thermocouple detection, 10Kohm ground reference resistor. **Operating Modes** The active EXP-32/16 channel is selected by the host A/D board’s digital output. An A/D board analog input must be dedicated to each EXP board.Software Description:Includes InstaCal ®, installation, calibration and test software. The CIO-EXP series is supported by the UniversalLibrary ® for use with most A/D boards. The EXP-32/16 are also supported by most third party, high-level data acq. programs.Interconnect Cables:DAS-800/8 series C37FF-# series DAS-1600/1400/16 series C-EXP2DAS16-10

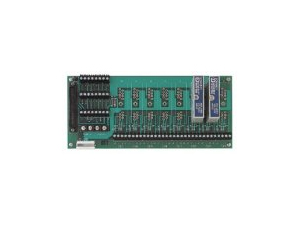

Isolation module mounting rack for 8 5B type isolation modules. DAS08 pinout. Features:Provides 8 isolated channels 5B modules provide a wide variety of signal conditioning Sensor/module types may be mixed on a single board DAS-8 and DAS-16 compatibleAnalog Input Specifications:Channels: 8 Module isolation: 1500Vrms Input filtering: 4Hz (standard module), 10 KHz (high speed)Module types:Voltage input High speed voltage input (10 KHz) Current input Thermocouple input Linearized thermocouple input RTD input Strain gauge input Frequency input **Operating Modes** Each ISO-RACK8 module is connected directly to a DAS-800/8 series analog input. There is no external multiplexing or digital control required.Software Description:Includes InstaCal ® , installation, calibration and test software. The ISO series is supported by the UniversalLibrary ® for use with most A/D boards. The ISO-RACK8 is also supported by most third party, high-level data acq. programs.Inteconnect Cables:DAS-1600/1400/16 series: C37FF-# series C37FFS-5, -10 shielded cables (recommended)

8 Channel isolation module rack for DAS08 family, detachable screw terminals Features:Provides 8 isolated channels 5B modules provide a wide variety of signal conditioning Sensor/module types may be mixed on a single board DAS-8 and DAS-16 compatibleAnalog Input Specifications:Channels: 8 Module isolation: 1500Vrms Input filtering: 4Hz (standard module), 10 KHz (high speed) Operating Modes Each ISO-RACK8 module is connected directly to a DAS-800/8 series analog input. There is no external multiplexing or digital control required.Module Types:Voltage input High speed voltage input (10 KHz) Current input Thermocouple input Linearized thermocouple input RTD input Strain gauge input Frequency input Operating Modes Each ISO-RACK16 module is connected directly to a DAS-16 series analog input. There is no external multiplexing or digital control required.Software Description:Includes InstaCal, installation, calibration and test software. The ISO series is supported by the UniversalLibrary for use with most A/D boards. The ISO-RACK8 is also supported by most third party, high-level data acq. programs.Inteconnect Cables:DAS-1600/1400/16 series: C37FF-# series C37FFS-5, -10 shielded cables (recommended) DAS-1600/1400/16 series: CEXP2DAS16-10

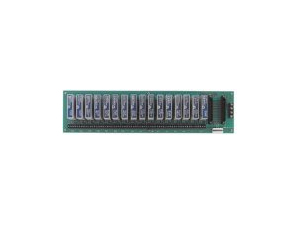

16 Chan 5B Mod Rack for CIO-DAS16 Series Features:16 isolated channels 5B modules provide a wide variety of signal conditioning Sensor/module types may be mixed on a single boardAnalog Input Specifications:Channels: 16 Module isolation: 1500Vrms Input filtering: 4Hz (standard module), 10 KHz (high speed)Module types:Voltage input High speed voltage input (10 KHz) Current input Thermocouple input Linearized thermocouple input RTD input Strain gauge input Frequency input **Operating Modes** Each ISO-RACK16 module is connected directly to a DAS-16 series analog input. There is no external multiplexing or digital control required.Software Description:Includes InstaCal ® , installation, calibration and test software. The ISO series is supported by the UniversalLibrary ® for use with most A/D boards. The ISO-RACK16 is also supported by most third party, high-level data acq. programs.Inteconnect Cables:DAS-1600/1400/16 series: C37FF-# series C37FFS-5, -10 shielded cables (recommended)

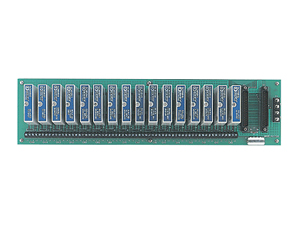

16 Channel isolation module rack for DAS16 family, detachable screw terminals Features:Provides 16 isolated channels 5B modules provide a wide variety of signal conditioning Sensor/module types may be mixed on a single board Provides all field I/O wiring through detachable screw terminalsAnalog Input Specifications:Channels: 16 Module isolation: 1500Vrms Input filtering: 4Hz (standard module), 10 KHz (high speed)Module Types:Voltage input High speed voltage input (10 KHz) Current input Thermocouple input Linearized thermocouple input RTD input Strain gauge input Frequency input Operating Modes Each ISO-RACK16 module is connected directly to a DAS-16 series analog input. There is no external multiplexing or digital control required.Software Description:Includes InstaCal, installation, calibration and test software. The CIO-EXP series is supported by the UniversalLibrary for use with most A/D boards.Inteconnect Cables:DAS-1600/1400/16 series: C37FF-# series C37FFS-5, -10 shielded cables (recommended)

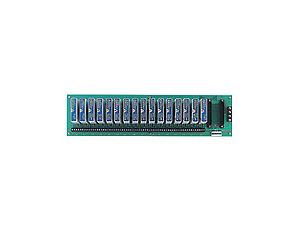

16 Chan 5B Mod Rack for PCI-DAS family Features:16 isolated channels 5B modules provide a wide variety of signal conditioning Sensor/module types may be mixed on a single boardAnalog Input Specifications:Channels: 16 Module isolation: 1500Vrms Input filtering: 4Hz (standard module), 10 KHz (high speed)Module types:Voltage input High speed voltage input (10 KHz) Current input Thermocouple input Linearized thermocouple input RTD input Strain gauge input Frequency input **Operating Modes** Each ISO-RACK16 module is connected directly to a DAS-16 series analog input. There is no external multiplexing or digital control required.Software Description:Includes InstaCal ® , installation, calibration and test software. The ISO series is supported by the UniversalLibrary ® for use with most A/D boards. The ISO-RACK16 is also supported by most third party, high-level data acq. programs.Inteconnect Cables:DAS-1600/1200/1000/6400 series: C100FF-# series (for boards with 100-pin connectors) C50FF-# for boards with 50 pin connectors.PCI-DAS6000 series: C100HD50-#

16 Channel isolation module rack for DAS16 family, detachable screw terminals Features:Provides 16 isolated channels 5B modules provide a wide variety of signal conditioning Sensor/module types may be mixed on a single board Provides all field I/O wiring through detachable screw terminalsAnalog Input Specifications:Channels: 16 Module isolation: 1500Vrms Input filtering: 4Hz (standard module), 10 KHz (high speed)Module Types:Voltage input High speed voltage input (10 KHz) Current input Thermocouple input Linearized thermocouple input RTD input Strain gauge input Frequency input Operating Modes Each ISO-RACK16 module is connected directly to a DAS-16 series analog input. There is no external multiplexing or digital control required.Software Description:Includes InstaCal, installation, calibration and test software. The CIO-EXP series is supported by the UniversalLibrary for use with most A/D boards.Inteconnect Cables:DAS-1600/1200/1000/6400 series: C100FF-# series (for boards with 100 pin connectors) C50FF-# for boards iwth 50-pin connectors.
