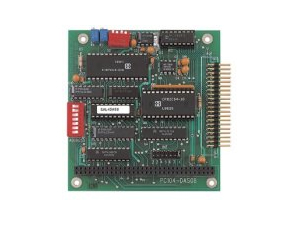

20KHZ A/D, 12 Bit, 8 SI Inputs PC104 Compliant Features:PC104 Form factor 8 Channel single-ended 12-Bit, 20KHz A/D 3 counters 7-Bits of digital I/OAnalog Input Specifications:Input resolution: 12-bits (1 in 4096) Input ranges: ±10V, ±5V, 0-10V Range selection: Switch selectable Max sample rate : 20 KHz Trigger/timing: Int/ext clock and triggerDigital Input/Output:Number of bits: 7-bits TTL, 4 out, 3 in Counter/timer: Three 16-bit (82C54) **Channel Expansion and Signal Conditioning** For more channels: See CIO-EXP-series For isolated inputs: See ISO-RACK08 For RTD or bridges: See EXP-GP, -RTD or -BRIDGE16Software Description:Includes InstaCal ® , installation, calibration and test software. Supported by UniversalLibrary ® . Also supported by most third party, high-level data acq. programs.Cables / Screw Terminal / Acces Boards:C40FF-# / CIO-MINI40or C40-37F-# / CIO-MINI37Expansion: C40-37F-# / CIO-EXP-series

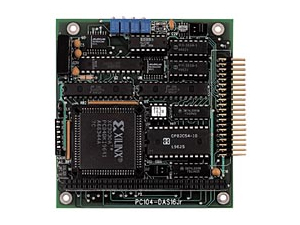

125KHZ A/D, 12 Bit, 16 SE or 8 DI PC104 Compliant Features:PC104 Form factor 12-bit, 150KHz A/D 16 chan SE / 8 chan diff 8 digital I/O bits, 4 in, 4 out 512 Sample FIFOAnalog Input Specifications:Input resolution: 12-Bits Input ranges: ±10V, ±5V, ±2.5V, ±1.25V, 0 to 10V, 5V, 2.5V, 1.25V Range selection: Software programmable Max sample rate: 150 KHz Trigger/timing: Int/ext clock, edge or level trigger Input Impedance: Greater than 10 MegohmDigital Input/Output:Input bits: 4, HC family Output bits: 4, HC family **Counter/Timer** Counters: 3, 16-bit (82C54), 2 are dedicated to A/D timingSoftware Description:Includes InstaCal ® , installation, calibration and test software. Supported by UniversalLibrary ® . Also supported by most third party, high-level data acq. programs.Cables / Screw Terminal Boards:C40FF-# / CIO-MINI40or C40-37F-# / CIO-MINI37Simultaneous S&H: C40-37F-# / CIO-SSH-16

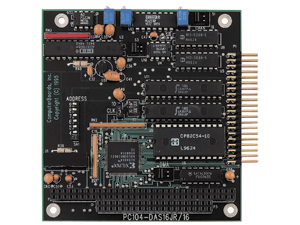

100KHZ A/D, 16 Bit, 16 SE or 8 DI PC104 Compliant Features:PC104 Form factor 16-bit, 100KHz A/D 16 chan SE / 8 chan diff 8 digital I/O bits, 4 in, 4 out 512 Sample FIFOAnalog Input Specifications:Input resolution: 16-Bits Input ranges: ±10V, ±5V, ±2.5V, ±1.25V, 0 to 10V, 5V, 2.5V, 1.25V Range selection: Software programmable Max sample rate: 100 KHz Trigger/timing: Int/ext clock, edge or level trigger Input Impedance: Greater than 10 MegohmDigital Input/Output:Input bits: 4, HC family Output bits: 4, HC family **Counter/Timer** Counters: 3, 16-bit (82C54), 2 are dedicated to A/D timingSoftware Description:Includes InstaCal ® , installation, calibration and test software. Supported by UniversalLibrary ® . Also supported by most third party, high-level data acq. programs.Cables / Screw Terminal Boards:C40FF-# / CIO-MINI40 or C40-37F-# / CIO-MINI37 Simultaneous S&H: C40-37F-# / CIO-SSH-16

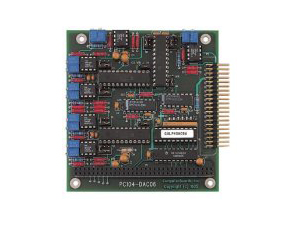

6 Channel, 12 Bit D/A PC104 Compliant Features:PC104 Form factor 6 D/A channels Voltage output 12-bit resolution One D/A per channelGeneral Output Specifications:Channels: 6 Configuration: 1 independant D/A per channel Output resolution: 12-bits (1 in 4096) Output updates: Independant or simultaneousVoltge Output Specs:Voltage ranges: ±10V, ±5V, 0-10V, 0-5V Output current: ±5 mA, min Output resistance:
