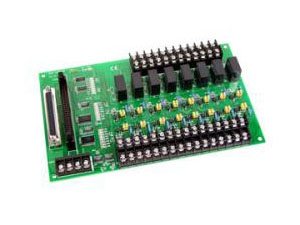

16-Channel Opto-isolated Digital Input & 8-Channel Relay Output Board FEATURES: 16 Optically isolated digital input channels 8 Relay output channels Connects directly to: DIO24 DIO48 DIO144 PIO-D144 PIO-D96 PIO-D48 OPTO-22 compatible digital input cards 722, 724 OPTO-22 compatible digital input boards Isolation digital input Dry contact or wet contact by jumper Select Input range : High 5 ~ 24Vdc Low 0 ~ 1.8Vdc Input resistor : 1.2K Ohm/ 1W Input buffer with voltage comparators Relay output 8-Channel Relay Output Max. Load 30Vdc/220Vac @5A SPECIFICATIONS: Isolated Digital Input Configuration : 16 optically isolated digital input channels Compatibility : TTL compatible Input impedance : 1.2k Source Current 5V inputs : 4mA/channel minimum 24V inputs : 20mA/channel minimum Response Time : 20us Power Supplies : +5vdc : 300mA /maximum (via 50-pin D-sub connector) +24Vdc: External Input (Via screw terminal block) for Relay output Board Dimension : 220 mm x 132 mm Operating Temperature : 0°C - 60°C Storage Temperature : -20°C - 70°C Humidity : 5% to 90 % noncondensing

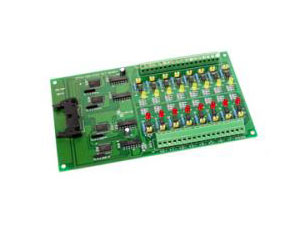

16 Channel Opto-Isolated Digital Input Board FEATURES: 16 optically isolated digital input channels Connects directly to A-82X boards 812pg series boards 711 series boards 720 series boards 726 series boards PCI Bus Multi-function Boards AC/DC Signal Input AC signal input with filter Input buffer with voltage compactors SPECIFICATIONS: I/O Connector Electrical Specifications Configuration : 6 optically isolated digital input channels Compatibility : TTL compatible Power Supplies +5V @ 224mA/ maximum Dimensions :205mm x 114 mm Operating Temperature : 0° - 60°C Storage Temperature :-20°C - 70°C Humidity : 5% to 90 % noncondensing Power Consumption : 12V /0.53V ; 5V / 0.2A

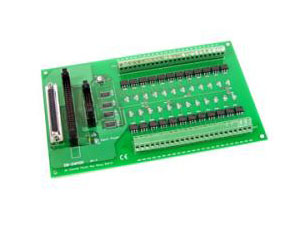

24-Channel Photo Mos Output Board FEATURES: 24 Photo Mos Relay One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector Connects directly to OPTO-22 compatible board or any 722,724 series board 8-channel max. load 4A/250V AC (per channel) LED indicated relay status Screw terminals for easy field wiring 5,000Vdc optical isolation SPECIFICATIONS: PhotoMos Relay Turn-on time :0.7ms (typical) Turn-off time: 0.05ms (typical) Output On resistance : 23 ohm (typical) Load voltage : 350V (peak AC) Power dissipation : 500mW Input / Output isolation : 5000VAC Countinuous load current : 0.13A Power Consumption : +5V @0.3A max Dimension : 1305mm X 220mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % non condensing

24-Channel Photo Mos Output Board DB-24POR with DIN-Rail Mounting Kit FEATURES: 24 Photo Mos Relay One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector Connects directly to OPTO-22 compatible board or any 722,724 series board 8-channel max. load 4A/250V AC (per channel) LED indicated relay status Screw terminals for easy field wiring 5,000Vdc optical isolation SPECIFICATIONS: PhotoMos Relay Turn-on time :0.7ms (typical) Turn-off time: 0.05ms (typical) Output On resistance : 23 ohm (typical) Load voltage : 350V (peak AC) Power dissipation : 500mW Input / Output isolation : 5000VAC Countinuous load current : 0.13A Power Consumption : +5V @0.3A max Dimension : 1305mm X 220mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % non condensing

24-Channel Photo Mos Output Board 24-channel photo MOS Relay Output Board with 1 meter D-Sub 37-pin cable FEATURES: 24 Photo Mos Relay One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector Connects directly to OPTO-22 compatible board or any 722,724 series board 8-channel max. load 4A/250V AC (per channel) LED indicated relay status Screw terminals for easy field wiring 5,000Vdc optical isolation SPECIFICATIONS: PhotoMos Relay Turn-on time :0.7ms (typical) Turn-off time: 0.05ms (typical) Output On resistance : 23 ohm (typical) Load voltage : 350V (peak AC) Power dissipation : 500mW Input / Output isolation : 5000VAC Countinuous load current : 0.13A Power Consumption : +5V @0.3A max Dimension : 1305mm X 220mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % non condensing

24-Channel Photo Mos Output Board DB-24POR/D with DIN-Rail Mounting Kit FEATURES: 24 Photo Mos Relay One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector Connects directly to OPTO-22 compatible board or any 722,724 series board 8-channel max. load 4A/250V AC (per channel) LED indicated relay status Screw terminals for easy field wiring 5,000Vdc optical isolation SPECIFICATIONS: PhotoMos Relay Turn-on time :0.7ms (typical) Turn-off time: 0.05ms (typical) Output On resistance : 23 ohm (typical) Load voltage : 350V (peak AC) Power dissipation : 500mW Input / Output isolation : 5000VAC Countinuous load current : 0.13A Power Consumption : +5V @0.3A max Dimension : 1305mm X 220mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % non condensing

16-Channel Opto-isolated Digital Input & 8-Channel Relay Output Board DB-16P8R with DIN-Rail Mounting Kit FEATURES: 16 Optically isolated digital input channels 8 Relay output channels Connects directly to DIO24, DIO48, DIO144, PIO-D144, PIO-D96, PIO-D48 OPTO-22 compatible digital input card or any 722,724 OPTO-22 compatible digital input board. Isolation digital input Dry contact or wet contact by jumper select Input range : High 5~24Vdc / Low 0~1.8Vdc Input resistor : 1.2K Ohm/ 1W Input buffer with voltage comparators Relay output: 8-Channel Relay Output Max. Load: 30Vdc/220Vac @5A SPECIFICATIONS: Isolated Digital Input Configuration : 16 optically isolated digital input channels Compatibility : TTL compatible Input impedance : 1.2k Source Current 5V inputs : 4mA/channel minimum 24V inputs : 20mA/channel minimum Response Time :20us Power Supplies : +5vdc :300mA /maximum (via 50-pin D-sub connector) +24Vdc: External Input (Via screw terminal block) for Relay output Board Dimension : 220 mm x 132 mm Operating Temperature : 0º -60ºC Storage Temperature : -20ºC-70ºC Humidity : 5% to 90 % noncondensing

24-Channel Power Relay output Board 24 Channel OPTO-22 Compatible Power Relay Board (12V) FEATURES: 8 Form C Relays (SPDT) and 16 FORM A Relay Accept 20-pin connector to control 8 Form and 8 Form A relays Switch up to 5A at 250 VAC / 5A at 30VDC LEDs indicated relay status Designed varistor to protect each channel??s high voltage spike Screw terminals for easy field wiring 50-Pin header Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722,724 series 20-Pin header connects directly to A-82X,A-626,A-628, Dio-64 SPECIFICATIONS: RELAY Nominal load : 5 A /120 VAC , 5A /24 VDC Max. Switching power : 0.1HP Max. Switching Voltage : 120VAC,60VDC Max. Switching Current : 5A Life Expectancy : Mechanical ( 2 x 10 ), Electrical ( 2 x 10 ) Time Value : Operate ( 10 ms ) Control Logic : Input TTL high (+5V) , relay on Power Consumption : 24V@ 0.8Amax. ; 5V @ 0.2A max. Dimension :130mmx210mm Operating Temperature : 0 - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing
