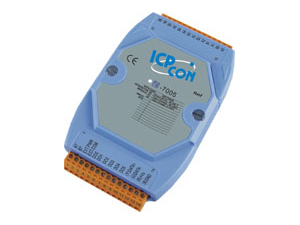

8-channel Thermistor Input and 6-channel Alarm Output Module Features Input Type : Thermistor Input Channels: 8 Thermistor Type : Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L1000, YSI B2252, YSI B3000, YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000, User-defined Resolution : 16-bits Accuracy : +/-0.1% Sampling Rate : 8 samples/second (Total) -3dB BandWidth : 5.24Hz Common Mode Rejection : Typical 86dB Voltage Input Impedance : >1M Ohms Individual Channel Configurable Wire Opening Detection Alarm Output Type : Open collector Alarm Output Channels: 6 (NPN, Sink) Open collector to 30V, 100mA max. load (per channel) Isolation Voltage : 3000Vdc

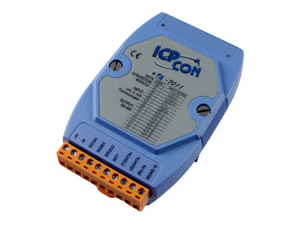

Thermocouple Input Module Analog Input Type: mV, V , mA (requires optional external 125 ohm resistor) Thermocouple: Type J, K, T, E, R, S, B, N, C Channels: 1 Voltage range: +/-15mV, +/-50mV, +/-100mV,+/- 500mV , +/-1V,+/- 2.5V Current range: +/- 20mA Resolution: 16-bit Sampling rate: 10 Samples/Second Bandwidth: 5.4 Hz Input impedance: 20M ohms Accuracy: ±0.05% Zero Drift: ± 0.5uV/℃ Span Drift: 25ppm/℃ CMR @ 50/60 Hz: 150 dB NMR @ 50/60 Hz: 100 dB Over voltage protection:10V (P-P) Isolation: 3000VDC Digital Input Channel: 1 Logic Level 0: + 1V max Logic Level 1: + 3.5V to 30V Event Counter Max Input Frequency: 50Hz Min. Pulse Width:1 mS Digital Output Channels: 2 Open collector to 30V Output Load: sink 30mA max. Power dissipation: 300mW Display LED 4 1/2 digits (for I-7011D) Communication Interface Interface: RS-485 Format: N,8,1 Baudrate: 1200~115200 bps Temperature Range Operating temperature: -25^C to +75^C Storage temperature: -30^C to +75^C Power Consumption Input: +10 to +30 Vdc Consumption: 0.9W for I-7011 1.5W for I-7011D

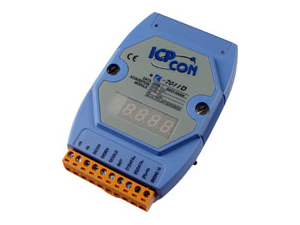

Thermocouple Input Module with LED Display Analog Input Type: mV, V , mA (requires optional external 125 ohm resistor) Thermocouple: Type J, K, T, E, R, S, B, N, C Channels: 1 Voltage range: +/-15mV, +/-50mV, +/-100mV,+/- 500mV , +/-1V,+/- 2.5V Current range: +/- 20mA Resolution: 16-bit Sampling rate: 10 Samples/Second Bandwidth: 5.4 Hz Input impedance: 20M ohms Accuracy: ±0.05% Zero Drift: ± 0.5uV/℃ Span Drift: 25ppm/℃ CMR @ 50/60 Hz: 150 dB NMR @ 50/60 Hz: 100 dB Over voltage protection:10V (P-P) Isolation: 3000VDC Digital Input Channel: 1 Logic Level 0: + 1V max Logic Level 1: + 3.5V to 30V Event Counter Max Input Frequency: 50Hz Min. Pulse Width:1 mS Digital Output Channels: 2 Open collector to 30V Output Load: sink 30mA max. Power dissipation: 300mW Display LED 4 1/2 digits (for I-7011D) Communication Interface Interface: RS-485 Format: N,8,1 Baudrate: 1200~115200 bps Temperature Range Operating temperature: -25^C to +75^C Storage temperature: -30^C to +75^C Power Consumption Input: +10 to +30 Vdc Consumption: 0.9W for I-7011 1.5W for I-7011D

Thermocouple Input Module with LED Display Analog Input Photo-isolation: 3750 Vrms Type: mV, V , mA (requires optional external 125 ohm resistor) Thermocouple: Type J, K, T, E, R, S, B, N, C, L, M Channels: 1 Voltage range: +/-15mV, +/-50mV, +/-100mV,+/- 500mV , +/-1V,+/- 2.5V Current range: +/- 20mA Resolution: 16-bit Sampling rate: 10 Samples/Second Bandwidth: 5.4 Hz Input impedance: 20M ohms Accuracy: ±0.05% Zero Drift: ± 0.5uV/℃ Span Drift: 25ppm/℃ CMR @ 50/60 Hz: 150 dB NMR @ 50/60 Hz: 100 dB Over voltage protection:10V (P-P) Isolation: 3000VDC Digital Input Channel: 1 Logic Level 0: + 1V max Logic Level 1: + 3.5V to 30V Event Counter Max Input Frequency: 50Hz Min. Pulse Width:1 mS Digital Output Channels: 2 Open collector to 30V Output Load: sink 30mA max. Power dissipation: 300mW Display LED 4 1/2 digits (for I-7011D) Communication Interface Interface: RS-485 Temperature Range Operating temperature: -25^C to +75^C Storage temperature: -30^C to +75^C Power Consumption Input: +10 to +30 Vdc Consumption: 0.9W for I-7011 1.5W for I-7011D

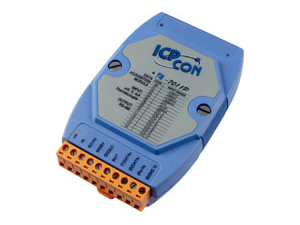

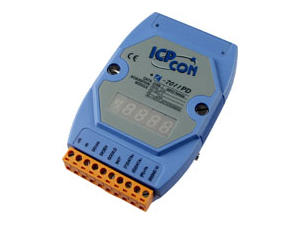

Thermocouple Input Module I-7011PD : I-7011P with LED Display Analog Input Photo-isolation: 3750 Vrms Type: mV, V , mA (requires optional external 125 ohm resistor) Thermocouple: Type J, K, T, E, R, S, B, N, C, L, M Channels: 1 Voltage range: +/-15mV, +/-50mV, +/-100mV,+/- 500mV , +/-1V,+/- 2.5V Current range: +/- 20mA Resolution: 16-bit Sampling rate: 10 Samples/Second Bandwidth: 5.4 Hz Input impedance: 20M ohms Accuracy: ±0.05% Zero Drift: ± 0.5uV/℃ Span Drift: 25ppm/℃ CMR @ 50/60 Hz: 150 dB NMR @ 50/60 Hz: 100 dB Over voltage protection:10V (P-P) Isolation: 3000VDC Digital Input Channel: 1 Logic Level 0: + 1V max Logic Level 1: + 3.5V to 30V Event Counter Max Input Frequency: 50Hz Min. Pulse Width:1 mS Digital Output Channels: 2 Open collector to 30V Output Load: sink 30mA max. Power dissipation: 300mW Display LED 4 1/2 digits (for I-7011D) Communication Interface Interface: RS-485 Temperature Range Operating temperature: -25^C to +75^C Storage temperature: -30^C to +75^C Power Consumption Input: +10 to +30 Vdc Consumption: 0.9W for I-7011 1.5W for I-7011D

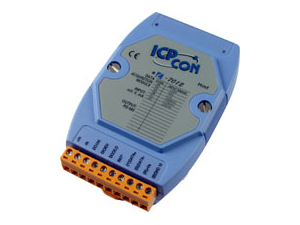

Analog Input Module Analog Input Channels: 1 Type: mV, V , mA (requires optional external 125 ohm resistor) Input Channel: 1 Voltage range: !O 150mA, !O 500mV, !O 1V, !O 5V, !O 10V Current range: +/- 20mA Resolution: 16-bit Sampling rate: 10 Samples/Second Bandwidth: 5.24 Hz Accuracy: !O 0.05% or better Zero drift: !O 20uV/￠XC Span Drift: 25ppm/￠J CMR @ 50/60 Hz: 86 dB NMR @ 50/60 Hz: 100 dB Over voltage protection:10V (P-P) Isolation: 3000Vrms Digital Input Channel: 1 Logic Level 0: + 1V max Logic Level 1: + 3.5V to 30V Event Counter Max Input Frequency: 50Hz Min. Pulse Width:1 mS Digital Output Channels: 2 Open collector to 30V Output Load: sink 30mA max. Power dissipation: 300mW Display LED 4 1/2 digits (for I-7012D) Communication Interface RS-485 Power Supply Input: +10 to +30 Vdc Consumption: 1.3W for I-7012 1.9W for I-7012D

Analog Input Module with LED Display Analog Input Channels: 1 Type: mV, V , mA (requires optional external 125 ohm resistor) Input Channel: 1 Voltage range: !O 150mA, !O 500mV, !O 1V, !O 5V, !O 10V Current range: +/- 20mA Resolution: 16-bit Sampling rate: 10 Samples/Second Bandwidth: 5.24 Hz Accuracy: !O 0.05% or better Zero drift: !O 20uV/￠XC Span Drift: 25ppm/￠J CMR @ 50/60 Hz: 86 dB NMR @ 50/60 Hz: 100 dB Over voltage protection:10V (P-P) Isolation: 3000Vrms Digital Input Channel: 1 Logic Level 0: + 1V max Logic Level 1: + 3.5V to 30V Event Counter Max Input Frequency: 50Hz Min. Pulse Width:1 mS Digital Output Channels: 2 Open collector to 30V Output Load: sink 30mA max. Power dissipation: 300mW Display LED 4 1/2 digits (for I-7012D) Communication Interface RS-485 Power Supply Input: +10 to +30 Vdc Consumption: 1.3W for I-7012 1.9W for I-7012D

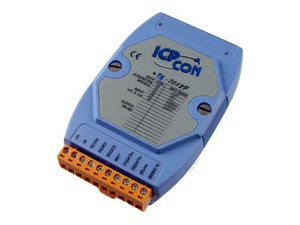

Analog Input Module Analog Input Channels: 1 Type: mV, V , mA (requires optional external 125 ohm resistor) Input Channel: 1 Voltage range: !O 150mA, !O 500mV, !O 1V, !O 5V, !O 10V Current range: +/- 20mA Resolution: 12-bit Sampling rate: 100 Samples/Second Bandwidth: 5.24 Hz Accuracy: !O 0.25% or better Zero drift: !O 20uV/￠XC Span Drift: 25ppm/￠J CMR @ 50/60 Hz: 86 dB NMR @ 50/60 Hz: 100 dB Over voltage protection:10V (P-P) Isolation: 3000Vdc Digital Input Channel: 1 Logic Level 0: + 1V max Logic Level 1: + 3.5V to 30V Event Counter Max Input Frequency: 50Hz Min. Pulse Width:1 mS Digital Output Channels: 2 Open collector to 30V Output Load: sink 30mA max. Power dissipation: 300mW Display LED 4 1/2 digits (for I-7012D) Communication Interface RS-485 Power Supply Input: +10 to +30 Vdc Consumption: 1.3W for I-7012 1.9W for I-7012D
