Acquisition & Control on PC | Comm. Interfaces
C488-2M
2 Meter IEEE-488 Cable Description : The C488-2M is a standard 2 meter GPIB cable. The cable is designed to connect any of ISA or PCI bus compatible GPIB boards to your instrument(s).
$96.00

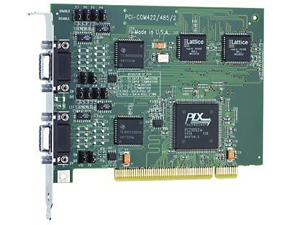

PCI-COM422/485-2
PCI-COM422/485-2 is a dual port RS-422/485 interface Features: Two low cost RS-422/485 Full Duplex interface ports PCI bus 2.1 compliant Control signals provided: RTS and CTS. Speeds to 460.8 Kbps 16C550 UART’s with 16-byte FIFO standard Optional 16C750 UART’s with 64-byte FIFO Two 9 Position D-type connectors Interrupt status register for increased performance Optional surge suppression on each signal line Specifications: Serial ports: 2 Configured: Address and interrupt configured through PCI BIOS and supplied drivers Transceivers: Full Duplex SP490-type transceiver meeting RS-422 standards to 5Mbps Max. baud rate: to 460.8 Kbps, software selectable per channel for 115.2, 230.4, or 460.8Kbps Serial modes: 5, 6, 7, or 8 data bits odd, even or no parity 0, 1 or 2 stop bits UART: 16C550 standard Interrupt Status: Each UART interrupt status read from any UART’s Scratchpad Register Termination: 120 ohm termination resistor provided Connector: Two DB-9 male Form Factor: PCI 2.1 complaint Software Description: Drivers for Windows 95, 98, NT, 2000, and XP supplied
$457.00

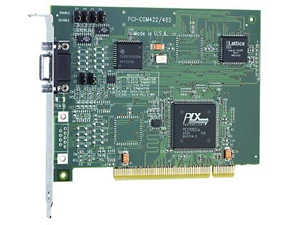

PCI-COM422/485
PCI-COM422/485 is a single port RS-422/485 interface Features: Low Cost RS-422/485 Full Duplex interface port PCI bus 2.1 compliant Control signals provided: RTS and CTS. Speeds to 460.8 Kbps 16C550 UART with 16-byte FIFO standard Optional 16C750 UART with 64-byte FIFO 9 Position D-type connector Optional surge suppression on each signal line Specifications: Serial ports: 1 Configured: Address and interrupt configured through PCI BIOS and supplied drivers Transceivers: Full Duplex SP490-type transceiver meeting RS-422 standards to 5Mbps Max. baud rate: to 460.8 Kbps, software selectable per channel for 115.2, 230.4, or 460.8Kbps Serial modes: 5, 6, 7, or 8 data bits odd, even or no parity 0, 1 or 2 stop bits UART: 16C550 standard Termination: 120 ohm termination resistor provided Connector: DB-9 male Form Factor: PCI 2.1 complaint Software Description: Drivers for Windows 95, 98, NT, 2000, and XP supplied
$316.00

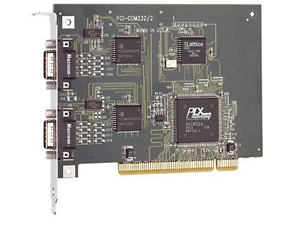

PCI-COM232/2
PCI-COM232/2 is a dual port RS-232 interface Features:Two low cost RS-232 interface ports PCI bus 2.1 compliant All control signals are provided: RTS, CTS, DTR, DSR, DCD and RI. Speeds to 460.8 Kbps Guaranteed RS232 performance to 115.2 Kbps 16C550 UART’s with 16-byte FIFO standard Optional 16C750 UART’s with 64-byte FIFO Two 9 Position D-type connector Interrupt status register for increased performance Optional surge suppression on each signal line Specifications:Serial ports: 2 Configured: Address and interrupt configured through PCI BIOS and supplied drivers Max. baud rate: to 460.8 Kbps, software selectable per channel for 115.2, 230.4, or 460.8Kbps Serial modes: 5, 6, 7, or 8 data bits; odd, even or no parity; 0, 1 or 2 stop bits UART: 16C550 standard Interrupt Status: Each UART interrupt status read from any UART’s Scratchpad Register Connector: DB-9 male Power: +5V only Form Factor:PCI 2.1 complaintSoftware Description:Drivers for Windows 95, 98, NT, 2000, and XP supplied
$311.00
