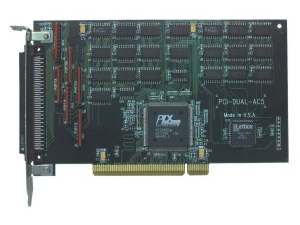

48-bit, high drive digital I/O board with direct AC5 & PB24 interface. Features:Directly OPTO/GORDOS AC5/PB24 compatible High current (64mA) outputs Controls 2 PB24 racksfully plug-and-playDigital I/0 Specifications:I/O bits: 48 Configuration: 24 I/O bits divided into two 8-bit and two 4-bit ports. Emulates: 8255 mode 0 **Input specs** Logic family: TTL family **Output specs** Sink: 64 mA min. at 0.55 V max. Source: 15 mA min at 2.5 V min PB24 compatible, will directly drive/monitor two industry standard PB24 racks please see our part SSR-PB24Software Description:Includes InstaCal ® , installation, calibration and test software. Supported by UniversalLibrary ® . Also supported by most third party, high-level data acq. programs.Cables / Interconnections:For use with PB24 use: C100FE-# cableFor screw terminal connections use C100FF-# cable and CIO-TERM100 or (2) CIO-MINI50 screw terminal boards

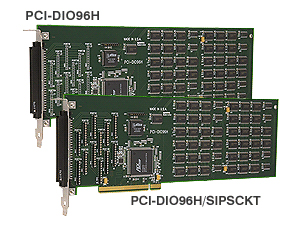

96-Bit High Drive 64mA Digital I/O Board with SIP sockets for pull-up/pull-down resistors Features: 96 DIO bits High output drive (64 Ma sink/15 Ma source) Includes sockets for installation of pull-up/pull-down resistors

PCI-bus Compatible, 96-Bit High Output Current, Logic Level Digital I/O Board Features 96 digital I/O bits High drive output (64 mA sink, 15 mA source) Emulates 8255

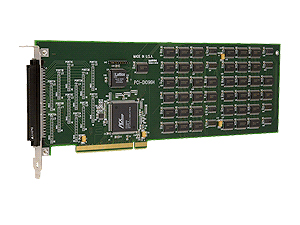

96 bit standard drive digital I/O board with SIP sockets for pull-up/pull-down resistors Features: 96 DIO bits Digital I/O section is connector compatible with all Measurement Computing's 50-pin based signal conditioning

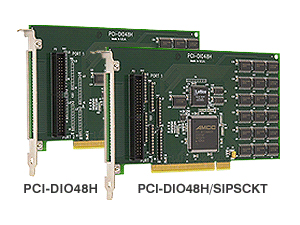

48-bit high drive 64mA digital I/O board with SIP socket for pull-up/pull-down resistors Features: PCI compatible 48 digital I/O bits Emulates 8255 mode 0 High output drive (64 mA sink/15 mA source) Includes sockets for installation of pull-up/pull-down resistors

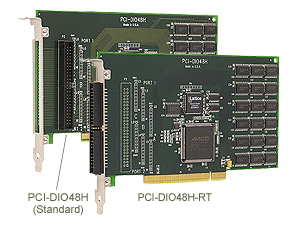

PCI-bus compatible, 48-Bit high output current, logic level digital I/O board Features: 48 DIO bits High output drive (64 mA sink/15 mA source) PCI-DIO48H-RT has the conventional "through backplate" connector PCI-DIO48H/SIPSCKT is the same board, but with installed SIP sockets for pull-up/pull-down resistors

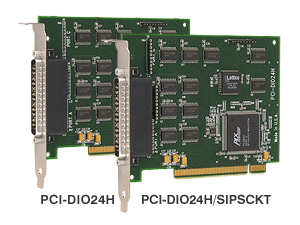

24-Bit High Drive 64mA Digital I/O Board with SIP sockets for pull-up/pull-down resistors Features: 24 DIO bits High output drive (64 mA sink/15 mA source) Includes sockets for installation of pull-up/pull-down resistors

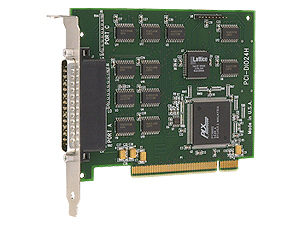

24-Bit PCI-bus Compatible, Logic Level Digital I/O Board Features: 24 digital I/O bits Extremely low cost High output drive (64 mA sink/15 mA source)
