PC Based Instruments | Oscilloscope

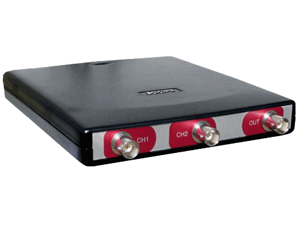

HS3 (10 MHz)

HS3 (10 MHz)

The Handyscope HS3 features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95 dB), 200 mV - 80 V full scale input range, 128 Ksamples record length per channel and a sampling frequency up to 100 MHz on both channels (100 MHz only in 8 bit resolution).

$1798.00

HS3 (25 MHz)

HS3 (25 MHz)

The Handyscope HS3 features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95 dB), 200 mV - 80 V full scale input range, 128 Ksamples record length per channel and a sampling frequency up to 100 MHz on both channels (100 MHz only in 8 bit resolution).

$2066.00

HS3 (50 MHz)

HS3 (50 MHz)

The Handyscope HS3 features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95 dB), 200 mV - 80 V full scale input range, 128 Ksamples record length per channel and a sampling frequency up to 100 MHz on both channels (100 MHz only in 8 bit resolution).

$2408.00

HS3 (100 MHz)

HS3 (100 MHz)

The Handyscope HS3 features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95 dB), 200 mV - 80 V full scale input range, 128 Ksamples record length per channel and a sampling frequency up to 100 MHz on both channels (100 MHz only in 8 bit resolution).

$2518.00

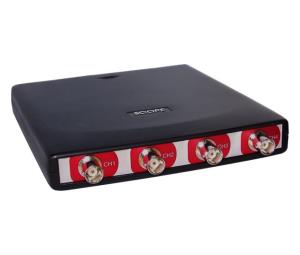

HS4 (50 MHz)

HS4 (50 MHz)

HS4-50 4 channel high resolution PC oscilloscope This Professional powerful computer controlled USB oscilloscope features four input channels. The Handyscope HS4 oscilloscope features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95dB), 200 mV to 80V full scale input range and 128 Ksamples record length per channel. Four Handyscope HS4 oscilloscope models are available, with a maximum sampling rate of respectively 5 MHz, 10 MHz, 25 MHz or 50 MHz on all four channels simultaneously. FAST CONTINUOUS STREAMING Besides measuring in block mode, the Handyscope HS4 is also capable of performing continuous streaming measurements. This will create a continuous uninterrupted data Stream to the computer. The data can then be displayed on the screen and/or saved to disk. combining multiple handyscope HS4s With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope. Combining is possible with the following instruments: * Wifiscope WS6 * Wifiscope WS5 * Handyscope HS6 DIFF * Handyscope HS5 * Handyscope HS4 DIFF * Handyscope HS4 * Handyscope HS3 (from serial number 14266) View all ways to combine instruments click here Base model: Handyscope HS4-50 50 MS/s model Handyscope HS4-25 25 MS/s model Handyscope HS4-10 10 MS/s model Handyscope HS4-5 5 MS/s model View full specifications of HS4click here

$3027.00

HP-9258

HP-9258

The HP-9258 is a low-input capacitance high voltage oscilloscope probe designed and calibrated for use on instruments having an input impedance of 1 Mohm shunted by 20 pF. However, it may be compensated for use with instruments having an input capacitance of 10 - 35 pF. The modular construction facilitates simple field replacement of the major parts.

$116.00

SI-9002

SI-9002

Using a built-in differential amplifier, it scales and converts the high voltage differential input to a low voltage single ended BNC output. The differential input is useful in measurements of power semiconductor circuits, as no reference to ground is required. Both the positive and negative sides of the balanced input possess high voltage differential input up to 700 volt, and its sensitivity can extend down to 100 mvolt. With bandwidth and high response speed, it is adequate for accurate dv/dt measurement in the fastest switching circuits of thyristors, bipolar transistors, or power MOSFETS. The Differential Probe - SI-9002 is small and light, so it can be used in a very convenient way; just plug it into the input of, for example, the Handyscope HS3. The wide bandwidth and the high accuracy of this Differential Probe cater for a wide range of applications.

$688.00

HP-6350

HP-6350

The HP-6350 is a 1:1-1:10 selectable passive-high impedance oscilloscope probe designed and calibrated for use on instruments having an input impedance of 1 Mohm shunted by 20 pF. However, it may be compensated for use with instruments having an input capacitance of 10 - 35 pF. The probe incorporates a two position slide switch in the head which selects the attenuation of X1, X10 position. The modular construction facilitates simple field replacement of the major parts.

$60.00
