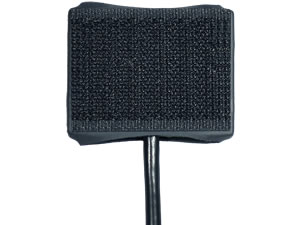

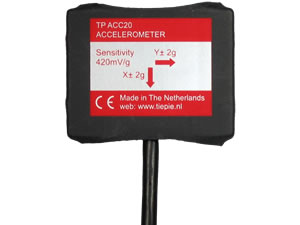

Accelerometer TP-ACC20
The Accelerometer TP-ACC20 is a dual axis accelerometer combined with a manual trigger button, designed to be used with the Handyscope HS3, Handyscope HS4 and Handyscope HS4 DIFF. Handyscope HS3
The dual accelerometer is a low power dual axis accelerometer with voltage outputs. It can measure accelerations in two axes, up to ± 2 g. It can measure both dynamic acceleration and static acceleration (gravity).
Specifications:
Sensor input range
+/-2 g
Sensitivity
420 mV/g
Bandwidth
500 Hz
Sensor resonant frequency
5.5 kHz
Power supply
from instrument extension connector, < 0.5 mA
Sensor Dimensions
35 x 30 x 9 (mm) Width x Height x Thickness
Sensor Cable Length
2.5 m
Interface to Instruments Connector
25 pin male Sub-D connector
