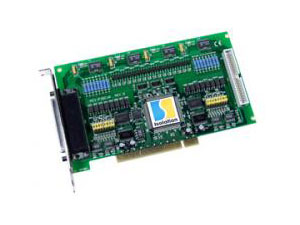

16 Channel Isolated Digital Input, 16 Channel Open-Collector Output Board 16 Open-Collector output channels 16 Optical isolated digital input channels DC signal input with filter or Without filter AC Signal input with filter Open-Collector (NPN) Outputs Load current : 600mA (Max) per channel Load Voltage: 30Vdc Isolated Inputs Type : None- polarized opto-isolated (PC-814) Input voltage : AC/DC 5-24V or VAC(50- 1khz) Input impedance : 1.2 Kohm Response time : 20u Sec (Without filter) 22m Sec ( With filter) Isolated : 500v channel-channel / channel - Ground Environment Operation Temp. : 0 to 50ºC Storage Temp. : -20 to 70ºC Humidity : 0 to 90% non-condensing Dimension : 180 X 105 mm

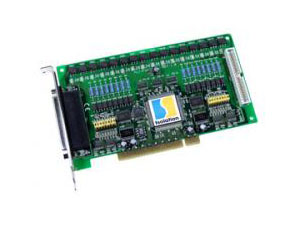

16 Channel Isolated Digital Input, 16 Channel PhotoMos Relay Output FEATURES: The PCI-P16POR16 provides 16 optically isolated inputs and 16 PhotoMos Relay outputs. The PCI-P16POR16 has two 37-pin D-Sub connector. It can be installed in a 5V PCI slot and can support truly "Plug & Play". 16 PhotoMos Relay output channels 16 Optical isolated digital input channels DC signal input with filter or W/O filter AC Signal input with filter SPECIFICATIONS: PhotoMos Relay Load current : 140mA (Max) per channel Load Voltage: 250Vac /DC Inputs Type : Non- polarized opto-isolated (PC-814) Input voltage : AC/DC 5-24V or VAC (50- 1khz) Input impedance : 1.2K ohm Response time : 20u Sec (Without filter) 22m Sec ( With filter) Isolated : 500v channel-channel / channel - Ground Environmental Operation Temp. : 0 to 50°C Storage Temp. : -20°C to 70°C Humidity : 0 to 90% none-condensing Dimensions : 180 X 105 mm

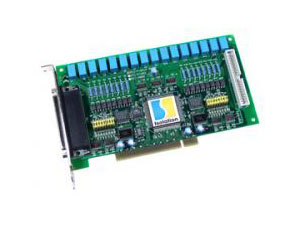

16 channel isolated digital input, 16 Channel Relay Output FEATURES: The PCI-P16R16 provides 16 optically isolated inputs and 16 Relay outputs. The PCI-P16R16 has two 37-pin D-Sub connector. It can be installed in a 5V PCI slot and can support truly "Plug & Play". 16 Relay output channels 16 Optical isolated digital input channels ' DC signal input with filter or Without filter AC Signal input with filter SPECIFICATIONS: Relay Outputs Contact Rating : 0.5A/120Vac,DC/1A 30Vdc Contact arrangement : Output channel 0 -3 are form C Output channel 4-7 are Form A Operating time : 5 mSec Release time : 10 mSec Expected life > 100,000 times (at 30V ,1A) Optical Isolated Digital Input Type : None- polarized Optical Isolation (PC-814) Input voltage : AC/DC 5-24V or Vac (50- 1khz) Operating Temperature: 0 to 60 deg/C Input impedance : 1.2 Kohm Response time : 20u Sec (Without filter) / 22m Sec ( With filter) Isolated : 500v channel-channel / channel - Ground Environmental Operation Temp : 0° to 50°C Storage Temp : -20°C to 70°C Humidity : 0 to 90% none-condensing Dimensions : 180 X 105 mm

8 Channel Isolated Digital Input, 8 Channel Relay Outpu FEATURES: The PCI-P16R16 provides 16 optically isolated inputs and 16 Relay outputs. The PCI-P16R16 has two 37-pin D-Sub connector. It can be installed in a 5V PCI slot and can support truly "Plug & Play". 8 Relay output channels 8 Optical isolated digital input channels DC signal input with filter or Without filter AC Signal input with filter" Relay Outputs Contact Rating : 0.5A/120Vac,DC/1A 30Vdc Contact arrangement : Output channel 0 -3 are form C Output channel 4-7 are Form A Operating time : 5 mSec Release time : 10 mSec Expected life > 100,000 times (at 30V ,1A) Optical Isolated Digital Input Type : None- polarized Optical Isolation (PC-814) Input voltage : AC/DC 5-24V or Vac (50- 1khz) Operating Temperature: 0 to 60 deg/C Input impedance : 1.2 Kohm Response time : 20u Sec (Without filter) / 22m Sec ( With filter) Isolated : 500v channel-channel / channel - Ground Environmental Operation Temp : 0° to 50°C Storage Temp : -20°C to 70°C Humidity : 0 to 90% none-condensing Dimensions : 180 X 105 mm

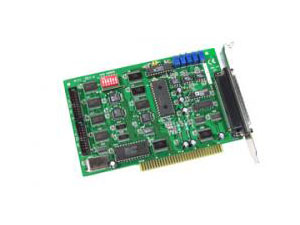

12 Bit Multifunction Board with 30KS/s sampling rate, 8 Channel Analog Input, 1 Channel Analog Output, 16 Digital Input, 16 Digital Output FEATURES: 12-bit A/D converter 12-bit D/A converter 8 single-ended input channels 45 k/s sampling rate Single 12-bit analog output channel Software programmable A/D gain :1 , 2, 4, 8 Interrupt handling A/D Trigger modes : Software Trigger, Pacer Trigger A/D data transfer modes : polling , interrupt 16 digital input & 16 digital output 37 pin D-Sub connector SPECIFICATIONS: Channels: 1 independent Type: 12-bit double buffered Linearity: 0.006% FS Output range Internal reference: 0~5V,0~10V Output Driving: 5mA Inputs (LSTTL) : 16 Input low VIL = 0.8V max. ; IIL =-0.4mA max. Input high VIH = 2.0V min. ; IIH = 20*A max. Outputs (LSTTL) : 16 Output low VOL = 0.5V max. @IOL =8mA max. Output high VOH = 2.7V min; @IOH =-400*Amax. Power Requirements +5V @350mA max. Operating temp 0-50ºc Storage temp -20 ~ 70ºc Humidity 0 ~ 90% non-condensing Dimensions 170mm x 122 mm

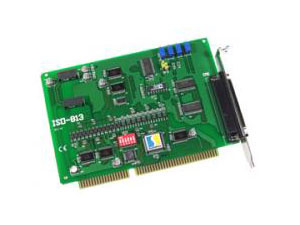

12 Bit Multifunction Board with 30KS/s sampling rate, 8 Channel Analog Input, 1 Channel Analog Output, 16 Digital Input, 16 Digital Output FEATURES: 32-channel analog input 12-bit A/D converter(ADS-774) 3000VDC photo-isolation protection Maximum 10K 12-bit sampling rate Programable Gain : 1, 2, 4, 8, 16 Analog Input range : Bipolar : +/- 10V ,+/- 5V , +/- 2.5V , +/- 1.25V, +/-0.625V, +/- 0.3125 Unipolar : 0~10V , 0~5V , 0~2.5V , 0~1.25V, 0~0.625V A/D trigger mode : Software trigger A/D Transfer mode : Polling" SPECIFICATIONS: Channels 32 single-ended DIO Resolution 12 bits Conversion rate 10KS/s max. Input impedance 10,000 M Ohm // 6pf Overvoltage protection +/-35V Accuracy 0.01% of reading +/- 1 bit Zero drift +/-25ppm/*C of FS max. General Environment Power Requirements +5V @350mA max. +12V @ -12V @ Operating temp 0° - 50°C Storage temp -20°C - 70°C Humidity 0 to 90 non-condensing Dimensions 174 mm x 122 mm

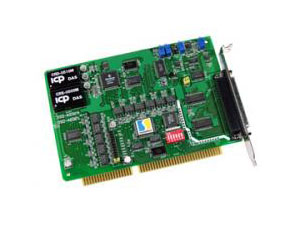

200KS/s 12-bit 32-Channel Isolated Analog Input Board 12 bit 200KS/s sampling rate , 32 Channel Isolated Analog Input Board (High Gain) FEATURES: 32 single-ended or 16 differential input channels, 500VDC photo-isolation protection Maximum 200K 12-bit sampling rate Built-in 1K byte FIFO Single -ended or differential input, can be jumper selectable Auto-channel / gain scan Command set programming Gap-free A/D conversion SPECIFICATIONS: General Environment Power Requirements: +5V @850mA max. Operating temp 0° - 50°C Storage temp -20°C - 70°C Humidity 0 to 90% non-condensing Dimensions 173 mm x 122 mm

200KS/s 12-bit 32-Channel Isolated Analog Input Board 12 bit 200KS/s sampling rate , 32 Channel Isolated Analog Input Board (Low Gain) FEATURES: 32 single-ended or 16 differential input channels, 500VDC photo-isolation protection Maximum 200K 12-bit sampling rate Built-in 1K byte FIFO Single -ended or differential input, can be jumper selectable Auto-channel / gain scan Command set programming Gap-free A/D conversion SPECIFICATIONS: General Environment Power Requirements: +5V @ 850mA max. Operating Tempperature: 0° - 50°C Storage Temperature: -20°C - 70°C Humidity 0 to 90% non-condensing Dimensions 173 mm x 122 mm
