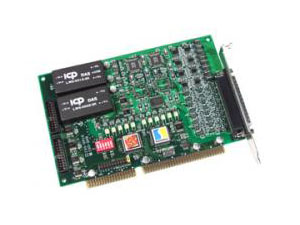

14 bit 16 Channel Isolated Analog Output Board ISO-DA16 with DN-37 FEATURES: AT bus 500VDC photo-isolation protection 8/16 channel, 12-bit analog output Build in FIFO for continuous throughput Maximum 100KHz , 12 bit voltage output Unipolar or bipolar outputs available from each converter Voltage/ current outputs from each converter Output Type ( Unipolar or Bipolar ) and output range ( 0~5v,+/- 5V,0~10V,+/- 10V) can be jumper selectable 4-20mA current sink to ground from each converter On board reference of -10 V or -5V ( jumper selectable) Double-buffered D/A latches with simultaneous update for each 4 channel group (channels: 0-3,4-7,8-11,12-15) Command set programming Software Calibration SPECIFICATIONS: Voltage Output Range Unipolar 0~5V or 0~10V Bipolar +/-10Vor,+/- 5V Current drive +/-5mA Absolute accuracy 0.01% FSR typical Power on state 0V bipolar ; 5V unipolar Current Output Range Current output 0-20mA or 4-20mA Absolute Accuracy 0.1% FSR typical Excitation voltage range + 7 V to +40V Power On state 4mA bipolar , 12mA Unipolar Stability Offset temperature coefficient +/- 50mV/ deg C Gain temperature coefficient +/- 10ppm (C) General Environmental Power Requirements: ISO-DA8 +5VDC @800mA max. ISO-DA16+5VDC @1400mA max. Operating temp 0-50 deg/ C Storage temp -20 to 70 deg/C Humidity 0 to 90% non-condensing Dimensions 182 mm x 122 mm"

12 Bit Multifunction Board with 30KS/s sampling rate, 8 Channel Analog Input, 1 Channel Analog Output, 16 Digital Input, 16 Digital Output ISO-813 with DB-8325 daughter board FEATURES: 32-channel analog input 12-bit A/D converter(ADS-774) 3000VDC photo-isolation protection Maximum 10K 12-bit sampling rate Programable Gain : 1, 2, 4, 8, 16 Analog Input range : Bipolar : +/- 10V ,+/- 5V , +/- 2.5V , +/- 1.25V, +/-0.625V, +/- 0.3125 Unipolar : 0~10V , 0~5V , 0~2.5V , 0~1.25V, 0~0.625V A/D trigger mode : Software trigger A/D Transfer mode : Polling" SPECIFICATIONS: Channels 32 single-ended DIO Resolution 12 bits Conversion rate 10KS/s max. Input impedance 10,000 M Ohm // 6pf Overvoltage protection +/-35V Accuracy 0.01% of reading +/- 1 bit Zero drift +/-25ppm/*C of FS max. ISO-813 Input Range General Environment Power Requirements +5V @350mA max. +12V @ -12V @ Operating temp 0° - 50°C Storage temp -20°C - 70°C Humidity 0 to 90 non-condensing Dimensions 174 mm x 122 mm

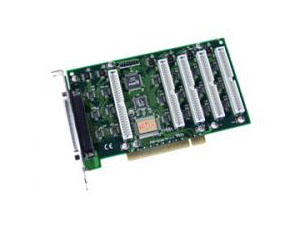

PCI Bus 144-bit OPTO-22 DIO Board FEATURES: Double side SMT, short card , power saving Connect directly to DB-24P,DB-24R, DB-24PR, DB-24SSR, DB-24POR and other OPTO-22 compatible daughter board 144 I/O Lines Emulate 6 Industrial standard 8255 mode 0 Programmable interrupt handling Five 50-pin falt cable connector & one 37-pin D-sub connector Output status readback Interrupt handling capability SPECIFICATIONS: PC compatible PCI bus One DB-37 connector and five 50-pin flat-cable connectors Each port consists of three 8-bit port, PA, PB & PC in every connector Each port can be programmed as D/I or D/O independently. Each board = 6 connector = 6*3 port = 6*3*8 bit =144 bit 4 interrupt sources : CON1 PC0,PC1,PC2,PC3 All signals are TTL compatible Operating Temperature: 0 to 60?C Storage Temperature: -20 to 80?C Humidity: 0 to 90% non-condensing Dimensions: 180mm X 105mm Power Consumption: +5V @ 1100mA

PCI BUS 48-Bit OPTO-22 Compatible DIO Board FEATURES: PCI Bus Up to 48 channels of digital I/O All I/O lines buffered on the board Eight-bit groups independently selectable for I/O on each 24-bit port Input/Output programmable I/O ports under software control SMD, short card Connects directly to DB-24P, DB-24R, DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R, DB-24POR, DB 24SSR, DB-24C or any OPTO-22 compatible daughter boards One 32-bit programmable internal timer One 16-bit event counter Interrupt source: 4 channels Pull-up or pull-down resistors on I/O lines Emulate two industrial-standard 8255 mode 0 Buffer output for higher driving capability One D-Sub connector, one 50-pin flat cable connector Automatically detected by Windows 95/98/NT No base address or IRQ switches to set SPECIFICATIONS: All inputs are TTL compatible Logic high voltage: 2.4V ( Min. ) Logic low voltage: 0.8V ( Max. ) All outputs are TTL compatible Sink current: 64 mA ( Max. ) Source current: 32 mA ( Max. ) Power consumption: +5V @ 900mA Pin Assignment CN1 Environmental Operating Temp. : 0 to 60?C Storage Temp. : -20 to 80?C Humidity: 0 to 90 % non-condensing Dimensions : 156mm x 105mm

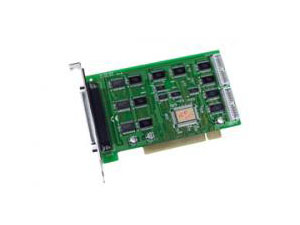

PCI BUS 24-Bit DIO Board. FEATURES: PCI bus Up to 56/24(PIO-D56/PIO-D24) channels of digital I/O All I/O lines buffered on the board Eight-bit groups independently selectable for I/O on 24-bit port Input / Output programmable I/O ports under software control Double side SMD, short card. Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 Compatible daughter boards 4 interrupt sources: PC0,PC1,PC2,PC3 One DB37 connector, two 20-pin headers(only for PIO-D56) Automatically detected by windows 95/98/NT No base address or IRQ switches to set SPECIFICATIONS: All inputs are TTL compatible Logic high voltage : 2.4V (Min.) v Logic low voltage : 0.8V (Max.) All outputs are TTL compatible OPTO-22 output (CON3) Sink current : 64mA (Max.) Source current : 32mA(Max.) 16-channel output (CON1) Sink current : 8mA (Max.) Source current : 0.4mA(Max.) Environmental Operating Temperature: 0 to 60 deg/C Storage Temperature: -20 to 80 deg /C Humidity: 0 to 90% non-condensing Dimensions: 143mm X 105mm Power Consumption: +5V @ 530mA/420mA(PIO-D56/PIO-D24)"

PCI BUS 56-Bit DIO Board FEATURES: PCI bus Up to 56/24(PIO-D56/PIO-D24) channels of digital I/O All I/O lines buffered on the board Eight-bit groups independently selectable for I/O on 24-bit port Input / Output programmable I/O ports under software control Double side SMD, short card. Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 Compatible daughter boards 4 interrupt sources: PC0,PC1,PC2,PC3 One DB37 connector, two 20-pin headers(only for PIO-D56) Automatically detected by windows 95/98/NT No base address or IRQ switches to set SPECIFICATIONS: All inputs are TTL compatible Logic high voltage : 2.4V (Min.) v Logic low voltage : 0.8V (Max.) All outputs are TTL compatible OPTO-22 output (CON3) Sink current : 64mA (Max.) Source current : 32mA(Max.) 16-channel output (CON1) Sink current : 8mA (Max.) Source current : 0.4mA(Max.) Environmental Operating Temperature: 0 to 60 deg/C Storage Temperature: -20 to 80 deg /C Humidity: 0 to 90% non-condensing Dimensions: 143mm X 105mm Power Consumption: +5V @ 530mA/420mA(PIO-D56/PIO-D24)"

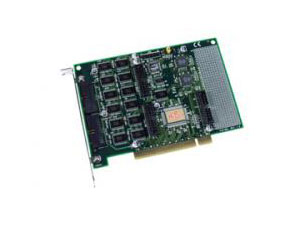

PCI BUS 64-Bit DIO Board With Timer/Counter FEATURES: Double side SMT, short card Provides four 20-pin flat cable connector to DB-16P , DB-16R daughter board 32-bit digital input Lines and 32-bit digital output lines One 16-bit counter and One 32-bit counter with 4 Mhz time base 3 independent programmable 16-bit down counter Programmable interrupt handling Five 20-pin headers Output status readback Interrupt trigger by :Even / Timer trigger SPECIFICATIONS: All inputs are TTL compatible Logic high voltage: 2.4V ( Min. ) Logic low voltage: 0.8V ( Max. ) All outputs are TTL compatible Sink current: 24 mA ( Max. ) Source current: 15 mA ( Max. ) Power consumption: +5V @ 580mA Environmental  Operating Temp. : 0 to 60? C   Storage Temp. : -20 to 80? C   Humidity: 0 to 90 % non-condensing   Dimensions : 156mm x 110mm

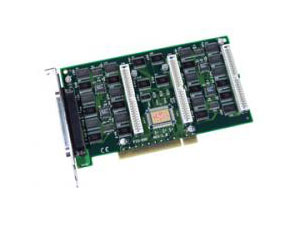

PCI BUS 96-Bit OPTO-22 DIO Board FEATURES: PCI bus Up to 96 channels of digital I/O All I/O lines buffered on the board Eight-bit groups independently selectable for I/O on each 24-bit port Input/ Output programmable I/O ports under software control ] SMD, short card Connects directly to DB-24P, DB-24PR, DB-24PD, DB-24RD,DB-24PRD, DB-16P8R, DB-24POR, DB-24SSR, DB 24C or any OPTO-22 Compatible daughter boards 4 interrupt sources: P2C0,P5C0,P8C0,P11C0 One D-sub connector, three 50-pin flat cable connectorsAutomatically detected by windows 95/98/NT No base address or IRQ switches to set" SPECIFICATIONS: PC compatible PCI bus One DB-37 connector and five 50-pin flat-cable connectors Each port consists of three 8-bit port, PA, PB & PC in every connector Each port can be programmed as D/I or D/O independently. Each board = 6 connector = 6*3 port = 6*3*8 bit =144 bit 4 interrupt sources : CON1 PC0,PC1,PC2,PC3 All signals are TTL compatible Operating Temperature: 0 to 60 deg/C Storage Temperature: -20 to 80 deg/C Humidity: 0 to 90% non-condensing Dimensions: 180mm X 105mm Power Consumption: +5V @ 1100mA
