Detailed features:
DT9837A-OEM
High performance, USB powered dynamic signal analyzer, 24-bit, 52.7kHz, 4IEPE AI, 1AO, 1 Tach, AO readback. No enclosure

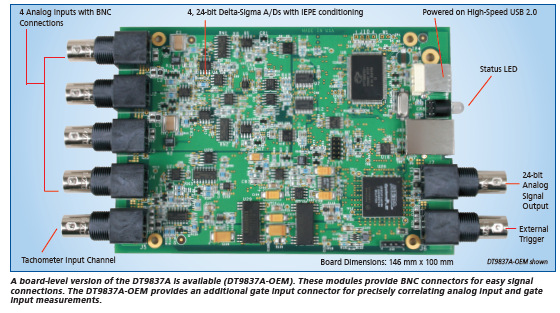

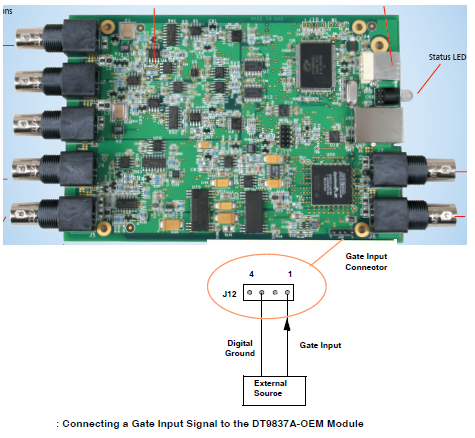

DT9837A-OEM is a board-level version of the DT9837A. These modules provide BNC connectors for easy signal connections. The DT9837A-OEM provides an additional gate input connector for precisely correlating analog input and gate input measurements.
The DT9837 series high-accuracy dynamic signal acquisition modules are ideal for portable noise, vibration and acoustic measurements. Four, 24-bit, IEPE sensors inputs are synchronized with a tachometer input (on models DT9837, DT9837A and DT9837B), to provide data streams that are matched in time, for field and laboratory use. These rugged, compact modules are USB powered.
DT9837A has the ability to read the value of tachometer counter 1 in the analog input data Stream, allowing you to precisely correlate tachometer measurements with analog input measurements.
Also,DT9837A support for reading analog output values in the analog input data Stream, allowing you to correlate input and output values. RJ45 synchronization connector to synchronize acquisition on up to four modules.
Analog output subsystem (DT9837A)
*One 24-bit D/A converter
*Single value, waveform and continuous streaming output
*programmable output rate from 10 kS/s to 52.734 kS/s
*Output range of +/- 10V
*+/- 3 mA output current
*Software-programmable trigger source (software trigger, external digital trigger, or analog threshold trigger) to start the analog output operation
*View all specifications for DT9837 series click here
*View manual for DT9837 series click here
DT9837A-OEM
High performance, USB powered dynamic signal analyzer, 24-bit, 52.7kHz, 4IEPE AI, 1AO, 1 Tach, AO readback. No enclosure
DT9837A-OEM is a board-level version of the DT9837A. These modules provide BNC connectors for easy signal connections. The DT9837A-OEM provides an additional gate input connector for precisely correlating analog input and gate input measurements.
The DT9837 series high-accuracy dynamic signal acquisition modules are ideal for portable noise, vibration and acoustic measurements. Four, 24-bit, IEPE sensors inputs are synchronized with a tachometer input (on models DT9837, DT9837A and DT9837B), to provide data streams that are matched in time, for field and laboratory use. These rugged, compact modules are USB powered.
DT9837A has the ability to read the value of tachometer counter 1 in the analog input data Stream, allowing you to precisely correlate tachometer measurements with analog input measurements.
Also,DT9837A support for reading analog output values in the analog input data Stream, allowing you to correlate input and output values. RJ45 synchronization connector to synchronize acquisition on up to four modules.
Analog output subsystem (DT9837A)
*One 24-bit D/A converter
*Single value, waveform and continuous streaming output
*programmable output rate from 10 kS/s to 52.734 kS/s
*Output range of +/- 10V
*+/- 3 mA output current
*Software-programmable trigger source (software trigger, external digital trigger, or analog threshold trigger) to start the analog output operation
*View all specifications for DT9837 series click here
*View manual for DT9837 series click here
Specifications:
FOR MODEL **** DT9837A****
# of Analog Inputs
4 single-ended, simultaneous channels
Resolution
24-bit
Max sample rate/ch analog input
52.7 kS/s (analog input)
Threshold Trigger
Programmable
Tachometer
yes
Analog Output
1 channel, Waveform streaming
Max sample rate analog output
52.7 kS/s
