Acquisition & Control on PC | USB Modules | DT9874-00T-16R-00V
Detailed features:

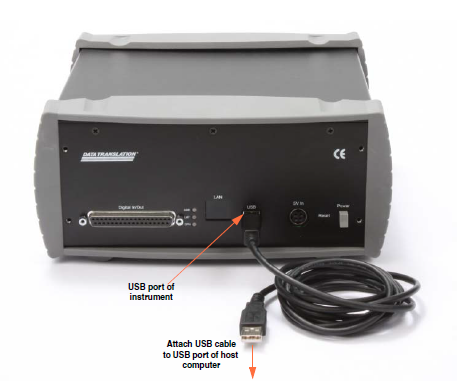

MEASURpoint USB Instrument; with 16 RTD inputs
DT9874 9= USB DT8874 8= Ethernet
DT9874-00T-00R-00V
T = # thermocouple inputs
R = # RTD inputs
V = # voltage inputs
MEASURpoint data acquisition (DAQ) ultra-accurate instruments, are available as a USB or Ethernet. They provide simultaneous analog input along with any combination of isolated temperature, resistance and voltage measurements, depending of the model chosen. This device features one A/D per channel and auto calibration in a rugged half rack enclosure for immediate productivity.
MEASURpoint includes the QuickDAQ application to configure and acquire temperature, resistance and voltage channels; also to display, log, analyze and export data to other formats, including Excel.
*View all specifications for DT9874 series click here
MEASURpoint USB Instrument; with 16 RTD inputs
DT9874 9= USB DT8874 8= Ethernet
DT9874-00T-00R-00V
T = # thermocouple inputs
R = # RTD inputs
V = # voltage inputs
MEASURpoint data acquisition (DAQ) ultra-accurate instruments, are available as a USB or Ethernet. They provide simultaneous analog input along with any combination of isolated temperature, resistance and voltage measurements, depending of the model chosen. This device features one A/D per channel and auto calibration in a rugged half rack enclosure for immediate productivity.
MEASURpoint includes the QuickDAQ application to configure and acquire temperature, resistance and voltage channels; also to display, log, analyze and export data to other formats, including Excel.
*View all specifications for DT9874 series click here
Specifications:
FOR MODEL **** DT9874-00T-16R-00V****
INTERFACE TYPE
USB
RTD INPUT CHANNELS
16
RESOLUTION
24 BIT
MAX SAMPLE RANGE
10 S/s/ch
SAMPLING
SIMULTANEOUS
SENSOR
VOLTAGE
DIGITAL I/O CHANNELS
16
