Acquisition & Control on PC | USB Modules | MCC 128
Detailed features:

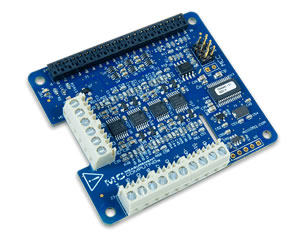

Raspberry Pi Voltage Measurement HAT
Hardware Features:
- The MCC 128 HAT provides 8 SE/4 DIFF analog inputs for voltage measurements. Up to eight MCC HATs can be stacked onto one Raspberry Pi.
- Eight 16-bit voltage inputs
-Sample rate up to 100 kS/s
- ±10V, ±5V,±2V, ±1V Selectable Input Range
- Onboard sample buffers allow high-speed acquisition
- External scan clock I/O
- External digital trigger input
- Screw terminal connections
- Ability to stack up to eight MCC HATs onto a single Raspberry Pi for a maximum throughput of 320 kS/s
Universal Library programming language support for Linux
Raspberry Pi Voltage Measurement HAT
Hardware Features:
- The MCC 128 HAT provides 8 SE/4 DIFF analog inputs for voltage measurements. Up to eight MCC HATs can be stacked onto one Raspberry Pi.
- Eight 16-bit voltage inputs
-Sample rate up to 100 kS/s
- ±10V, ±5V,±2V, ±1V Selectable Input Range
- Onboard sample buffers allow high-speed acquisition
- External scan clock I/O
- External digital trigger input
- Screw terminal connections
- Ability to stack up to eight MCC HATs onto a single Raspberry Pi for a maximum throughput of 320 kS/s
Universal Library programming language support for Linux
Specifications:
# of Analog Inputs
8
Resolution
16 bits
Bus Type
Raspberry HAT
Max sample rate
100 kS/s
