INSTRUNET i555 STARTER SYSTEMUsb 2.0 High Speed Data Acquisition Hardware for Windows ? Xp Sp2, Vista or 7 (Xp/Vs/7/8)InstruNet Software2x Precision Voltage Outputs (±10V, 14bit D/A)2x Voltage Outputs (0.. 10V, 8bit D/A)4x Universal Digital I/O (20mA sink, -10V..30V)Connect Directly To Sensors: Voltage, Thermocouple, Thermistor, RTD, Load Cell, Strain Gage, Potentiometer, Current, ResistanceEasily expand via 2 free slots in 4 slot i4xx Card CageThe i555 includes the following products: i240, i430, i510, i400, i410, i312.

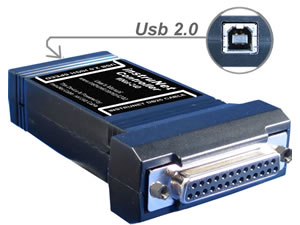

MODEL i240 USB 2.0 INSTRUNET CONTROLLER The i240 USB instruNet Controller is used to connect a Windows ≥ Xp Sp2 computer to an instruNet network via the USB 2.0 High Speed bus (480M bits/sec). An instruNet network consists of i4xx Card Cages and i100 boxes which are daisy-chained together. The i240 requires an external power supply (e.g. iNet-312.8, sold separately) and a computer with one free Usb 2.0 High Speed (480M) port. Typical Application In a typical application, the i240 controller interfaces an i4xx Card Cage to a Windows computer, as illustrated.

MODEL i330 INSTRUNET OPTICAL ISOLATOR The Model 330 Electrical Isolator provides 1000 Volts of optical isolation at one point within an instruNet network. This is often used to eliminate ground loops between the computer and items under test, and to reduce noise that is transmitted from the computer to sensors. When measuring small voltages (e.g.

MODEL i410 INSTRUNET INTERFACE CARD The i410 card connects an i4xx Card Cage to a Windows computer via an instruNet i240 USB, i200 PCI or i230 PCMCIA controller card. The i410 plugs into the left-most slot (slot #1) of an i4xx Card cage. One and only one i410 is required per i4xx card cage when working with i2x0 controllers. The i410 provides the following features:Two Db25 connectors allow daisy-chaining multiple i4xx Card Cage and i100 devices to one i2x0 controller card. Front panel red power light shows presence of 5V, 12V, and -12V power. Front panel green I/O light blinks when computer communicates with card cage. Includes one Db25 Male to Female 3 meter (10ft) Cable.

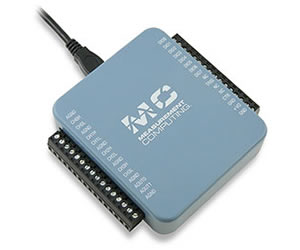

Low cost 16-bit USB DAQ devices Hardware: 8 single-ended/4 differential analog inputs 16-bit Resolution) Up to 50 kilosample/second sample rate 2 16-bit analog outputs 8 bits of DIO Software: Included with hardware: TracerDAQTM Universal Library LabVIEWTM drivers and VIs Fully supported by: DASYLab®

Low cost 16-bit USB DAQ devices Hardware: 8 single-ended/4 differential analog inputs 16-bit Resolution) Up to 100 kilosample/second sample rate 2 16-bit analog outputs 8 bits of DIO Software: Included with hardware: TracerDAQTM Universal Library LabVIEWTM drivers and VIs Fully supported by: DASYLab®

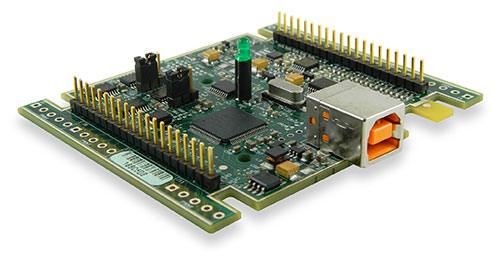

OEM Version of USB-1208FS-Plus DAQ module with 8 analog input channels, up to 12-bit resolution, 50 kS/s, two D/A outputs and 16 DIO bits Hardware: 4 differential/8 single-ended analog inputs 50 kilosample/second sample rate 2 analog outputs 16 bits of DIO Board only; No case; no cable

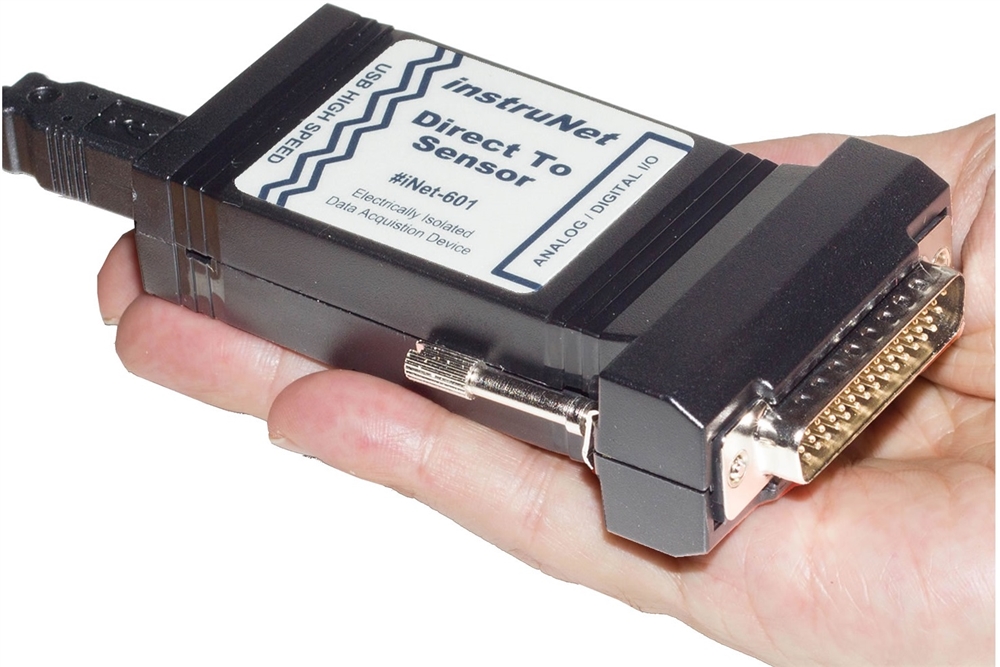

MODEL i600: Tiny USB DAQ for Direct Sensor Measurements The instruNet i60x is a Tiny USB Data Acquisition System with 16se/8di Channels and an extremely accurate 24-bit A/D Converter that connects sensors directly to a Windows Computer. The i601 is the most accurate and lowest cost electrically-isolated 8channel system in the world.
