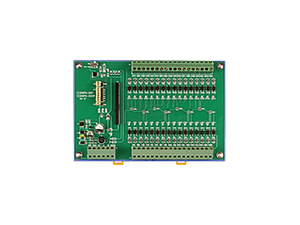

32-channel Digital Input Module Functional Description The FR-8/16/32P has 8/16/32-channel isolated digital input. Not like traditional digital I/O board, the FR series I/O module has an FRnet interface. It can be used as a distributed remote I/O module or a MagicWire module. The user should select the correct setting when using these functions. The user can daisy chain several FRnet modules together. Via FRnet, the FRnet modules can extend the remote I/O of PC, PAC, £gPAC and PLC easily. Further information about the networking of FR-8/6/32P, refer to our I-7188EF, I-8122, FRB-100/200. Applications Factory Automation Building automation Energy management Agriculture automation Specifications Communication speed: 250K bps Communication distance: 400m max Number of channels: 8/16/32 ( FR-8/16/32P) Digital Logic Level Input low voltage: 0 ~ +/-1V Input high voltage: 3.5 VDC ~ 30 VDC Input impedance: 3K; 1/4W Response time: 1 KHz max Power Requirement: 10~30V Wire cable: CPEV 0.9S (2P Twisted-pair wire) Power consumption: 24V@25mA(max) ( FR-8P) 24V@75mA(max) ( FR-16P) 24V@140mA(max) ( FR-32P) Operating temperature: -25¢XC ~ +75¢XC Operating humidity: 10% ~ 90% RH, non-condensing Storage temperature: -30¢XC ~ +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Dimensions: 103 mm x 86 mm ( FR-8P) 147 mm x 76 mm (FR-16P) 173 mm x 117 mm (FR-32P) Features Built-in FRnet interface Real I/O synchronization Innovative token-stream technology Support Broadcasting Real Deterministic Control Fixed Scan time: 256 points @ 2.88 ms Each bank consists of 8 input channels and has its own ground reference ASIC design without CPU Memory-map I/O No protocol and no software overhead Easy Programming and OS-independent Din-rail mounting Two-Wire Cabling Jumper setting Interface circuit

8-channel open collector output module Functional Description The FR-8/16/32C has 8/16/32-channel open collector output. Not like traditional digital I/O board, the FR series I/O module has an FRnet interface. It can be used as a distributed remote I/O module or a MagicWire module. The user should select the correct setting when using these modules. The user can daisy chain several FRnet modules together. Via FRnet, the FRnet modules can work with PC, PAC, £gPAC and PLC easily. Further information about the networking of FR-8/6/32C, refer to our I-7188EF, I-8122, FRB-100/200. Applications Factory Automation Building automation Energy management Agriculture automation Specifications Communication speed: 250K bps Communication distance: 400m max Number of channels: 8/16/32 ( FR-8/16/32C) Open-collector: each chanenl 30V@100mA Power Requirement: 10~30V Wire cable: CPEV 0.9S (2P Twisted-pair wire) Power consumption: 24V@25mA(max) ( FR-8C) 24V@75mA(max) ( FR-16C) 24V@140mA(max) ( FR-32C) Operating temperature: -25¢XC ~ +75¢XC Operating humidity: 10% ~ 90% RH, non-condensing Storage temperature: -30¢XC ~ +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Dimensions: 103 mm x 86 mm ( FR-8C) 147 mm x 76 mm (FR-16C) 173 mm x 117 mm (FR-32C) Features Built-in FRnet interface Real I/O synchronization Innovative token-stream technology Support Broadcasting Real Deterministic Control Fixed Scan time: 256 points @ 2.88 ms Each bank consists of 8 input channels and has its own ground reference ASIC design without CPU Memory-map I/O No protocol and no software overhead Easy Programming and OS-independent Din-rail mounting Two-Wire Cabling Jumper setting Interface circuit

16-channel open collector output module Functional Description The FR-8/16/32C has 8/16/32-channel open collector output. Not like traditional digital I/O board, the FR series I/O module has an FRnet interface. It can be used as a distributed remote I/O module or a MagicWire module. The user should select the correct setting when using these modules. The user can daisy chain several FRnet modules together. Via FRnet, the FRnet modules can work with PC, PAC, £gPAC and PLC easily. Further information about the networking of FR-8/6/32C, refer to our I-7188EF, I-8122, FRB-100/200. Applications Factory Automation Building automation Energy management Agriculture automation Specifications Communication speed: 250K bps Communication distance: 400m max Number of channels: 8/16/32 ( FR-8/16/32C) Open-collector: each chanenl 30V@100mA Power Requirement: 10~30V Wire cable: CPEV 0.9S (2P Twisted-pair wire) Power consumption: 24V@25mA(max) ( FR-8C) 24V@75mA(max) ( FR-16C) 24V@140mA(max) ( FR-32C) Operating temperature: -25¢XC ~ +75¢XC Operating humidity: 10% ~ 90% RH, non-condensing Storage temperature: -30¢XC ~ +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Dimensions: 103 mm x 86 mm ( FR-8C) 147 mm x 76 mm (FR-16C) 173 mm x 117 mm (FR-32C) Features Built-in FRnet interface Real I/O synchronization Innovative token-stream technology Support Broadcasting Real Deterministic Control Fixed Scan time: 256 points @ 2.88 ms Each bank consists of 8 input channels and has its own ground reference ASIC design without CPU Memory-map I/O No protocol and no software overhead Easy Programming and OS-independent Din-rail mounting Two-Wire Cabling Jumper setting Interface circuit

32-channel open collector output module Functional Description The FR-8/16/32C has 8/16/32-channel open collector output. Not like traditional digital I/O board, the FR series I/O module has an FRnet interface. It can be used as a distributed remote I/O module or a MagicWire module. The user should select the correct setting when using these modules. The user can daisy chain several FRnet modules together. Via FRnet, the FRnet modules can work with PC, PAC, £gPAC and PLC easily. Further information about the networking of FR-8/6/32C, refer to our I-7188EF, I-8122, FRB-100/200. Applications Factory Automation Building automation Energy management Agriculture automation Specifications Communication speed: 250K bps Communication distance: 400m max Number of channels: 8/16/32 ( FR-8/16/32C) Open-collector: each chanenl 30V@100mA Power Requirement: 10~30V Wire cable: CPEV 0.9S (2P Twisted-pair wire) Power consumption: 24V@25mA(max) ( FR-8C) 24V@75mA(max) ( FR-16C) 24V@140mA(max) ( FR-32C) Operating temperature: -25¢XC ~ +75¢XC Operating humidity: 10% ~ 90% RH, non-condensing Storage temperature: -30¢XC ~ +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Dimensions: 103 mm x 86 mm ( FR-8C) 147 mm x 76 mm (FR-16C) 173 mm x 117 mm (FR-32C) Features Built-in FRnet interface Real I/O synchronization Innovative token-stream technology Support Broadcasting Real Deterministic Control Fixed Scan time: 256 points @ 2.88 ms Each bank consists of 8 input channels and has its own ground reference ASIC design without CPU Memory-map I/O No protocol and no software overhead Easy Programming and OS-independent Din-rail mounting Two-Wire Cabling Jumper setting Interface circuit

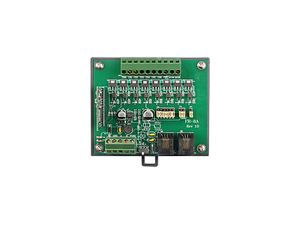

8-channel Digital Input Module Functional Description The FR-8/16/32A has 8/16/32-channel open drain output. Not like traditional relay output board, FR series I/O module has an FRnet interface,the FR- 8/16/32A can be used as a distributed remote I/O module or a MagicWire module.The user should select the correct setting when using these modules. Refer to jumper setting. The users can daisy chain several FRnet modules together. Via FRnet, the FRnet modules can work with PC, PAC, £gPAC and PLC easily. Further information about the networking of FR-8/16/32A; refer to our I-7188EF, I- 8122, FRB-100/200. Applications Factory Automation Building automation Energy management Agriculture automation Specifications Communication speed: 250K bps Communication distance: 400m max Number of channels: 8/16/32 ( FR-8/16/32A) Operating voltage: 12 ~ 45 V Current source: 650mA/channel Short-circuit protection Overload protection Overvoltage protection Undervoltage shutdown with auto-restart and hysteresis Thermal shutdown with restart Current limit Switch inductive loads Power Requirement: 10~30V Wire cable: CPEV 0.9S (2P Twisted-pair wire) Power consumption: 24V@22mA(max) ( FR-8A) 24V@75mA(max) ( FR-16A) 24V@140mA(max) ( FR-32A) Operating temperature: -25¢XC ~ +75¢XC Operating humidity: 10% ~ 90% RH, non-condensing Storage temperature: -30¢XC ~ +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Dimensions: 103 mm x 86 mm ( FR-8A) 147 mm x 76 mm (FR-16A) 173 mm x 117 mm (FR-32A) Features Built-in FRnet interface Real I/O synchronization Innovative token-stream technology Support Broadcasting Real Deterministic Control Fixed Scan time: 256 points @ 2.88 ms Each bank consists of 8 input channels and has its own ground reference ASIC design without CPU Memory-map I/O No protocol and no software overhead Easy Programming and OS-independent Din-rail mounting Two-Wire Cabling Jumper setting Interface circuit

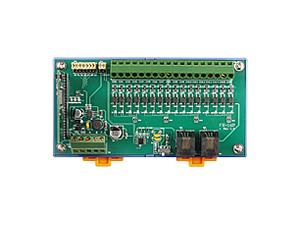

16-channel Digital Input Module Functional Description The FR-8/16/32A has 8/16/32-channel open drain output. Not like traditional relay output board, FR series I/O module has an FRnet interface,the FR- 8/16/32A can be used as a distributed remote I/O module or a MagicWire module.The user should select the correct setting when using these modules. Refer to jumper setting. The users can daisy chain several FRnet modules together. Via FRnet, the FRnet modules can work with PC, PAC, £gPAC and PLC easily. Further information about the networking of FR-8/16/32A; refer to our I-7188EF, I- 8122, FRB-100/200. Applications Factory Automation Building automation Energy management Agriculture automation Specifications Communication speed: 250K bps Communication distance: 400m max Number of channels: 8/16/32 ( FR-8/16/32A) Operating voltage: 12 ~ 45 V Current source: 650mA/channel Short-circuit protection Overload protection Overvoltage protection Undervoltage shutdown with auto-restart and hysteresis Thermal shutdown with restart Current limit Switch inductive loads Power Requirement: 10~30V Wire cable: CPEV 0.9S (2P Twisted-pair wire) Power consumption: 24V@22mA(max) ( FR-8A) 24V@75mA(max) ( FR-16A) 24V@140mA(max) ( FR-32A) Operating temperature: -25¢XC ~ +75¢XC Operating humidity: 10% ~ 90% RH, non-condensing Storage temperature: -30¢XC ~ +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Dimensions: 103 mm x 86 mm ( FR-8A) 147 mm x 76 mm (FR-16A) 173 mm x 117 mm (FR-32A) Features Built-in FRnet interface Real I/O synchronization Innovative token-stream technology Support Broadcasting Real Deterministic Control Fixed Scan time: 256 points @ 2.88 ms Each bank consists of 8 input channels and has its own ground reference ASIC design without CPU Memory-map I/O No protocol and no software overhead Easy Programming and OS-independent Din-rail mounting Two-Wire Cabling Jumper setting Interface circuit

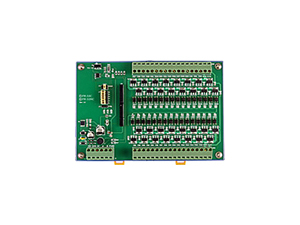

32-channel Digital Input Module Functional Description The FR-8/16/32A has 8/16/32-channel open drain output. Not like traditional relay output board, FR series I/O module has an FRnet interface,the FR- 8/16/32A can be used as a distributed remote I/O module or a MagicWire module.The user should select the correct setting when using these modules. Refer to jumper setting. The users can daisy chain several FRnet modules together. Via FRnet, the FRnet modules can work with PC, PAC, £gPAC and PLC easily. Further information about the networking of FR-8/16/32A; refer to our I-7188EF, I- 8122, FRB-100/200. Applications Factory Automation Building automation Energy management Agriculture automation Specifications Communication speed: 250K bps Communication distance: 400m max Number of channels: 8/16/32 ( FR-8/16/32A) Operating voltage: 12 ~ 45 V Current source: 650mA/channel Short-circuit protection Overload protection Overvoltage protection Undervoltage shutdown with auto-restart and hysteresis Thermal shutdown with restart Current limit Switch inductive loads Power Requirement: 10~30V Wire cable: CPEV 0.9S (2P Twisted-pair wire) Power consumption: 24V@22mA(max) ( FR-8A) 24V@75mA(max) ( FR-16A) 24V@140mA(max) ( FR-32A) Operating temperature: -25¢XC ~ +75¢XC Operating humidity: 10% ~ 90% RH, non-condensing Storage temperature: -30¢XC ~ +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Dimensions: 103 mm x 86 mm ( FR-8A) 147 mm x 76 mm (FR-16A) 173 mm x 117 mm (FR-32A) Features Built-in FRnet interface Real I/O synchronization Innovative token-stream technology Support Broadcasting Real Deterministic Control Fixed Scan time: 256 points @ 2.88 ms Each bank consists of 8 input channels and has its own ground reference ASIC design without CPU Memory-map I/O No protocol and no software overhead Easy Programming and OS-independent Din-rail mounting Two-Wire Cabling Jumper setting Interface circuit

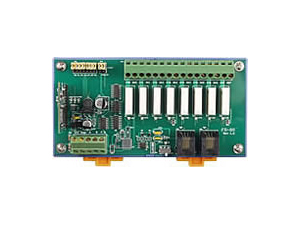

8-channel Relay Output Module Functional Description The FR-32R has 32-channel relay output. Not like traditional relay output board, the FR series I/O module has an FRnet interface.The FR I/O module can be used as a distributed remote I/O module or a MagicWire module.The user should select the correct setting when using these modules. Refer to jumper setting. The user can daisy several FRnet modules together. Via FRnet, the FRnet modules can work with PC, PAC, £gPAC and PLC easily. Further information about the networking of FR- 8/16/32R; refer to related literatures of I-7188EF, I-8122, FRB-100/200. Applications Factory Automation Building automation Energy management Agriculture automation Specifications Communication speed: 250K bps Communication distance: 400m max Number of channels: 8/16/32 ( FR-8/16/32R) Form A relay Type: SPST Nominal load: 3A/125Vdc, 3A/270Vac Max switching power:1250VA, 150W Max switching voltage: 125Vdc, 270Vac Max switching current: 5A Life expectancy: mechanical; electrical Resistive load: 100,000 ops. min; 250Vac/30Vdc@3A Mechanically: 20,000,000 ops. at no load. Release time: 5ms Control logic: TTL Low, Relay on. Power Requirement: 10~30V Wire cable: CPEV 0.9S (2P Twisted-pair wire) Power consumption: 24V@25mA(max) ( FR-8R) 24V@75mA(max) ( FR-16R) 24V@240mA(max) ( FR-32R) Operating temperature: -25¢XC ~ +75¢XC Operating humidity: 10% ~ 90% RH, non-condensing Storage temperature: -30¢XC ~ +85¢XC Storage humidity: 5% ~ 95% RH, non-condensing Dimensions: 147 mm x 76 mm ( FR-8R) 173 mm x 117 mm (FR-16R) 173 mm x 117 mm (FR-32R) Features Built-in FRnet interface Real I/O synchronization Innovative token-stream technology Support Broadcasting Real Deterministic Control Fixed Scan time: 256 points @ 2.88 ms Each bank consists of 8 input channels and has its own ground reference ASIC design without CPU Memory-map I/O No protocol and no software overhead Easy Programming and OS-independent Din-rail mounting Two-Wire Cabling Jumper setting Interface circuit
