Industrial Computers | Embedded PC | NTE-210
Embedded Computer
300 Mhz CPU, 128 MB RAM, dual Ethernet ports, dual USB ports, dual RS 232 ports, one VGA port, one Compact Flash slot, one Keyboard port, one Mouse port, one PC-104 slot, one Printer port, and 20 GB Hard disk

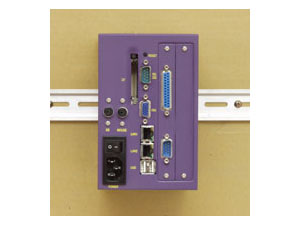

The NTE-210 is a slim rugged DIN-rail mounting or wall-mounting or designed for space limited applications. It features one NS GX1-300 MHz CPU, 128MB SDRAM, two Ethernet ports, one DB15 VGA port, one PS/2 Keyboard, one PS/2 mouse, one CompactFlash socket and one AC power input socket. It also supports one PC-104 socket internally.
Since NTE-210 has one PC 104 socket, users can add any PC/104 module. We can modify the case for OEM or ODM case.
- IBM PC/AT compatible
- Fan-less operation
- Built-in power supply
- Low power consumption

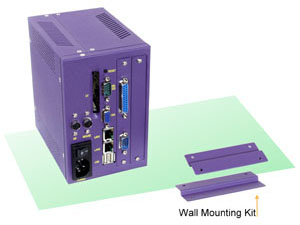

- DIN-rail mounting or wall mounting
- CPU : GX1-300MHz
- One RS-232 port
- Two USB port
- Dual Ethernet socket
- One CompactFlash socket
- One PS/2 keyboard, one PS/2 Mouse
- One D-sub 15-pinVGA connector
- Support 128 MB SDRAM
- Applications
- Factory automation
- Machine control
- Web Server
Specifications:
System memory
One 144-pin 128MB SDRAM
BIOS
AWARD 256KB Flash memory
Display Controller
MediaGx processor has applied the UMA technology that provieds 1.5-4MB display memory, to be set up by BIOS Support non-interlaced CRT monitors resolutions up to1280x1024@256 colors or 1024x768@16bpp
IDE interface
The IDE supports two PCI Enhanced IDE hard drives
Serial ports
Two RS-232 ports
PS/2 Mouse/Keyboard connector
A 6-pin header connector is located on the mounting bracket for easy connection to a PS/2 keyboard or PS/2 mouse
Operating temperature
0-50°C
