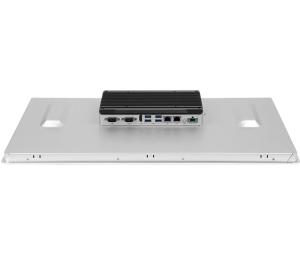

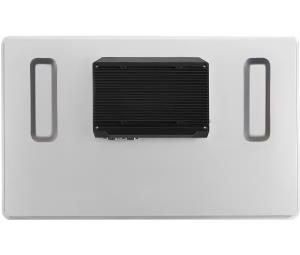

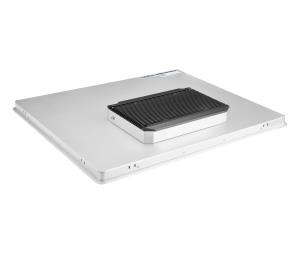

Industrial Computers | Industrial LCD | iTPC-HXXX2
U l t r a - C o m p a c t P a n e l P C
21.5” Full HD compact Panel PC
Intel® Celeron J3455, option Celeron J1900， i5-7200U CPU
Modular, Fanless design
Supports VESA mounting and Panel mounting
OS: Windows 7, Windows8, Windows10, Linux
Specifications:
CPU
Supports Intel® Core i5-7200U / Celeron J1900 / J3455
ChipSet
Intel Apollo Lake/Bay Trail/Integrated PCH-LP
RAM
Support DDR3L-1333 MHz, 1 * 204-pin SODIMM, Up to 8GB
Mass Storage
1 * mSATA
COM Port
2 x RS-232(RS-485 in option) Interface with surge protection
USB
1* USB3.0 + 3* USB2.0
LAN Controller
2x Intel i211 or i225 Gbe LAN controller, RJ-45
Power
DC Input: 12-24V DC; 46.4 Watt Max. Power consumption
