Low Profile 32MB DiskOnChip CompatibilityDiskOnChip 2000 DIP is pinout and s/w compatible with 8M byte DiskOnChip Millennium.Host O/S SupportWindows CE, Windows XP, VxWorks, Linux, QNX, DOS and more.Capacity16 Mbytes - 1 GbytesPerformanceSustained Read Speed: 1.4 Mbytes/secSustained Write Speed: 500 Kbytes/secBurst Transfer Read Rate: 5 Mbytes/secBurst Transfer Write Rate: 5 Mbytes/secPackage Type32-pin DIP.Dimensions in MillimetersLow profile: 43.75 x 18.10 x 5.80High profile: 45.60 x 18.80 x 13.50Current Consumption----------------------------------------------- 3.3V 5VStand-by current - Low Profile ------40µA 60µAStand-by current - High Profile ----- 120µA 240µAActive Supply Current ------------------ 30mA 40mASupply Voltage3.3V or 5VOperating Temperature0¢XC to +70¢XC (Commercial)-40¢XC to +85¢XC (Extended)Storage Temperature-55¢XC to +100¢XC (Commercial)Humidity10% - 90% relative, non-condensingEDC/ECCThe enhanced Reed-Solomon EDC/ECC logic provides the following detection and correction capability for each 512-byte block of data: Corrects up to two 10-bit symbols, including two random bit errorsCorrects single bursts up to 11 bitsDetects single bursts up to 31 bits and double bursts up to 11 bitsDetects up to 4 random bit errors

Low Profile 384MB DiskOnChip CompatibilityDiskOnChip 2000 DIP is pinout and s/w compatible with 8M byte DiskOnChip Millennium.Host O/S SupportWindows CE, Windows XP, VxWorks, Linux, QNX, DOS and more.Capacity16 Mbytes - 1 GbytesPerformanceSustained Read Speed: 1.4 Mbytes/secSustained Write Speed: 500 Kbytes/secBurst Transfer Read Rate: 5 Mbytes/secBurst Transfer Write Rate: 5 Mbytes/secPackage Type32-pin DIP.Dimensions in MillimetersLow profile: 43.75 x 18.10 x 5.80High profile: 45.60 x 18.80 x 13.50Current Consumption----------------------------------------------- 3.3V 5VStand-by current - Low Profile ------40µA 60µAStand-by current - High Profile ----- 120µA 240µAActive Supply Current ------------------ 30mA 40mASupply Voltage3.3V or 5VOperating Temperature0¢XC to +70¢XC (Commercial)-40¢XC to +85¢XC (Extended)Storage Temperature-55¢XC to +100¢XC (Commercial)Humidity10% - 90% relative, non-condensingEDC/ECCThe enhanced Reed-Solomon EDC/ECC logic provides the following detection and correction capability for each 512-byte block of data: Corrects up to two 10-bit symbols, including two random bit errorsCorrects single bursts up to 11 bitsDetects single bursts up to 31 bits and double bursts up to 11 bitsDetects up to 4 random bit errors

Low Profile 48MB DiskOnChip CompatibilityDiskOnChip 2000 DIP is pinout and s/w compatible with 8M byte DiskOnChip Millennium.Host O/S SupportWindows CE, Windows XP, VxWorks, Linux, QNX, DOS and more.Capacity16 Mbytes - 1 GbytesPerformanceSustained Read Speed: 1.4 Mbytes/secSustained Write Speed: 500 Kbytes/secBurst Transfer Read Rate: 5 Mbytes/secBurst Transfer Write Rate: 5 Mbytes/secPackage Type32-pin DIP.Dimensions in MillimetersLow profile: 43.75 x 18.10 x 5.80High profile: 45.60 x 18.80 x 13.50Current Consumption----------------------------------------------- 3.3V 5VStand-by current - Low Profile ------40µA 60µAStand-by current - High Profile ----- 120µA 240µAActive Supply Current ------------------ 30mA 40mASupply Voltage3.3V or 5VOperating Temperature0¢XC to +70¢XC (Commercial)-40¢XC to +85¢XC (Extended)Storage Temperature-55¢XC to +100¢XC (Commercial)Humidity10% - 90% relative, non-condensingEDC/ECCThe enhanced Reed-Solomon EDC/ECC logic provides the following detection and correction capability for each 512-byte block of data: Corrects up to two 10-bit symbols, including two random bit errorsCorrects single bursts up to 11 bitsDetects single bursts up to 31 bits and double bursts up to 11 bitsDetects up to 4 random bit errors

Low Profile 64MB DiskOnChip CompatibilityDiskOnChip 2000 DIP is pinout and s/w compatible with 8M byte DiskOnChip Millennium.Host O/S SupportWindows CE, Windows XP, VxWorks, Linux, QNX, DOS and more.Capacity16 Mbytes - 1 GbytesPerformanceSustained Read Speed: 1.4 Mbytes/secSustained Write Speed: 500 Kbytes/secBurst Transfer Read Rate: 5 Mbytes/secBurst Transfer Write Rate: 5 Mbytes/secPackage Type32-pin DIP.Dimensions in MillimetersLow profile: 43.75 x 18.10 x 5.80High profile: 45.60 x 18.80 x 13.50Current Consumption----------------------------------------------- 3.3V 5VStand-by current - Low Profile ------40µA 60µAStand-by current - High Profile ----- 120µA 240µAActive Supply Current ------------------ 30mA 40mASupply Voltage3.3V or 5VOperating Temperature0¢XC to +70¢XC (Commercial)-40¢XC to +85¢XC (Extended)Storage Temperature-55¢XC to +100¢XC (Commercial)Humidity10% - 90% relative, non-condensingEDC/ECCThe enhanced Reed-Solomon EDC/ECC logic provides the following detection and correction capability for each 512-byte block of data: Corrects up to two 10-bit symbols, including two random bit errorsCorrects single bursts up to 11 bitsDetects single bursts up to 31 bits and double bursts up to 11 bitsDetects up to 4 random bit errors

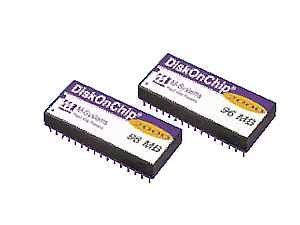

Low Profile 96MB DiskOnChip CompatibilityDiskOnChip 2000 DIP is pinout and s/w compatible with 8M byte DiskOnChip Millennium.Host O/S SupportWindows CE, Windows XP, VxWorks, Linux, QNX, DOS and more.Capacity16 Mbytes - 1 GbytesPerformanceSustained Read Speed: 1.4 Mbytes/secSustained Write Speed: 500 Kbytes/secBurst Transfer Read Rate: 5 Mbytes/secBurst Transfer Write Rate: 5 Mbytes/secPackage Type32-pin DIP.Dimensions in MillimetersLow profile: 43.75 x 18.10 x 5.80High profile: 45.60 x 18.80 x 13.50Current Consumption----------------------------------------------- 3.3V 5VStand-by current - Low Profile ------40µA 60µAStand-by current - High Profile ----- 120µA 240µAActive Supply Current ------------------ 30mA 40mASupply Voltage3.3V or 5VOperating Temperature0¢XC to +70¢XC (Commercial)-40¢XC to +85¢XC (Extended)Storage Temperature-55¢XC to +100¢XC (Commercial)Humidity10% - 90% relative, non-condensingEDC/ECCThe enhanced Reed-Solomon EDC/ECC logic provides the following detection and correction capability for each 512-byte block of data: Corrects up to two 10-bit symbols, including two random bit errorsCorrects single bursts up to 11 bitsDetects single bursts up to 31 bits and double bursts up to 11 bitsDetects up to 4 random bit errors

High Profile 1024MB DiskOnChip CompatibilityDiskOnChip 2000 DIP is pinout and s/w compatible with 8M byte DiskOnChip Millennium.Host O/S SupportWindows CE, Windows XP, VxWorks, Linux, QNX, DOS and more.Capacity16 Mbytes - 1 GbytesPerformanceSustained Read Speed: 1.4 Mbytes/secSustained Write Speed: 500 Kbytes/secBurst Transfer Read Rate: 5 Mbytes/secBurst Transfer Write Rate: 5 Mbytes/secPackage Type32-pin DIP.Dimensions in MillimetersLow profile: 43.75 x 18.10 x 5.80High profile: 45.60 x 18.80 x 13.50Current Consumption----------------------------------------------- 3.3V 5VStand-by current - Low Profile ------40µA 60µAStand-by current - High Profile ----- 120µA 240µAActive Supply Current ------------------ 30mA 40mASupply Voltage3.3V or 5VOperating Temperature0￠XC to +70￠XC (Commercial)-40￠XC to +85￠XC (Extended)Storage Temperature-55￠XC to +100￠XC (Commercial)Humidity10% - 90% relative, non-condensingEDC/ECCThe enhanced Reed-Solomon EDC/ECC logic provides the following detection and correction capability for each 512-byte block of data: Corrects up to two 10-bit symbols, including two random bit errorsCorrects single bursts up to 11 bitsDetects single bursts up to 31 bits and double bursts up to 11 bitsDetects up to 4 random bit errors

High Profile 192MB DiskOnChip CompatibilityDiskOnChip 2000 DIP is pinout and s/w compatible with 8M byte DiskOnChip Millennium.Host O/S SupportWindows CE, Windows XP, VxWorks, Linux, QNX, DOS and more.Capacity16 Mbytes - 1 GbytesPerformanceSustained Read Speed: 1.4 Mbytes/secSustained Write Speed: 500 Kbytes/secBurst Transfer Read Rate: 5 Mbytes/secBurst Transfer Write Rate: 5 Mbytes/secPackage Type32-pin DIP.Dimensions in MillimetersLow profile: 43.75 x 18.10 x 5.80High profile: 45.60 x 18.80 x 13.50Current Consumption----------------------------------------------- 3.3V 5VStand-by current - Low Profile ------40µA 60µAStand-by current - High Profile ----- 120µA 240µAActive Supply Current ------------------ 30mA 40mASupply Voltage3.3V or 5VOperating Temperature0￠XC to +70￠XC (Commercial)-40￠XC to +85￠XC (Extended)Storage Temperature-55￠XC to +100￠XC (Commercial)Humidity10% - 90% relative, non-condensingEDC/ECCThe enhanced Reed-Solomon EDC/ECC logic provides the following detection and correction capability for each 512-byte block of data: Corrects up to two 10-bit symbols, including two random bit errorsCorrects single bursts up to 11 bitsDetects single bursts up to 31 bits and double bursts up to 11 bitsDetects up to 4 random bit errors

High Profile 256MB DiskOnChip CompatibilityDiskOnChip 2000 DIP is pinout and s/w compatible with 8M byte DiskOnChip Millennium.Host O/S SupportWindows CE, Windows XP, VxWorks, Linux, QNX, DOS and more.Capacity16 Mbytes - 1 GbytesPerformanceSustained Read Speed: 1.4 Mbytes/secSustained Write Speed: 500 Kbytes/secBurst Transfer Read Rate: 5 Mbytes/secBurst Transfer Write Rate: 5 Mbytes/secPackage Type32-pin DIP.Dimensions in MillimetersLow profile: 43.75 x 18.10 x 5.80High profile: 45.60 x 18.80 x 13.50Current Consumption----------------------------------------------- 3.3V 5VStand-by current - Low Profile ------40µA 60µAStand-by current - High Profile ----- 120µA 240µAActive Supply Current ------------------ 30mA 40mASupply Voltage3.3V or 5VOperating Temperature0￠XC to +70￠XC (Commercial)-40￠XC to +85￠XC (Extended)Storage Temperature-55￠XC to +100￠XC (Commercial)Humidity10% - 90% relative, non-condensingEDC/ECCThe enhanced Reed-Solomon EDC/ECC logic provides the following detection and correction capability for each 512-byte block of data: Corrects up to two 10-bit symbols, including two random bit errorsCorrects single bursts up to 11 bitsDetects single bursts up to 31 bits and double bursts up to 11 bitsDetects up to 4 random bit errors
