PC Based Instruments | Digitizer | WS5-540XMS-W5

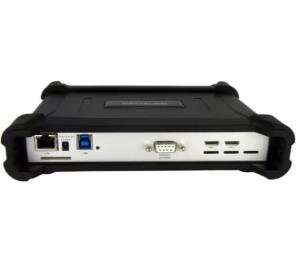

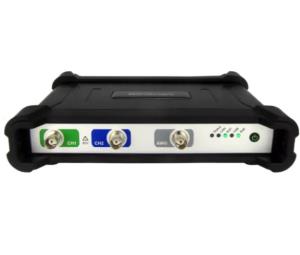

WiFiScope WS5-540 with 64M Samples Extended memory, Sure Connect and 5 years warranty added Options
With CDS Generator of up to 40MS/s
2-Channel Analog Inputs
Up to 500 MS/s max. Sample Rate
Selectable Resolution of 8/12 bits,14 bits, 16 bits
250 MHz bandwidth
(128KS On-Board memory per Channel, Standard Model)
1-Channel Arbitrary waveform generator
1uHz to 40 MHz sine, square and triangular waves
High fidelity signals with CDS Generator
240 MS/s, 14-bit, 64Msamples Arbitrary waves
The HandyScope HS5 comes standard with the versatile Multi Channel software that allows to do measurements in a quick and convenient way. With the software, the HandyScope HS5 can be operated as:
The captured data can be viewed in many different ways, in a single graph or in multiple views, each displaying the required property of the measured data. It also allows to perform mathematical operations on the measured data, like adding, subtracting, multiplying, integrating, differentiating, filtering etc. This can be as simple as adding two signals together and display the result in a graph, or it can be very complex. Complex mathematical operations can be performed by combining several mathematical operations. Measured data can be printed and saved to disk in various common data formats.
The Handyscope HS5 is available in 4 different models with an extended memory option
Specifications:
Sampling Rate
Up to 500MS/s
Resolution
8/12 bits, 14 bits or 16 bits selectable
Input ranges
200 mV .. 80 V full scale
Interface
WIFI / Ethernet / USB
Bandwidth
250 MHz
