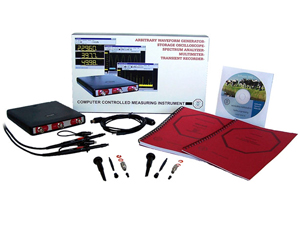

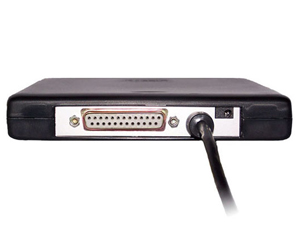

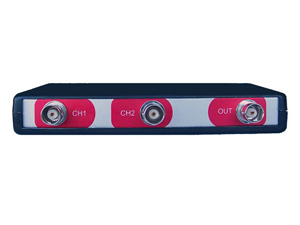

PC Based Instruments | Oscilloscope | HS3 (10 MHz)
Detailed features:
The Handyscope HS3 features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95 dB), 200 mV - 80 V full scale input range, 128 Ksamples record length per channel and a sampling frequency up to 100 MHz on both channels (100 MHz only in 8 bit resolution).
The Handyscope HS3 features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95 dB), 200 mV - 80 V full scale input range, 128 Ksamples record length per channel and a sampling frequency up to 100 MHz on both channels (100 MHz only in 8 bit resolution).
Specifications:
# of Analog Inputs
2 Analog Inputs
# of Analog Output
1 Analog Output, AWG
Resolution
16/14/12 bits Resolution
Sampling Rate
Max. sampling 10 MS/s
Bus Type
USB
