Detailed features:

HS4-10

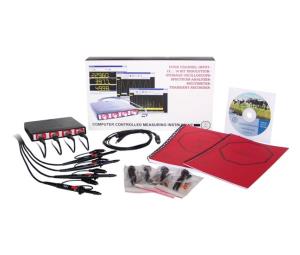

4 channel high resolution PC oscilloscope

This Professional powerful computer controlled USB oscilloscope features four input channels. The Handyscope HS4 oscilloscope features a user selectable 12 bit, 14 bit or 16 bit resolution (14 bit effective, SNR 95dB), 200 mV to 80V full scale input range and 128 Ksamples record length per channel. Four Handyscope HS4 oscilloscope models are available, with a maximum sampling rate of respectively 5 MHz, 10 MHz, 25 MHz or 50 MHz on all four channels simultaneously.

FAST CONTINUOUS STREAMING

Besides measuring in block mode, the Handyscope HS4 is also capable of performing continuous streaming measurements. This will create a continuous uninterrupted data Stream to the computer. The data can then be displayed on the screen and/or saved to disk.

combining multiple handyscope HS4s

With the Multi Channel oscilloscope software, you are not limited to number of channels of one oscilloscope. It is possible to combine two or more oscilloscopes to form a combined instrument. Once the instruments are combined, the resulting single oscilloscope works just like a normal oscilloscope. There is no limit to the number of channels in a combined oscilloscope.

Combining is possible with the following instruments:

* Wifiscope WS6

* Wifiscope WS5

* Handyscope HS6 DIFF

* Handyscope HS5

* Handyscope HS4 DIFF

* Handyscope HS4

* Handyscope HS3 (from serial number 14266)


View all ways to combine instruments click here

Base model:

Handyscope HS4-50 50 MS/s model
Handyscope HS4-25 25 MS/s model
Handyscope HS4-10 10 MS/s model
Handyscope HS4-5 5 MS/s model


View full specifications of HS4click here
