PC Based Instruments | Oscilloscope | TE6100
Detailed features:

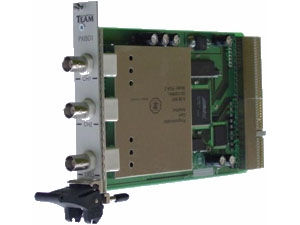

The TE6100 is the first 100 MS/sec measuring instrument that consists of a Digital Storage Oscilloscope, Spectrum analyzer, Transient recorder and Voltmeter. This new PXI based, compact measuring instrument, can solve almost every measurement problem. Analyzing signals is done with an 8-bit resolution and a maximum sampling speed of 100 MHz. The input ranges from 0.1 Volt full scale to 80 Volt full scale. The record length is 64K samples.
The TE6100 is the first 100 MS/sec measuring instrument that consists of a Digital Storage Oscilloscope, Spectrum analyzer, Transient recorder and Voltmeter. This new PXI based, compact measuring instrument, can solve almost every measurement problem. Analyzing signals is done with an 8-bit resolution and a maximum sampling speed of 100 MHz. The input ranges from 0.1 Volt full scale to 80 Volt full scale. The record length is 64K samples.
Specifications:
Resolution
8 bits Resolution
Sampling Rate
Max. sampling 100 MS/s
# of Analog Inputs
2 Analog Input
# of Analog Output
no Analog Output, AWG
Bus Type
PXI BUS
