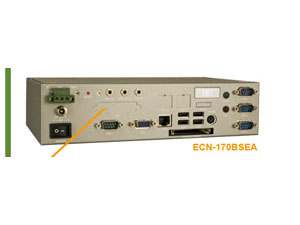

System Integration | Standard | ECN-170BSEC-WD-PM16G
Detailed features:
Fanless embedded system with NANO-8522G, Pentium M 1.6GHz CPU, FSB 400MHz, EPM-1056 4ch. video capturing, 9-36VDC in, sliver, RoHS SBC: NANO-8522G
Processor: Socket 479 Intel® Pentium® M with 400MHz FSB, up to 1.8GHz
System Chipset: lntel® 852GM + ICH4
System Memory: 1 x DDR 266/200MHz SO-DIMM socket support up to 1GB
Ethernet: 1 x 10/100/1000 Base-T, Intel® 82541PI
Display: CRT interface with DB-15 connector
USB:4 x USB 2.0
Serial Port: 3 x RS-232 (COM-1, 3, 4)
1 x RS-232/422/485 selectable (COM2)
Audio: Line-in, MIC-in, Line-out
Video Capturing: 4 ch. video capturing (EPM-1056)
Others: 4 x BNC for video capturing
Storage: 1 x CompactFlash socket for type I/II CompactFlash Disk
Power input: 12VDC* with DC jack and 3pin terminal block. WD series input voltage: 9V~36VDC
Chassis Construction: Heavy duty metal
Operating Temperature: 0°C ~50°C with industrial grade CompactFlash
Operating Shock: 3G acceleration peak to peak (11ms)
Operating Vibration: MIL-STD-810F 514.5C-1
3 axes, 10-500 Hz, 60min/axis. Z:1.04 Grms X:0.204 Grms Y:0.74 Grms
Weight (Net/ Gross): 1.9kg / 3.1kg
Dimensions (DxWxH): 250 x 62 x 150 (mm)
EMC: Meets CE, FCC Class A
Fanless embedded system with NANO-8522G, Pentium M 1.6GHz CPU, FSB 400MHz, EPM-1056 4ch. video capturing, 9-36VDC in, sliver, RoHS
Features:
- RoHS compliant fanless design
- Supports Pentium M / Celeron M up to 1.8 GHz
- 4 x USB 2.0, 4 x COM port with mic-in and line out
- EPM series PCI-104 interface expansion modules compatible
- 12VDC, 9V~36VDC input models available
Specifications:
Specifications:
Ethernet
1 x 10/100/1000 Base-T, Intel® 82541PI
Audio
Line-in, MIC-in, Line-out
Video Capturing
4 ch. video capturing (EPM-1056)
Others
4 x BNC for video capturing
Weight (Net/ Gross)
1.9kg / 3.1kg
Dimensions (DxWxH)
250 x 62 x 150 (mm)
