System Integration | Standard | ECN-171BSEC-WD-PM16G
Detailed features:

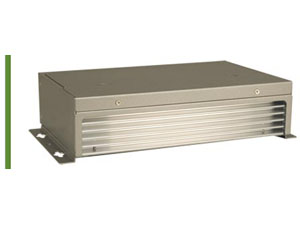

Fanless embedded system with NANO-8522G, Pentium M 1.6GHz CPU, FSB 400MHz, EPM-1056 4ch. video capturing, 9 ~ 36VDC, sliver, RoHSSBC: NANO-8522G
Processor: Intel® Pentium® M / Celeron® M CPU with 400MHz FSB, up to 1.8GHz
System Chipset: lntel® 852GM + ICH4
System Memory: 1 x DDR 266/200MHz SO-DIMM socket support up to 1GB
Ethernet: 1 x 10/100/1000Base-T, Intel® 82541PI 3 x 10/100/1000Base-T, Intel® 82541PI 1 x 10/100/1000Base-T, Intel® 82541PI 1 x 10/100/1000Base-T, Intel® 82541PI
Display: CRT interface with DB-15 connector
USB: 4 x USB 2.0
Serial Port: 3 x RS-232 (COM-1, 3, 4), 1 x RS-232/422/485 selectable (COM2)
Audio: Line-in, MIC-in, Line-out Line-in, MIC-in, Line-out Line-in, MIC-in, Line-out Line-in, MIC-in, Line-out
Video Capturing: N/A N/A 4 ch. MPEG-4 hardware codec video and audio capturing(EPM-1059) 4 ch. video capturing(EPM-1056)
Others: 1 x eSATA 4 x BNC for video capturing
1 x DB-9 for audio capturing 4 x BNC for video capturing
Storage: 1 x 2.5" SATA hard drive
1 x CompactFlash socket for type I/II CompactFlash Disk
Power input: 12VDC* with DC jack and 3pin terminal block. WD series input voltage: 9V~36VDC
Chassis Construction: Heavy duty metal with Aluminum Alloy Fin
Operating Temperature: 0°C ~ 50°C with industrial grade CompactFlash
0°C ~ 45°C with hard drive
Operating Shock: MIL-STD-810F 514.5C-1
Operating Vibration: 3G acceleration peak to peak (11ms)
Weight (Net/ Gross): 2kg / 3.2kg 2.2kg / 3.3kg 2.4kg / 3.5kg 2.4kg / 3.5kg
Dimensions (DxWxH): 250mm x 62mm x 160mm
Fanless embedded system with NANO-8522G, Pentium M 1.6GHz CPU, FSB 400MHz, EPM-1056 4ch. video capturing, 9 ~ 36VDC, sliver, RoHS
Features:
- RoHS compliant fanless design
- Supports Pentium M /Celeron M up to 1.8 GHz
- 1 x 2.5" SATA HDD. 1 x CompactFlash slot
- EPM series PCI-104 interface expansion modules compatible
- 12VDC, 9V~36VDC input models available
Specifications:
Specifications:
Ethernet
1 x 10/100/1000Base-T, Intel® 82541PI
Audio
Line-in, MIC-in, Line-out
Video Capturing
4 ch. video capturing(EPM-1056)
Others
4 x BNC for video capturing
Weight (Net/ Gross)
2.4kg / 3.5kg
Dimensions (DxWxH)
250mm x 62mm x 160mm
