Battery-powered remote 4–20 mA current loop logger Features: Easy to use—no training required stores up to 32,510 voltage readings over a 0 to 30 VDC measurement range. < 0 to 30 VDC measurement range All software included to install, configure and download data Software includes powerful strip chart and export to Excel® Battery-operated 1-year warranty Measurement Computing's USB-504 data logger measures and stores up to 32,000 current loop readings over the 4 to 20 mA measurement range. The user can easily set up the logging rate and start-time, and download the stored data by plugging the module straight into a PC’s USB port, and run the purpose-designed software under Windows® 2000/XP/Vista. The data can then be graphed, printed, and exported to other applications. The data logger is supplied complete with a long-life lithium battery. Correct functioning of the unit is indicated by flashing red and green LEDs. The data logger features a pair of screw terminals, and is supplied with a set of measurement leads with alligator clip terminals. The easy-to-install and use USB-500 Series Data Logger Application software runs in Windows® 2000/XP/Vista. It allows the user to configure the USB-504 logger and download and display the data graphically in a powerful strip chart. The software also provides an easy export to Excel®.

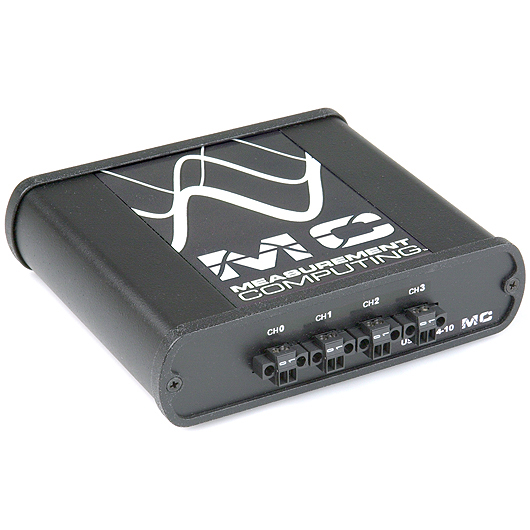

USB-bus powered ±60 V, 24-bit, simultaneous sampling analog input device. Measurement Computing's USB-2404-60 is a high-speed USB device featuring four 24-bit simultaneous analog inputs with a sampling rate of 50 kS/s per channel, and a ±60V input voltage range. The USB-2404-60 is fully compatible with both USB 1.1 and USB 2.0 ports. An anti-alias filter removes noise that may be present in the signals prior to conversion. Full 250 Vrms channel-to-channel and channel-to-ground isolation protects the module and computer from ground spikes, and ensures a reliable data stream. An on-board LED indicates the status of the device. Field connections are made to four 2-pole, detachable screw terminals. The USB 2.0 high-speed driver transfers data at rates up to 480 Mbps. Power for the USB-2404-60 comes from the +5 volt USB supply from your computer. No external power is required. Simultaneous sampling Four 24-bit analog inputs 50 kS/s per channel sampling rate 250 Vrms channel-to-channel and channel-to-ground isolation Four 2-pole, detachable screw terminals ±60 V input range No external power supply required

USB-3101FS: 4-channel, 100 kS/s simultaneously updating analog output module.. The USB-3101FS is a 4-channel, 100 kS/s simultaneously updating analog output module. The USB-3101FS also features ±30 V overvoltage protection, short-circuit protection, low crosstalk, fast slew rate, high relative accuracy, and NIST-traceable calibration. The USB-3101FS module includes a channel-to-earth ground double isolation barrier for safety and noise immunity.. Software included with the USB-3101FS is extensive, including TracerDAQ®, a full-featured, data logging, viewing, and analysis application; Universal Library™, programming libraries and drivers for most popular Windows-based programming languages; Universal Library for LabVIEW™, VIs and program examples for LabVIEW; and InstaCal™ installation, calibration, and test utility. 4 simultaneously updated analog outputs, 100 kS/s 16-bit resolution ±10 V analog output range NIST-traceable calibration -40 to 70 °C operating range 250 Vrms channel-to-ground isolation protects the module and computer from ground spikes, and ensures a reliable data stream An on-board LED indicates the status of the device Field connections are made to a 10-position screw-terminal block Power for the USB-3101FS modules comes from the +5 volt USB supply from your computer. No external power is required

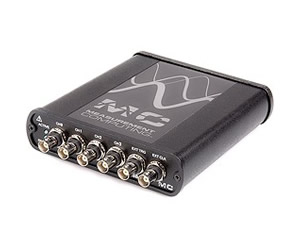

USB-1604HS-2AO: 16-bit, 1.33 MS/s simultaneous sampling multifunction DAQ module Measurement Computing's USB-1604HS-2AO is a high-speed, multifunction measurement and control board supported under popular Microsoft Windows® operating systems. It features four single-ended 16-bit analog inputs, with one A/D converter per channel and a maximum sampling rate of 1.333 MS/s per channel. The input range is software programmable for ±10V, ±2.5V, or ±500 mV. It also has two synchronous 16-bit ±10V analog outputs, which can generate waveforms at 1 MHz per channel; 16 synchronous digital inputs and 16 synchronous digital outputs; four 16-bit or 32-bit counters (which can be configured to be gated); two timer/pulse width modulation (PWM) generators; and three 32-bit quadrature detectors to measure linear and rotary position. A 68-pin SCSI connector provides connections for all inputs and outputs. Six BNC connectors provide alternate connections for the four analog inputs, external pacer clock and external digital trigger input. The USB-1604HS-2AO samples all analog inputs, digital inputs, and counter inputs simultaneously. It can synchronize AI, AO, and DIO operations at rates of up to 1 MS/s, with aggregate throughput up to 8 MS/s. Operations can be paced with an internal or external clock. A 500V isolation barrier protects your computer from ground spikes, and ensures a reliable data stream. The USB 2.0 high-speed driver transfers data at rates up to 480 Mbps. The device is powered by a 9 VDC, 1 A external power supply that is included with shipment. Factory and self-calibration tables are stored onboard in an EEPROM. Simultaneous sampling Two timer/pulse width modulation (PWM) generators Three 16-bit or 32-bit quadrature detectors 500 VDC minimum isolation between field wiring and USB interface Two 16-bit or 32-bit counters Four 16-bit analog inputs 1.33 MS/s update rate Synchronous DIO up to 8 MHz - 16DI/16DO Input voltage ranges: ±10 V, ±2.5 V, ±500 mV Two 16-bit analog outputs, up to 1 MS/s per channel

USB-1604HS: 16-bit, 1.33 MS/s simultaneous sampling analog input module Measurement Computing's USB-1604HS is a high-speed, multifunction measurement and control board supported under popular Microsoft Windows® operating systems. It features four single-ended, 16-bit analog inputs, with one A/D converter per channel, and a maximum sampling rate of 1.333 MS/s per channel. The input range is software programmable for ±10V, ±2.5V, or ±500 mV. It also has 16 synchronous digital inputs and 16 synchronous digital outputs; four 16-bit or 32-bit counters (which can be configured to be gated); two timer/pulse width modulation (PWM) generators; and three 32-bit quadrature detectors to measure linear and rotary position. A 68-pin SCSI connector provides connections for all inputs and outputs. Six BNC connectors provide alternate connections for the four analog inputs, external pacer clock, and external digital trigger input. The USB-1604HS samples all analog inputs, digital inputs, and counter inputs simultaneously. It can synchronize AI and DIO operations at rates of up to 1 MS/s, with aggregate throughput up to 8 MS/s. Operations can be paced with an internal or external clock. A 500 V isolation barrier protects your computer from ground spikes, and ensures a reliable data stream. The USB 2.0 high-speed driver transfers data at rates up to 480 Mbps. The device is powered by a 9 VDC, 1A external power supply that is included with shipment. Factory and self-calibration tables are stored onboard in an EEPROM. Simultaneous sampling Two timer/pulse width modulation (PWM) generators Three 16-bit or 32-bit quadrature detectors 500 VDC minimum isolation between field wiring and USB interface Two 16-bit or 32-bit counters Four 16-bit analog inputs 1.33 MS/s update rate Synchronous DIO up to 8 MHz - 16DI/16DO Input voltage ranges: ±10 V, ±2.5 V, ±500 mV

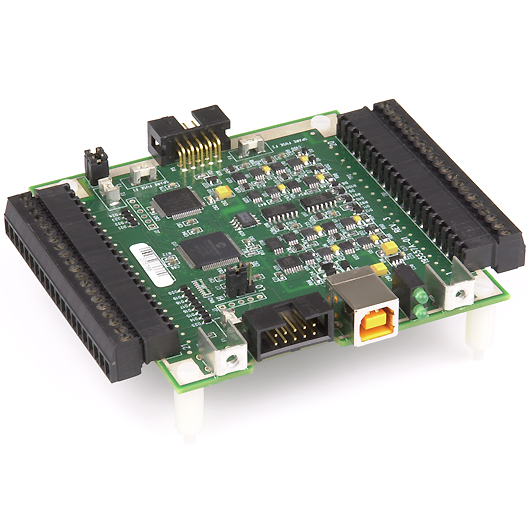

USB bus-powered DAQ module with eight, 16-bit analog inputs and eight digital I/O lines; for Message-Based DAQ Measurement Computing’s new O/S-independent protocol that allows DAQ devices to be programmed with simple text-based messages. MBD is a well-defined protocol that permits the programming of DAQ devices using simple text-based messages. The MBD protocol greatly simplifies driver and application development, because all DAQ operations are programmed through a common command interface, which is composed of a consistent, extensible firmware interface and an open-source, cross-platform API. The USB-7202 has eight single-ended 16-bit analog inputs and provides one A/D converter per channel, allowing simultaneous sampling over all 8 inputs. The USB-7202 offers continuous single-channel sample rates up to 50 kS/s, and multiple-channel continuous sampling rates up to 100 kS/s total. A burst mode is also provided which allows four channels to be sampled at 50 kS/s each, total aggregate up to 200 kS/s, for up to 32,768 total samples. Input ranges of ±10V, ±5V, ±2V and ±1V are software selectable, and each channel may be set at any of the four ranges, independent of other channels. It also includes a 32-bit event counter. Included accessories: USB cable and a CD containing the MC7000 DAQ Software API, USB-7000 Series Firmware Architecture, a Windows® installer file (msi), and a Zip file containing installation files for Linux operating systems Read our "Message Based DAQ" Whitepaper 8 channels of 16-bit analog input 100 kS/s max total throughput (200 kS/s Burst Mode), 50 kS/s on any one channel 8 digital I/O lines One 32-bit event counter Simultaneous sampling (1 A/D converter per input) Stackable 3.55" x 3.75" board dimensions Simple messaging protocol Develop on one computing platform, deploy on many with out-of-the-box support for Windows® and Linux® Small software footprint Included accessories: USB cable and a CD containing the MC7000 DAQ Software API, USB-7000 Series Firmware Architecture, a Windows® installer file (msi), and a Zip file containing installation files for Linux® operating systems

USB bus-powered DAQ module with 8 analog inputs, up to 12-bit resolution, 50 kS/s, two D/A outputs, and 16 digital I/O lines; for Message-Based DAQ The USB-7204 is part of the USB-7000 series of data acquisition products, designed specifically for Message-based DAQ (MBD), Measurement Computing’s new O/S-independent protocol that allows DAQ devices to be programmed with simple text-based messages. MBD is a well-defined protocol that permits the programming of DAQ devices using simple text-based messages. The MBD protocol greatly simplifies driver and application development, because all DAQ operations are programmed through a common command interface, which is composed of a consistent, extensible firmware interface and an open-source, cross-platform API. The USB-7204 has eight single-ended or four differential 12-bit analog inputs, two 12-bit analog outputs and one 32-bit counter. In differential mode, there are eight software selectable input ranges between ±20 V and ±1 V, and in single-ended, the range is ±10 V. Sampling rates up to 50 kS/s. Included accessories: USB cable and a CD containing the MC7000 DAQ Software API, USB-7000 Series Firmware Architecture, a Windows® installer file (msi), and a Zip file containing installation files for Linux operating systems Read our "Message Based DAQ" Whitepaper 8 single-ended or 4 differential analog inputs up to 12-bit resolution Up to 50 kS/s per channel sampling rate Two 12-bit analog outputs One 32-bit event counter 16 digital I/O lines Stackable 3.55" x 3.75" board dimensions Simple messaging protocol Develop on one computing platform, deploy on many with out-of-the-box support for Windows® and Linux® Small software footprint Included accessories: USB cable and a CD containing the MC7000 DAQ Software API, USB-7000 Series Firmware Architecture, a Windows® installer file (msi), and a Zip file containing installation files for Linux® operating systems

The USB-501-TC-LCD is a handy and inexpensive answer to local or remote temperature logging requirements, and has the added convenience of a quick-look LCD display. Supporting K-, J-, and T-type thermocouples, the new logger can measure and store over 32,000 temperatures over the -200 to +1350°C (-328 to +2462°F) range, and can record data at 13 software-selectable logging rates from once per second, to once every 12 hours. The USB-501-TC-LCD ships with a K-type thermocouple with a range of 0 to +400°C (+32 to 752°F). Also included are the USB-500 Series Data Logger Application software and a user-replaceable long-life lithium battery which can typically allow up to six months of logging.
