Acquisition & Control on PC | Uinversal Sensor Input | i511
Detailed features:

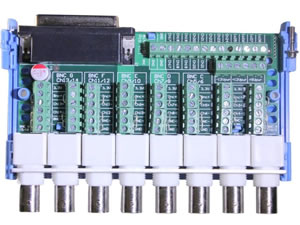

i511 BNC WIRING BOX
The i511 BNC Wiring Box bolts to any i4xx Card that has an Hd44 Connector, and provides the following features:
Screw Terminals and BNC connectors to which one can attach external signals to Hd44 connector
Enclosure box for end user installed wires and shunt resistors
The i511 can NOT do thermocouple measurements. To measure thermocouples one needs an i510.
Wires can be routed through both top and bottom windows in the plastic box.

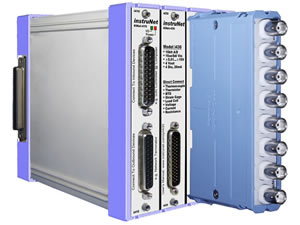

The i51x is of clamshell design with identical top and bottom plastic halves that mate via 3 bolts. Two captive 4-40 bolts secure the i51x to any i4xx card that has an Hd44 male connector. The i511 is 8.3 x 2.5 x 13 cm in size (3.3" x 1" x 5.3", d/w/h)
i511 BNC WIRING BOX
The i511 BNC Wiring Box bolts to any i4xx Card that has an Hd44 Connector, and provides the following features:
Screw Terminals and BNC connectors to which one can attach external signals to Hd44 connector
Enclosure box for end user installed wires and shunt resistors
The i511 can NOT do thermocouple measurements. To measure thermocouples one needs an i510.
Wires can be routed through both top and bottom windows in the plastic box.
The i51x is of clamshell design with identical top and bottom plastic halves that mate via 3 bolts. Two captive 4-40 bolts secure the i51x to any i4xx card that has an Hd44 male connector. The i511 is 8.3 x 2.5 x 13 cm in size (3.3" x 1" x 5.3", d/w/h)
Specifications:
# of Analog Inputs
8
Connector type
BNC
