Detailed features:
i512 SENSOR WIRING BOX
The i512 Sensor Wiring Box bolts to any i4xx Card that has an Hd44 Connector, and provides the following features:

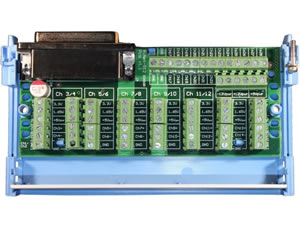

Screw Terminals to which one can attach external signals to Hd44 connector
Enclosure box for end user installed wires and shunt resistors
The i512 can NOT do thermocouple measurements. To measure thermocouples one needs an i510.

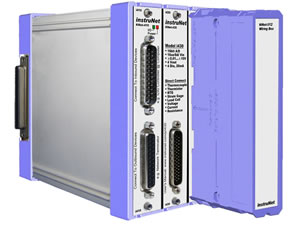

Wires can be routed through both top and bottom windows in the plastic box. The i51x is of clamshell design with identical top and bottom plastic halves that mate via 3 bolts. Two captive 4-40 bolts secure the i51x to any i4xx card that has an Hd44 male connector. The i512 is 7 x 2.5 x 13 cm in size (2.7" x 1" x 5.3", d/w/h

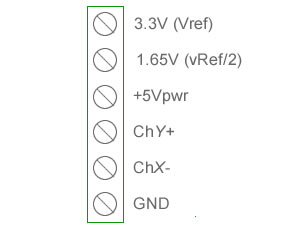

Many i4xx cards provide a 3.3Vref reference voltage that is capable of supplying several hundred milliAmps. This is used to power many different types of sensors. The i512 routes this to the "3.3V" screw terminal in each terminal bank. Also, the i512 has an internal amplifier with a voltage gain of 0.5 that takes this voltage and converts it to a signal that is half the voltage (e.g. 1.65V = 3.3V/2 = vRef/2, 1mA). This can be used in quarter and half bridge measurements where one needs to route half the voltage reference into one of the input terminals (e.g. Vin-). Vref/2 cannot be used to power sensors since it is only capable of suppling 1mA of current.
i512 SENSOR WIRING BOX
The i512 Sensor Wiring Box bolts to any i4xx Card that has an Hd44 Connector, and provides the following features:
Screw Terminals to which one can attach external signals to Hd44 connector
Enclosure box for end user installed wires and shunt resistors
The i512 can NOT do thermocouple measurements. To measure thermocouples one needs an i510.
Wires can be routed through both top and bottom windows in the plastic box. The i51x is of clamshell design with identical top and bottom plastic halves that mate via 3 bolts. Two captive 4-40 bolts secure the i51x to any i4xx card that has an Hd44 male connector. The i512 is 7 x 2.5 x 13 cm in size (2.7" x 1" x 5.3", d/w/h
Many i4xx cards provide a 3.3Vref reference voltage that is capable of supplying several hundred milliAmps. This is used to power many different types of sensors. The i512 routes this to the "3.3V" screw terminal in each terminal bank. Also, the i512 has an internal amplifier with a voltage gain of 0.5 that takes this voltage and converts it to a signal that is half the voltage (e.g. 1.65V = 3.3V/2 = vRef/2, 1mA). This can be used in quarter and half bridge measurements where one needs to route half the voltage reference into one of the input terminals (e.g. Vin-). Vref/2 cannot be used to power sensors since it is only capable of suppling 1mA of current.
Specifications:
Input type
Quarter, Half & full bridge configuration
