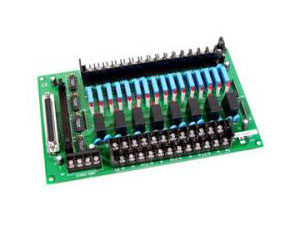

24-Channel Power Relay output Board 24 Channel OPTO-22 Compatible Power Relay Board (12V) with DIN-Rail mounting kit FEATURES: 8 Form C Relays (SPDT) and 16 FORM A Relay Accept 20-pin connector to control 8 Form and 8 Form A relays Switch up to 5A at 250 VAC / 5A at 30VDC LEDs indicated relay status Designed varistor to protect each channel??s high voltage spike Screw terminals for easy field wiring 50-Pin header Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722,724 series 20-Pin header connects directly to A-82X,A-626,A-628, Dio-64" SPECIFICATIONS: RELAY Nominal load : 5 A /120 VAC , 5A /24 VDC Max. Switching power : 0.1HP Max. Switching Voltage : 120VAC,60VDC Max. Switching Current : 5A Life Expectancy : Mechanical ( 2 x 10 ), Electrical ( 2 x 10 ) Time Value : Operate ( 10 ms ) Control Logic : Input TTL high (+5V) , relay on Power Consumption : 24V@ 0.8Amax. ; 5V @ 0.2A max. Dimension :130mmx210mm Operating Temperature : 0 - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing

24-Channel Power Relay output Board 24 Channel OPTO-22 Compatible Power Relay Board (24V) FEATURES: 8 Form C Relays (SPDT) and 16 FORM A Relay Accept 20-pin connector to control 8 Form and 8 Form A relays Switch up to 5A at 250 VAC / 5A at 30VDC LEDs indicated relay status Designed varistor to protect each channel??s high voltage spike Screw terminals for easy field wiring 50-Pin header Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722,724 series 20-Pin header connects directly to A-82X,A-626,A-628, Dio-64" SPECIFICATIONS: RELAY Nominal load : 5 A /120 VAC , 5A /24 VDC Max. Switching power : 0.1HP Max. Switching Voltage : 120VAC,60VDC Max. Switching Current : 5A Life Expectancy : Mechanical ( 2 x 10 ), Electrical ( 2 x 10 ) Time Value : Operate ( 10 ms ) Control Logic : Input TTL high (+5V) , relay on Power Consumption : 24V@ 0.8Amax. ; 5V @ 0.2A max. Dimension :130mmx210mm Operating Temperature : 0 - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing

24-Channel Power Relay output Board 24 Channel OPTO-22 Compatible Power Relay Board (24V)with DIN-Rail Mounting kit FEATURES: 8 Form C Relays (SPDT) and 16 FORM A Relay Accept 20-pin connector to control 8 Form and 8 Form A relays Switch up to 5A at 250 VAC / 5A at 30VDC LEDs indicated relay status Designed varistor to protect each channel??s high voltage spike Screw terminals for easy field wiring 50-Pin header Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722,724 series 20-Pin header connects directly to A-82X,A-626,A-628, Dio-64" SPECIFICATIONS: RELAY Nominal load : 5 A /120 VAC , 5A /24 VDC Max. Switching power : 0.1HP Max. Switching Voltage : 120VAC,60VDC Max. Switching Current : 5A Life Expectancy : Mechanical ( 2 x 10 ), Electrical ( 2 x 10 ) Time Value : Operate ( 10 ms ) Control Logic : Input TTL high (+5V) , relay on Power Consumption : 24V@ 0.8Amax. ; 5V @ 0.2A max. Dimension :130mmx210mm Operating Temperature : 0 - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing

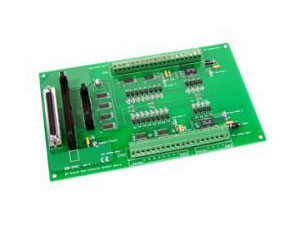

24-Channel Open-Collector Output Board FEATURES: 24 open-collector output (NPN) One OPTO-22 Compatible Connector and one 37 pin D-sub connector and one 20-pin connector Connects directly to OPTO-22 compatible board or any 722,724 series board 8-channel max. load 600mA (per channel) 16-channel max. load 100mA (per channel) Max. load voltage : 35Vdc LED indicated relay status Screw terminals for easy field wiring SPECIFICATIONS: Open-collector (NPN) Channel 0-3 and 12-15 : 600mA(max. load current ) Channel 5-11and 16-23 : 100mA(max. load current) Power Consumption : +5V @0.4A max Dimension : 1305mm X 220mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing

24-Channel Open-Collector Output Board DB-24C with DIN-Rail Mounting Kit FEATURES: 24 open-collector output (NPN) One OPTO-22 Compatible Connector and one 37 pin D-sub connector and one 20-pin connector Connects directly to OPTO-22 compatible board or any 722,724 series board 8-channel max. load 600mA (per channel) 16-channel max. load 100mA (per channel) Max. load voltage : 35Vdc LED indicated relay status Screw terminals for easy field wiring SPECIFICATIONS: Open-collector (NPN) Channel 0-3 and 12-15 : 600mA(max. load current ) Channel 5-11and 16-23 : 100mA(max. load current) Power Consumption : +5V @0.4A max Dimension : 1305mm X 220mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing

24-Channel Open-Collector Output Board 24-channel open-collector output board with 1 meter 37-pin D-Sub cable FEATURES: 24 open-collector output (NPN) One OPTO-22 Compatible Connector and one 37 pin D-sub connector and one 20-pin connector Connects directly to OPTO-22 compatible board or any 722,724 series board 8-channel max. load 600mA (per channel) 16-channel max. load 100mA (per channel) Max. load voltage : 35Vdc LED indicated relay status Screw terminals for easy field wiring SPECIFICATIONS: Open-collector (NPN) Channel 0-3 and 12-15 : 600mA(max. load current ) Channel 5-11and 16-23 : 100mA(max. load current) Power Consumption : +5V @0.4A max Dimension : 1305mm X 220mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing

24-Channel Open-Collector Output Board DB-24C/D with DIN-Rail Mounting Kit FEATURES: 24 open-collector output (NPN) One OPTO-22 Compatible Connector and one 37 pin D-sub connector and one 20-pin connector Connects directly to OPTO-22 compatible board or any 722,724 series board 8-channel max. load 600mA (per channel) 16-channel max. load 100mA (per channel) Max. load voltage : 35Vdc LED indicated relay status Screw terminals for easy field wiring SPECIFICATIONS: Open-collector (NPN) Channel 0-3 and 12-15 : 600mA(max. load current ) Channel 5-11and 16-23 : 100mA(max. load current) Power Consumption : +5V @0.4A max Dimension : 1305mm X 220mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing

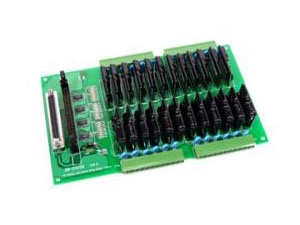

24-Channel Solid State Relay Output Board FEATURES: 24 SSR (AC) One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector Connects directly to OPTO-22 compatible board or any 722,724 series board 8-channel max. load 4A/250V AC (per channel) LED indicated relay status Screw terminals for easy field wiring SPECIFICATIONS: Solid State Relay (SSR) Load voltage : 50 - 250VAC Repetitive Peake OFF voltage : 600V Surge current : 50A Max. Load current : 4A Max. ""Off-state"" leakge current : 50mA Operate time, max.: 1/2 cycle of voltage sine wave: 1ms Power Consumption : +5V @0.4A max Dimension : 1305mm X 220mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing
