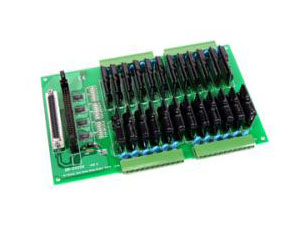

24-Channel Solid State Relay Output Board DB-24SSR with DIN-Rail Mounting Kit FEATURES: 24 SSR (AC) One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector Connects directly to OPTO-22 compatible board or any 722,724 series board 8-channel max. load 4A/250V AC (per channel) LED indicated relay status Screw terminals for easy field wiring SPECIFICATIONS: Solid State Relay (SSR) Load voltage : 50 - 250VAC Repetitive Peake OFF voltage : 600V Surge current : 50A Max. Load current : 4A Max. ""Off-state"" leakge current : 50mA Operate time, max.: 1/2 cycle of voltage sine wave: 1ms Power Consumption : +5V @0.4A max Dimension : 1305mm X 220mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing

24-Channel Solid State Relay Output Board 24-channel Solid State Relay Output Board with 1 meter D-Sub 37-pin cable FEATURES: 24 SSR (AC) One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector Connects directly to OPTO-22 compatible board or any 722,724 series board 8-channel max. load 4A/250V AC (per channel) LED indicated relay status Screw terminals for easy field wiring SPECIFICATIONS: Solid State Relay (SSR) Load voltage : 50 - 250VAC Repetitive Peake OFF voltage : 600V Surge current : 50A Max. Load current : 4A Max. ""Off-state"" leakge current : 50mA Operate time, max.: 1/2 cycle of voltage sine wave: 1ms Power Consumption : +5V @0.4A max Dimension : 1305mm X 220mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing

24-Channel Solid State Relay Output Board 24-channel Solid State Relay Output Board with 1 meter D-Sub 37-pin cable with DIN-Rail Mounting Kit FEATURES: 24 SSR (AC) One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector Connects directly to OPTO-22 compatible board or any 722,724 series board 8-channel max. load 4A/250V AC (per channel) LED indicated relay status Screw terminals for easy field wiring SPECIFICATIONS: Solid State Relay (SSR) Load voltage : 50 - 250VAC Repetitive Peake OFF voltage : 600V Surge current : 50A Max. Load current : 4A Max. ""Off-state"" leakge current : 50mA Operate time, max.: 1/2 cycle of voltage sine wave: 1ms Power Consumption : +5V @0.4A max Dimension : 1305mm X 220mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing

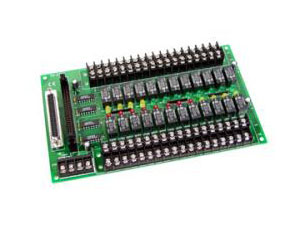

24-Channel Relay Output Board 24 Channel OPTO-22 Compatible Relay Board(12V) FEATURES: 24 Form C Relays (SPDT) SPST: Single Pole Double Throe OPTO-22 Compatible Connector Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722,724 series board Switch up to 0.5A at 120 VAC Switch up to 1A at 24VDC On board relay driver circuits LEDs indicated relay status Screw terminals for easy field wiring On/off control Energy management Test Automation Process Control SPECIFICATIONS: FORM C RELAY Type : 1 form C Nominal load : 0.5 A /120 VAC, 1A /24 VDC Max. Switching power : 60VA, 24W Max. Switching Voltage : 120VAC, 60VDC Max. Switching Current : 1A Life Expectancy : Mechanical ( 2 x 10 ) Electrical ( 2 x 10 ) Time Value : Operate ( 6 ms ) Control Logic : Input TTL high (+5V) , relay on Power Consumption : +12V @0.3A max, +5V @0.18A max Dimension : 225mm X 132mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing)

24-Channel Relay Output Board 24 Channel OPTO-22 Compatible Relay Board(12V) with DIN-Rail mounting kit FEATURES: 24 Form C Relays (SPDT) SPST: Single Pole Double Throe OPTO-22 Compatible Connector Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722,724 series board Switch up to 0.5A at 120 VAC Switch up to 1A at 24VDC On board relay driver circuits LEDs indicated relay status Screw terminals for easy field wiring On/off control Energy management Test Automation Process Control SPECIFICATIONS: FORM C RELAY Type : 1 form C Nominal load : 0.5 A /120 VAC, 1A /24 VDC Max. Switching power : 60VA, 24W Max. Switching Voltage : 120VAC, 60VDC Max. Switching Current : 1A Life Expectancy : Mechanical ( 2 x 10 ) Electrical ( 2 x 10 ) Time Value : Operate ( 6 ms ) Control Logic : Input TTL high (+5V) , relay on Power Consumption : +12V @0.3A max, +5V @0.18A max Dimension : 225mm X 132mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing)

24-Channel Relay Output Board 24 Channel OPTO-22 Compatible Relay Board with D-Sub37 connector (12V) FEATURES: 24 Form C Relays (SPDT) SPST: Single Pole Double Throe OPTO-22 Compatible Connector Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722,724 series board Switch up to 0.5A at 120 VAC Switch up to 1A at 24VDC On board relay driver circuits LEDs indicated relay status Screw terminals for easy field wiring On/off control Energy management Test Automation Process Control SPECIFICATIONS: FORM C RELAY Type : 1 form C Nominal load : 0.5 A /120 VAC, 1A /24 VDC Max. Switching power : 60VA, 24W Max. Switching Voltage : 120VAC, 60VDC Max. Switching Current : 1A Life Expectancy : Mechanical ( 2 x 10 ) Electrical ( 2 x 10 ) Time Value : Operate ( 6 ms ) Control Logic : Input TTL high (+5V) , relay on Power Consumption : +12V @0.3A max, +5V @0.18A max Dimension : 225mm X 132mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing)

24-Channel Relay Output Board 24 Channel OPTO-22 Compatible Relay Board with D-Sub37 connector (12V) with DIN-Rail mounting kit FEATURES: 24 Form C Relays (SPDT) SPST: Single Pole Double Throe OPTO-22 Compatible Connector Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722,724 series board Switch up to 0.5A at 120 VAC Switch up to 1A at 24VDC On board relay driver circuits LEDs indicated relay status Screw terminals for easy field wiring On/off control Energy management Test Automation Process Control SPECIFICATIONS: FORM C RELAY Type : 1 form C Nominal load : 0.5 A /120 VAC, 1A /24 VDC Max. Switching power : 60VA, 24W Max. Switching Voltage : 120VAC, 60VDC Max. Switching Current : 1A Life Expectancy : Mechanical ( 2 x 10 ) Electrical ( 2 x 10 ) Time Value : Operate ( 6 ms ) Control Logic : Input TTL high (+5V) , relay on Power Consumption : +12V @0.3A max, +5V @0.18A max Dimension : 225mm X 132mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing)

24-Channel Relay Output Board 24 Channel OPTO-22 Compatible Relay Board(24V) FEATURES: 24 Form C Relays (SPDT) SPST: Single Pole Double Throe OPTO-22 Compatible Connector Connects directly to DIO-24, DIO-48, DIO-144 OPTO-22 compatible board or any 722,724 series board Switch up to 0.5A at 120 VAC Switch up to 1A at 24VDC On board relay driver circuits LEDs indicated relay status Screw terminals for easy field wiring On/off control Energy management Test Automation Process Control SPECIFICATIONS: FORM C RELAY Type : 1 form C Nominal load : 0.5 A /120 VAC, 1A /24 VDC Max. Switching power : 60VA, 24W Max. Switching Voltage : 120VAC, 60VDC Max. Switching Current : 1A Life Expectancy : Mechanical ( 2 x 10 ) Electrical ( 2 x 10 ) Time Value : Operate ( 6 ms ) Control Logic : Input TTL high (+5V) , relay on Power Consumption : +12V @0.3A max, +5V @0.18A max Dimension : 225mm X 132mm Operating Temperature : 0º - 60ºC Storage Temperature : -20ºC - 70ºC Humidity : 5% to 90 % noncondensing)
