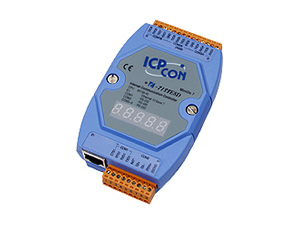

Introduction The I-7188EX, Embedded Internet/Ethernet Controller, focuses in Embedded Control applications while the I-7188EN, Internet Communication Controller, focuses in communication applications. According to different embedded firmware and application program, the Internet Communication Controller can be used as Device Server or Addressable Ethernet to RS-232/485/422 Converter or Embedded Internet/Ethernet Controller. The user should refer to comparison table to choose optimal product. Now we offer wide range Internet Communication Controllers, such as I-7188E1 / E2 /E3 /E4 / E5 / E8. Except the RTC circuitry, the basic hardware of I-7188EN is similar to I-7188EX. Since there are too many configurations for I-7188EN series product, OEM or ODM version is welcomed. Can be used as Addressable Ethernet to RS-232/485/422 Converter. Most RS-232/485/422 devices don¡¦t support device address. The I-7188EN series can assign a unique address to any RS-232 device installed in the Ethernet network. Host-PC can send command with device address to Ethernet network, the destination I-7188EN will remove the address field & pass the other fields of command to its local RS-232 device. The response of this local RS-232 device will be passed to host-PC via this destination I-7188EN. Can be used as Ethernet to RS-232/485/422 Device Server The Device Server is an appliance that network enables any device with a serial communication port. By virtue of its independent operating system, protocol independence, small size and flexibility, Device servers are able to meet the demand of virtually any network-enable application. Most devices don¡¦t have network ports. Our Internet Communication Controllers allow those devices to become connected to the network. Can be used as Embedded Internet/Ethernet Controller Except the Real Time Clock, the hardware and software of I-7188EN is similar to I-7188EX. The user can use well-developed libraries and demo programs to implement an Embedded Internet/Ethernet Controller. Features AMD 80188-40 Embedded CPU, or compatible Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP 10BASE-T NE2000 compatible Ethernet Controller Reloadable Operating Software Remote Configuration Diagnostics COM driver support interrupt & 1K QUEUE Input & Output buffer Support serial port Built-in EEPROM Built-in self-tuner ASIC controller on RS-485 port support seven RS-232 ports and one RS-485 port 7-segment LED display for I-7188E8D Built-in MiniOS7 Program download port: COM1 or Ethernet Port (Available soon)

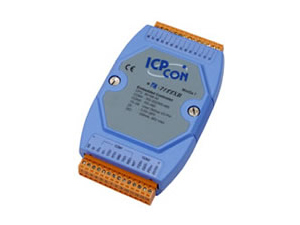

AMD's embedded CPU, Am188 or compatible 64-bit hardware unique serial number inside User defined D/I/O COM driver support interrupt & 1K QUEUE input buffer COM port: COM1, COM2 Built-in RTC, NVRAM, EEPROM One digital Input channel and one open collector output channel Built-in I/O expansion bus interface Can add on one expansion board only Built-in self-tuner ASIC controller on RS-485 port Optional 7-segment LED display Built-in ICP DAS¡¦s MiniOS7 Program download port: COM1

AMD's embedded CPU, Am188 or compatible 64-bit hardware unique serial number inside User defined D/I/O COM driver support interrupt & 1K QUEUE input buffer COM port: COM1, COM2 Built-in RTC, NVRAM, EEPROM One digital Input channel and one open collector output channel Built-in I/O expansion bus interface Can add on one expansion board only Built-in self-tuner ASIC controller on RS-485 port Optional 7-segment LED display Built-in ICP DAS¡¦s MiniOS7 Program download port: COM1

AMD's embedded CPU, Am188TMES: 40M or compatible Built-in RTC, NVRAM, EEPROM Built-in COM port: COM1, COM2, COM3, COM4 Optional 7-segment LED display Built-in ICP DAS¡¦s MiniOS7 Program download port: COM4 Embedded controller includes 512K flash, 5-digit display, MiniOS7, download utility, download cable and manual.

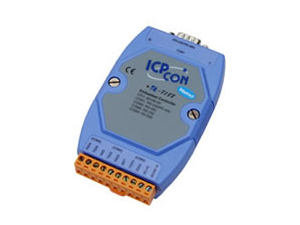

AMD's embedded CPU, Am188TMES: 40M or compatible Built-in RTC, NVRAM, EEPROM Built-in COM port: COM1, COM2, COM3, COM4 Optional 7-segment LED display Built-in ICP DAS¡¦s MiniOS7 Program download port: COM4 Embedded controller includes 256K flash, ROM-DOS, download utility, download cable and manual.

AMD's embedded CPU, Am188TMES: 40M or compatible Built-in RTC, NVRAM, EEPROM Built-in COM port: COM1, COM2, COM3, COM4 Optional 7-segment LED display Built-in ICP DAS¡¦s MiniOS7 Program download port: COM4 Embedded controller includes 256K flash, ROM-DOS, download utility, download cable and manual.

AMD's embedded CPU, Am188TMES: 40M or compatible Built-in RTC, NVRAM, EEPROM Built-in COM port: COM1, COM2, COM3, COM4 Optional 7-segment LED display Built-in ICP DAS¡¦s MiniOS7 Program download port: COM4 Embedded controller includes 512K flash, ROM-DOS, download utility, download cable and manual. display

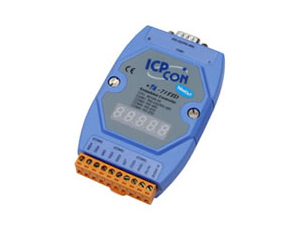

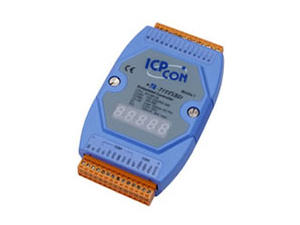

AMD's embedded CPU, Am188TMES: 40M or compatible Built-in RTC, NVRAM, EEPROM Built-in COM port: COM1, COM2, COM3, COM4 Optional 7-segment LED display Built-in ICP DAS¡¦s MiniOS7 Program download port: COM4 Embedded controller includes 512K flash, 5-digit display, ROM-DOS, download utility, download cable and manual.
