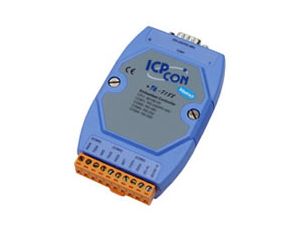

AMD's embedded CPU, Am188TMES: 40M or compatible Built-in RTC, NVRAM, EEPROM Built-in COM port: COM1, COM2, COM3, COM4 Optional 7-segment LED display Built-in ICP DAS¡¦s MiniOS7 Program download port: COM4 Embedded controller includes 256K flash, MiniOS7, download utility, download cable and manual.

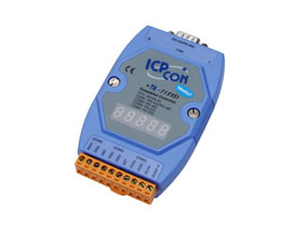

AMD's embedded CPU, Am188TMES: 40M or compatible Built-in RTC, NVRAM, EEPROM Built-in COM port: COM1, COM2, COM3, COM4 Optional 7-segment LED display Built-in ICP DAS¡¦s MiniOS7 Program download port: COM4 Embedded controller includes 256K flash, 5-digit display, MiniOS7, download utility, download cable and manual.

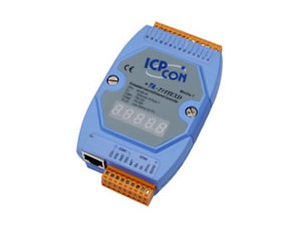

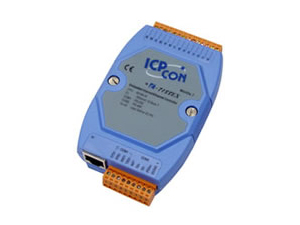

Introduction The I-7188EX is powered by 80188-40 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. One serial RS-232 port and one RS-485 port are provided. Ethernet support is provided by a NE-2000 compatible controller with 16K bytes of on-chip buffer memory and 10Base-T media interface. The I-7188EX also provides 14 user defined I/O lines. A cost-effective I/O expansion board with A/D, D/A, relay drivers and protected inputs is available. The I-7188EX also supports battery back-up SRAM disk board and Flash-Rom board, providing non-volatile mass storage from 2 megabytes to 64 megabytes. The 10BASE-T port is equipped with a RJ-45 connector. The 10BASE-T interface supports max. 100-meter Cable length between I-7188EX and the network hub. Features AMD 80188-40 embedded CPU or compatible Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP,ARP 10BASE-T NE2000 compatible Ethernet Controller Reloadable Operating Software Remote Configuration Diagnostics 64-bit hardware unique serial number inside COM driver support interrupt & 1K QUEUE Input & Output buffer COM port: COM1, COM2, Built-in RTC, NVRAM, EEPROM User defined 14 I/O lines Built-in I/O expansion bus interface Can add on one expansion board only Built-in self-tuner ASIC controller on RS-485 port 7-segment LED display for I-7188EXD Built-in MiniOS7 Program download port: COM1 or Ethernet Port (Available soon)

Introduction The I-7188EX is powered by 80188-40 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. One serial RS-232 port and one RS-485 port are provided. Ethernet support is provided by a NE-2000 compatible controller with 16K bytes of on-chip buffer memory and 10Base-T media interface. The I-7188EX also provides 14 user defined I/O lines. A cost-effective I/O expansion board with A/D, D/A, relay drivers and protected inputs is available. The I-7188EX also supports battery back-up SRAM disk board and Flash-Rom board, providing non-volatile mass storage from 2 megabytes to 64 megabytes. The 10BASE-T port is equipped with a RJ-45 connector. The 10BASE-T interface supports max. 100-meter Cable length between I-7188EX and the network hub. Features AMD 80188-40 embedded CPU or compatible Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP,ARP 10BASE-T NE2000 compatible Ethernet Controller Reloadable Operating Software Remote Configuration Diagnostics 64-bit hardware unique serial number inside COM driver support interrupt & 1K QUEUE Input & Output buffer COM port: COM1, COM2, Built-in RTC, NVRAM, EEPROM User defined 14 I/O lines Built-in I/O expansion bus interface Can add on one expansion board only Built-in self-tuner ASIC controller on RS-485 port 7-segment LED display for I-7188EXD Built-in MiniOS7 Program download port: COM1 or Ethernet Port (Available soon)

Introduction The I-7188EX is powered by 80188-40 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. One serial RS-232 port and one RS-485 port are provided. Ethernet support is provided by a NE-2000 compatible controller with 16K bytes of on-chip buffer memory and 10Base-T media interface. The I-7188EX also provides 14 user defined I/O lines. A cost-effective I/O expansion board with A/D, D/A, relay drivers and protected inputs is available. The I-7188EX also supports battery back-up SRAM disk board and Flash-Rom board, providing non-volatile mass storage from 2 megabytes to 64 megabytes. The 10BASE-T port is equipped with a RJ-45 connector. The 10BASE-T interface supports max. 100-meter Cable length between I-7188EX and the network hub. Features AMD 80188-40 embedded CPU or compatible Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP,ARP 10BASE-T NE2000 compatible Ethernet Controller Reloadable Operating Software Remote Configuration Diagnostics 64-bit hardware unique serial number inside COM driver support interrupt & 1K QUEUE Input & Output buffer COM port: COM1, COM2, Built-in RTC, NVRAM, EEPROM User defined 14 I/O lines Built-in I/O expansion bus interface Can add on one expansion board only Built-in self-tuner ASIC controller on RS-485 port 7-segment LED display for I-7188EXD Built-in MiniOS7 Program download port: COM1 or Ethernet Port (Available soon)

Introduction The I-7188EX is powered by 80188-40 processor with 512K bytes of static RAM, and 512K bytes of Flash memory. One serial RS-232 port and one RS-485 port are provided. Ethernet support is provided by a NE-2000 compatible controller with 16K bytes of on-chip buffer memory and 10Base-T media interface. The I-7188EX also provides 14 user defined I/O lines. A cost-effective I/O expansion board with A/D, D/A, relay drivers and protected inputs is available. The I-7188EX also supports battery back-up SRAM disk board and Flash-Rom board, providing non-volatile mass storage from 2 megabytes to 64 megabytes. The 10BASE-T port is equipped with a RJ-45 connector. The 10BASE-T interface supports max. 100-meter Cable length between I-7188EX and the network hub. Features AMD 80188-40 embedded CPU or compatible Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP,ARP 10BASE-T NE2000 compatible Ethernet Controller Reloadable Operating Software Remote Configuration Diagnostics 64-bit hardware unique serial number inside COM driver support interrupt & 1K QUEUE Input & Output buffer COM port: COM1, COM2, Built-in RTC, NVRAM, EEPROM User defined 14 I/O lines Built-in I/O expansion bus interface Can add on one expansion board only Built-in self-tuner ASIC controller on RS-485 port 7-segment LED display for I-7188EXD Built-in MiniOS7 Program download port: COM1 or Ethernet Port (Available soon)

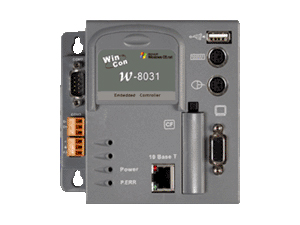

0-slot Standard WinCE Embedded Controller Windows CE.NET 4.1 operating system is resident in the flash memory of the WinCon-8000 series CPU module. User's programs can be saved in external storage areas, such as Compact Flash Card and USB drive or downloaded to RAM at run time through the LAN or USB . ICPDAS's SDK to control the i-8000, I-7000 series I/O modules is provided for easy development of user applications using Visual Basic .NET, Visual C# or Embedded Visual C++. The included WinCon Utility is a convenient tool which enables system configuration, monitoring and software update. ATL, ActiveX Component and MFC for Windows CE Embedded Visual C++ Visual Basic .NET and Visual C# WinCon-8000 SDK to control I-8000 I/O modules OPC server and Modbus/TCP Protocol RS-232/485 Device Connection Http server, FTP server and Web-based control application development SQL Server CE and connectivity to ERP WinCon-8000 system configuration utility Remote management utility Integrated SCADA/HMI S/W or User's AP via Modbus/TCP Driver, ActiveX or Modbus/TCP OPC Server

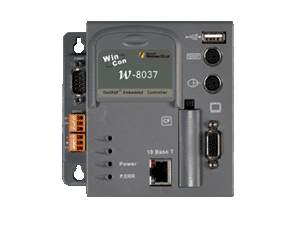

0-slot ISaGRAF Embedded Controller ISaGRAF is a PLC-like software running on Windows 95/ 98/ NT/ 2000/ XP. It supports all five IEC61131-3 languages, Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), Sequential Function Chart (SFC), and Instruction List (IL) plus Flow Char (FC). Additionally, for the ultimate in power and flexibility, ISaGRAF supports off-line simulation, on-line debugging, monitoring and control. WinCon-8000 supporting ISaGRAF to be easily integrated with many HMI software and devices such as ICP DAS's MMICON, iFix, Iconics, Wizcon, Intouch, Citect, Indusoft, Kepware's Modbus OPC server, Touch 506, 510, etc. When the ISaGRAF controller integrate with a GSM Modem, Short Message Service is supported. It can deliver message to a cell phone to report information, or receive message from a cell phone to control something. All five IEC61131-3 languages, LD, ST, FBD, SFC, IL plus FC. Modbus RTU protocol to integrate to SCADA software and HMI. Modbus TCP/IP to integrate to SCADA software and HMI. Controller to Controller Data Exchange via Ethernet: Ebus. Remotely download and monitor the program via a modem. Modbus Master protocol to link to other devices which support Modbus RTU &TCP/IP protocol. All I-7000 & I-87K series I/O modules can be integrated as remote I/O modules. Spotlight- A Simple HMI included in ISaGRAF to make application more friendly. Auto-scan I/O : Automatically scan I/O boards & declare I/O variables. File access: Read/Write files inside the Compact Flash memory by using ISaGRAF language. Array access: Read/Write boolean, integer, message (string) array by using ISaGRAF language EzHMI: Easy HMI to build HMI items & pages (Will be available). SMS: When integrating with a GSM Modem, Short Message Service is available. Motion: Motion control is available when i-8091 boards integrated. Web HMI: Monitoring and control the local or remote controller via the Internet Explorer running on your PC
