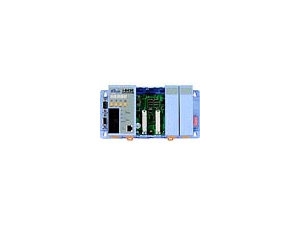

4-slots Ethernet I/O unit Introduction The I-8430 and I-8830 are embedded Ethernet I/O control units using DCON Protocol Firmware. ICPDAS provides various I/O modules, such as analog input/output and digital input/output and counter modules which can be used in remote data acquisition and control applications for environment monitoring,?power management and factory automation, etc. via Ethernet communication.!@ he CPU is a 16-bit 80188 (40M Hz). Apart from the original functions (input, output, power on value, safe value, high limit value, low limit value) of the I/O module, the firmware provides additional functions to allow I/O modules in different slots to be combined together. For example, if the channel value of an AI module is above a predefined high limit value, or below a predefined low limit value, the information can be immediately passed to another DO module to trigger alarm?or light.? Various software development kits (SDK) and demos are provided, such as DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. The I/O modules can be easily added to the I-8430/I-8830 and can be quickly integrated into an existing system. Features Supports IPv4. Supports the DCON communication protocol on the Ethernet port. Supports the?VxComm technique for all ports (RS-232 and Ethernet). Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO and?Counter/Frequency modules. I/O configurable via an Ethernet using the DCON Utility.? Firmware can be updated via the RS-232 port. Various SDKs provided (free) DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. Compact I/O Expansion slot allows the quick installation of various 8K and 87K I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software.? Ventilated housing designed to operate between !V25￠XC to +75￠XC.? Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80188 or compatible (16-bit and 40MHz) SRAM : 512KBytes Flash ROM : 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer Ethernet port : 10BaseT NE2000 compatible COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM3: RS-232/485 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8430 : 4 slots I-8830 : 8 slots Safety grounded Surge protection Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8430 : 3.9 W I-8830 : 5.1 W Dimensions 230 x 110 x 75.5 mm (for I-8430) 354 x 110 x 75.5 mm (for I-8830)

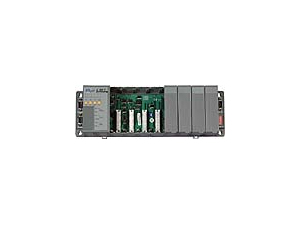

4-slots Ethernet I/O unit with gray color Introduction The I-8430 and I-8830 are embedded Ethernet I/O control units using DCON Protocol Firmware. ICPDAS provides various I/O modules, such as analog input/output and digital input/output and counter modules which can be used in remote data acquisition and control applications for environment monitoring,?power management and factory automation, etc. via Ethernet communication.!@ he CPU is a 16-bit 80188 (40M Hz). Apart from the original functions (input, output, power on value, safe value, high limit value, low limit value) of the I/O module, the firmware provides additional functions to allow I/O modules in different slots to be combined together. For example, if the channel value of an AI module is above a predefined high limit value, or below a predefined low limit value, the information can be immediately passed to another DO module to trigger alarm?or light.? Various software development kits (SDK) and demos are provided, such as DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. The I/O modules can be easily added to the I-8430/I-8830 and can be quickly integrated into an existing system. Features Supports IPv4. Supports the DCON communication protocol on the Ethernet port. Supports the?VxComm technique for all ports (RS-232 and Ethernet). Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO and?Counter/Frequency modules. I/O configurable via an Ethernet using the DCON Utility.? Firmware can be updated via the RS-232 port. Various SDKs provided (free) DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. Compact I/O Expansion slot allows the quick installation of various 8K and 87K I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software.? Ventilated housing designed to operate between !V25￠XC to +75￠XC.? Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80188 or compatible (16-bit and 40MHz) SRAM : 512KBytes Flash ROM : 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer Ethernet port : 10BaseT NE2000 compatible COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM3: RS-232/485 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8430 : 4 slots I-8830 : 8 slots Safety grounded Surge protection Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8430 : 3.9 W I-8830 : 5.1 W Dimensions 230 x 110 x 75.5 mm (for I-8430) 354 x 110 x 75.5 mm (for I-8830)

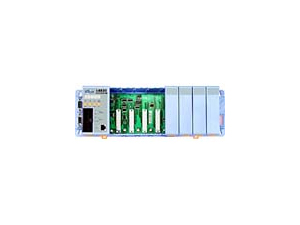

8-slots Ethernet I/O unit Introduction The I-8430 and I-8830 are embedded Ethernet I/O control units using DCON Protocol Firmware. ICPDAS provides various I/O modules, such as analog input/output and digital input/output and counter modules which can be used in remote data acquisition and control applications for environment monitoring,?power management and factory automation, etc. via Ethernet communication.!@ he CPU is a 16-bit 80188 (40M Hz). Apart from the original functions (input, output, power on value, safe value, high limit value, low limit value) of the I/O module, the firmware provides additional functions to allow I/O modules in different slots to be combined together. For example, if the channel value of an AI module is above a predefined high limit value, or below a predefined low limit value, the information can be immediately passed to another DO module to trigger alarm?or light.? Various software development kits (SDK) and demos are provided, such as DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. The I/O modules can be easily added to the I-8430/I-8830 and can be quickly integrated into an existing system. Features Supports IPv4. Supports the DCON communication protocol on the Ethernet port. Supports the?VxComm technique for all ports (RS-232 and Ethernet). Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO and?Counter/Frequency modules. I/O configurable via an Ethernet using the DCON Utility.? Firmware can be updated via the RS-232 port. Various SDKs provided (free) DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. Compact I/O Expansion slot allows the quick installation of various 8K and 87K I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software.? Ventilated housing designed to operate between !V25￠XC to +75￠XC.? Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80188 or compatible (16-bit and 40MHz) SRAM : 512KBytes Flash ROM : 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer Ethernet port : 10BaseT NE2000 compatible COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM3: RS-232/485 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8430 : 4 slots I-8830 : 8 slots Safety grounded Surge protection Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8430 : 3.9 W I-8830 : 5.1 W Dimensions 230 x 110 x 75.5 mm (for I-8430) 354 x 110 x 75.5 mm (for I-8830)

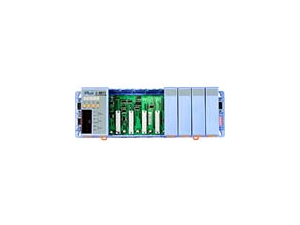

8-slots Ethernet I/O unit with gray color Introduction The I-8430 and I-8830 are embedded Ethernet I/O control units using DCON Protocol Firmware. ICPDAS provides various I/O modules, such as analog input/output and digital input/output and counter modules which can be used in remote data acquisition and control applications for environment monitoring,?power management and factory automation, etc. via Ethernet communication.!@ he CPU is a 16-bit 80188 (40M Hz). Apart from the original functions (input, output, power on value, safe value, high limit value, low limit value) of the I/O module, the firmware provides additional functions to allow I/O modules in different slots to be combined together. For example, if the channel value of an AI module is above a predefined high limit value, or below a predefined low limit value, the information can be immediately passed to another DO module to trigger alarm?or light.? Various software development kits (SDK) and demos are provided, such as DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. The I/O modules can be easily added to the I-8430/I-8830 and can be quickly integrated into an existing system. Features Supports IPv4. Supports the DCON communication protocol on the Ethernet port. Supports the?VxComm technique for all ports (RS-232 and Ethernet). Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO and?Counter/Frequency modules. I/O configurable via an Ethernet using the DCON Utility.? Firmware can be updated via the RS-232 port. Various SDKs provided (free) DLL, ActiveX, Labview driver, Indusoft driver, Linux driver, OPC server, etc. Compact I/O Expansion slot allows the quick installation of various 8K and 87K I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software.? Ventilated housing designed to operate between !V25￠XC to +75￠XC.? Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80188 or compatible (16-bit and 40MHz) SRAM : 512KBytes Flash ROM : 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer Ethernet port : 10BaseT NE2000 compatible COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM3: RS-232/485 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8430 : 4 slots I-8830 : 8 slots Safety grounded Surge protection Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8430 : 3.9 W I-8830 : 5.1 W Dimensions 230 x 110 x 75.5 mm (for I-8430) 354 x 110 x 75.5 mm (for I-8830)

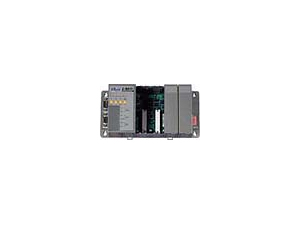

I-8411 Embedded Controller Introduction The I-8411/ I-8811 are serial embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4~0.8 second).It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc. The I-8411/I-8811 can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. Features Equipped with MiniOS7, ,an embedded OS similar to DOS that is developed by ICP DAS Co., LTD. Provides full C library functions such as 8K, 87K I/O, 7-segment LED, RTC (real time clock), EEPROM etc. Provides a hardware serial number or an ASICKey to protect designated systems. Compact I/O Expansion slot allows the quick installation of I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments. Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules. Ventilated housing designed to operate between !V25￠XC to +75￠XC. Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80188 or compatible (16-bit and 40MHz) SRAM: 512KBytes Flash ROM: 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer 64-bit hardware unique serial number Real time clock NVRAM : 31Byte COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM2 : RS-485 COM3 : RS-232/485 COM4 : RS-232 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8411 : 4 slots I-8811 : 8 slots Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8410 : 3.9 W I-8810 : 5.1 W Dimensions 230 x 110 x 75.5 mm ( for 4 slots ) 354 x 110 x 75.5 mm ( for 8 slots ) Operating Environment Operating Temp.: !V25￠XC to +75￠XC. Storage Temp.: !V30￠XC to +85￠XC Humidity: 5 ~ 95%,non-condensing

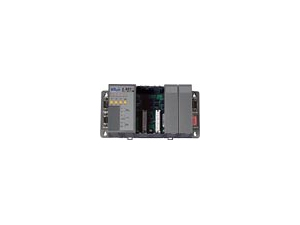

I-8411 Embedded Controller with gray color Introduction The I-8411/ I-8811 are serial embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4~0.8 second).It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc. The I-8411/I-8811 can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. Features Equipped with MiniOS7, ,an embedded OS similar to DOS that is developed by ICP DAS Co., LTD. Provides full C library functions such as 8K, 87K I/O, 7-segment LED, RTC (real time clock), EEPROM etc. Provides a hardware serial number or an ASICKey to protect designated systems. Compact I/O Expansion slot allows the quick installation of I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments. Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules. Ventilated housing designed to operate between !V25￠XC to +75￠XC. Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80188 or compatible (16-bit and 40MHz) SRAM: 512KBytes Flash ROM: 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer 64-bit hardware unique serial number Real time clock NVRAM : 31Byte COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM2 : RS-485 COM3 : RS-232/485 COM4 : RS-232 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8411 : 4 slots I-8811 : 8 slots Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8410 : 3.9 W I-8810 : 5.1 W Dimensions 230 x 110 x 75.5 mm ( for 4 slots ) 354 x 110 x 75.5 mm ( for 8 slots ) Operating Environment Operating Temp.: !V25￠XC to +75￠XC. Storage Temp.: !V30￠XC to +85￠XC Humidity: 5 ~ 95%,non-condensing

I-8811 Embedded Controller Introduction The I-8411/ I-8811 are serial embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4~0.8 second).It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc. The I-8411/I-8811 can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. Features Equipped with MiniOS7, ,an embedded OS similar to DOS that is developed by ICP DAS Co., LTD. Provides full C library functions such as 8K, 87K I/O, 7-segment LED, RTC (real time clock), EEPROM etc. Provides a hardware serial number or an ASICKey to protect designated systems. Compact I/O Expansion slot allows the quick installation of I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments. Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules. Ventilated housing designed to operate between !V25￠XC to +75￠XC. Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80188 or compatible (16-bit and 40MHz) SRAM: 512KBytes Flash ROM: 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer 64-bit hardware unique serial number Real time clock NVRAM : 31Byte COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM2 : RS-485 COM3 : RS-232/485 COM4 : RS-232 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8411 : 4 slots I-8811 : 8 slots Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8410 : 3.9 W I-8810 : 5.1 W Dimensions 230 x 110 x 75.5 mm ( for 4 slots ) 354 x 110 x 75.5 mm ( for 8 slots ) Operating Environment Operating Temp.: !V25￠XC to +75￠XC. Storage Temp.: !V30￠XC to +85￠XC Humidity: 5 ~ 95%,non-condensing

I-8811 Embedded Controller with gray color Introduction The I-8411/ I-8811 are serial embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4~0.8 second).It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc. The I-8411/I-8811 can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. Features Equipped with MiniOS7, ,an embedded OS similar to DOS that is developed by ICP DAS Co., LTD. Provides full C library functions such as 8K, 87K I/O, 7-segment LED, RTC (real time clock), EEPROM etc. Provides a hardware serial number or an ASICKey to protect designated systems. Compact I/O Expansion slot allows the quick installation of I/O modules. The built-in watchdog circuit will reset the CPU module if a failure occurs in either the hardware or software, allowing the controller system more reliable and stable in harsh and noisy environments. Dual Bus designed to support i-8K and i-87K series I/O modules, such as DI/DO, AI/AO, Counter/Frequency modules. Ventilated housing designed to operate between !V25￠XC to +75￠XC. Using DIN rail clips or Screw poles around the corners allows the control unit to be easily mounted on the control box. Specifications CPU: 80188 or compatible (16-bit and 40MHz) SRAM: 512KBytes Flash ROM: 512KBytes EEPROM: 2KBytes Built-in Watchdog Timer 64-bit hardware unique serial number Real time clock NVRAM : 31Byte COM1: RS-232 (to update firmware) COM0 : for internal communication with the 87K modules connected to the slots COM2 : RS-485 COM3 : RS-232/485 COM4 : RS-232 SMMI (small man machine interface) 5-digits LED display 4 LED indicators 4 push buttons I/O expansion slots: I-8411 : 4 slots I-8811 : 8 slots Power Power reverse polarity protection Power supply: 20W Power requirement: 10 ~ 30 V/DC Power consumption: I-8410 : 3.9 W I-8810 : 5.1 W Dimensions 230 x 110 x 75.5 mm ( for 4 slots ) 354 x 110 x 75.5 mm ( for 8 slots ) Operating Environment Operating Temp.: !V25￠XC to +75￠XC. Storage Temp.: !V30￠XC to +85￠XC Humidity: 5 ~ 95%,non-condensing
