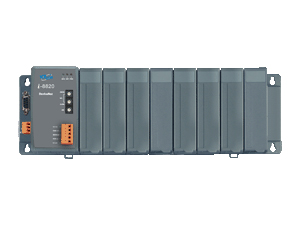

DeviceNet Embedded Device with 8 empty slots DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for embedded network for machine control, such as textile machinery, printing machines, injection molding machinery, or packaging machines, etc. DeviceNet is a low level network that provides connections between simple industrial devices (sensors, actuators) and higher level devices (controllers). It allows direct peer to peer data exchange between nodes in an organized and, if necessary, deterministic manner. DeviceNet defines a connection-based scheme to facilitate all application communications. A DeviceNet connection provides a communication path between multiple endpoints. The endpoints of a connection are applications that need to share data. Features DeviceNet Version DeviceNet Specification Volume I & II, Release 2.0 Number of Nodes 64(Max) Baud Rate 125K, 250K, 500K Support Message Groups Group 2 only Server UCMM Not Support I/O Operating Modes Poll, Bit-Strobe, Change of State/ Cyclic Device Heartbeat Message ￡? Device Shutdown Message ￡? Produce EDS file Dynamically ￡? No. of Fragment I/O 128 Bytes (Max) (Input/ Output) MAC ID Setting Rotary Switch Baud Rate Setting Rotary Switch DeviceNet Status LED NET, MOD, PWR Specifications Model I-8420 I-8820 CPU 80186, 80MHz Flash 512K bytes SRAM 512K bytes EERROM 2K bytes (Can upto 128K bytes or change to 2K/8K FRAM) NVRAM 32 bytes Real Time Clock 16 bit Watch Dog Timer CPU Built-in COM1 RS232 (Program download port) CAN Port 5-pin screw terminal connector CAN Controller Phillip SJA1000T CAN Transceiver Phillip 82C250/251 CAN 2.0A/2.0B Supported ￡? Isolated 2500Vrms on CAN side Terminal Resister 120 ohm terminal resister selected by jumper Transfer Rate up to 1Mbps I/O Expasion Slot 4 slots 8 slots Power Supply 20W unregulated +10VDC to +30Vdc Operating Temp -25C to 75C Storage Temp -30C to 85C Humidity 5 ~ 95% Dimensions 230x110x75.5 mm, 354x110x75.5 mm

CANopen Embedded Device with 8 empty slots CANopen, a kind of communication protocols, is based on the intelligent field bus (CAN bus). It was developed as a standardized embedded network with highly flexible configuration capabilities. It provides standardized communication objects for real-time data (Process Data Objects, PDO), configuration data (Service Data Objects, SDO), network management data (NMT message, and Error Control), and special functions (Time Stamp, Sync message, and Emergency message). By now, CANopen is used in many various application fields, such as medical equipment, off-road vehicles, maritime electronics, public transportation, building automation and etc. Features NMT Slave Error Control Heart beat to Node Guarding selectable No. of PDOs 16Rx , 16Tx PDO Modes Event Triggered, Remotely requested, Cyclic and acyclic SYNC PDO Mapping variable No. of SDOs 1 server, 0 client Emergency Message ￡? CANopen Version DS-301 v4.01 Device Profile DSP-401 v2.0 Baud Rate Setting by Rotary Switch 10K, 20K, 50K, 125K, 250K, 500K, 800K, and 1Mbps Produce EDS file Dynamically ￡? CAN, ERR, and Tx/Rx LED ￡? Specifications Model I-8421, I-8821 CPU 80186, 80MHz Flash 512K bytes SRAM 512K bytes EERROM 2K bytes (Can upto 128K bytes or change to 2K/8K FRAM) NVRAM 32 bytes Real Time Clock 16 bit Watch Dog Timer CPU Built-in COM1 RS232 (Program download port) CAN Port 5-pin screw terminal connector CAN Controller Phillip SJA1000T CAN Transceiver Phillip 82C250/251 CAN 2.0A/2.0B Supported ￡? Isolated 2500Vrms on CAN side Terminal Resister 120 ohm terminal resister selected by jumper Transfer Rate up to 1Mbps I/O Expasion Slot 4 slots 8 slots Power Supply 20W unregulated +10VDC to +30Vdc Operating Temp -25C to 75C Storage Temp -30C to 85C Humidity 5 ~ 95% Dimensions 230x110x75.5 mm, 354x110x75.5 mm

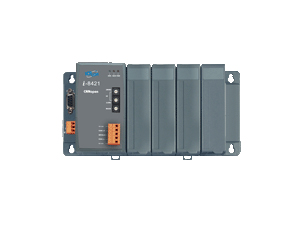

CANopen Embedded Device with 4 empty slots CANopen, a kind of communication protocols, is based on the intelligent field bus (CAN bus). It was developed as a standardized embedded network with highly flexible configuration capabilities. It provides standardized communication objects for real-time data (Process Data Objects, PDO), configuration data (Service Data Objects, SDO), network management data (NMT message, and Error Control), and special functions (Time Stamp, Sync message, and Emergency message). By now, CANopen is used in many various application fields, such as medical equipment, off-road vehicles, maritime electronics, public transportation, building automation and etc. Features NMT Slave Error Control Heart beat to Node Guarding selectable No. of PDOs 16Rx , 16Tx PDO Modes Event Triggered, Remotely requested, Cyclic and acyclic SYNC PDO Mapping variable No. of SDOs 1 server, 0 client Emergency Message ￡? CANopen Version DS-301 v4.01 Device Profile DSP-401 v2.0 Baud Rate Setting by Rotary Switch 10K, 20K, 50K, 125K, 250K, 500K, 800K, and 1Mbps Produce EDS file Dynamically ￡? CAN, ERR, and Tx/Rx LED ￡? Specifications Model I-8421, I-8821 CPU 80186, 80MHz Flash 512K bytes SRAM 512K bytes EERROM 2K bytes (Can upto 128K bytes or change to 2K/8K FRAM) NVRAM 32 bytes Real Time Clock 16 bit Watch Dog Timer CPU Built-in COM1 RS232 (Program download port) CAN Port 5-pin screw terminal connector CAN Controller Phillip SJA1000T CAN Transceiver Phillip 82C250/251 CAN 2.0A/2.0B Supported ￡? Isolated 2500Vrms on CAN side Terminal Resister 120 ohm terminal resister selected by jumper Transfer Rate up to 1Mbps I/O Expasion Slot 4 slots 8 slots Power Supply 20W unregulated +10VDC to +30Vdc Operating Temp -25C to 75C Storage Temp -30C to 85C Humidity 5 ~ 95% Dimensions 230x110x75.5 mm, 354x110x75.5 mm

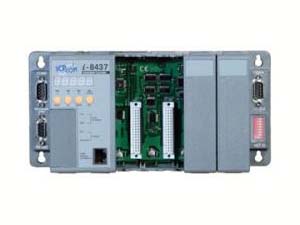

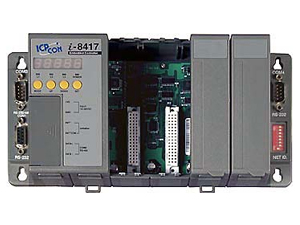

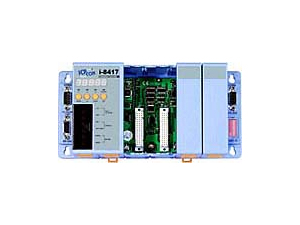

ISaGRAF Controller with 4 empty slots The I-8437 / 8837 provides ethernet solutions. It contains 4 communication ports, COM1:RS232, COM2: 10M ethernet , COM3:RS232/RS485, COM4:RS232. The I-8417/8817 provides RS485 solutions. It contains 4 communication ports, COM1:RS232, COM2: RS485, COM3: RS232 / RS485, COM4:RS232. These different communication ports can provide different kinds of usage include RS485 networking, controller to controller data-exchange, Modbus / Modbus TCP protocol, remote I/O extension, linking with HMI / MMI, program download / upload , and debugging. System CPU: 80188-40 or compatiable COM1:RS-232, SRAM: 512K bytes COM3:RS232/RS485,COM4=RS232 FLASH ROM: 512K bytes Program download from PC to COM1, COM2 & Ethernet COM4 support full modem signals. Built-in 64-bits hardware unique serial number COM ports for the I-8417 & 8817: 4 empty I/O slots for I-8417 & 8437 for I-8000 parallel & COM1:RS-232, COM2:RS-485, serial I/O boards. COM3:RS232/RS485, 8 empty I/O slots for I-8817 & 8837 for I-8000 parallel & COM4:RS232 serial I/O boards COM ports for the I-8437& 8837: SMMI: Built-in five 7-Seg. Leds, four pushbuttons, & three Ethernet: 10 BaseT Leds on the front panel for using as Simple ManMachine   Interface General environment Software Operating temperature: -25￠XC to +75￠XC Storage temperature: -30￠XC to +85￠XC Humidity: 0 to 95 % (non-condensed) Built-in Watch Dog Timer Built-in power protection & network protection circuit Supports IEC61131-3: ISaGRAF Programming languages: LD, FBD, SFC, ST, IL & FC Real Time Clock Year-2000 compliance Gives seconds, minutes, hours, date of the month, month and year, from 1980 to 2079 EEPROM COM1 2048 bytes (8 blocks, each 256 bytes) Data retention > 100 years. 1,000,000 erase/write cycles l Flash Memory 512K bytes, Erase unit is one sector (64K bytes) 100,000 erase/write cycles RS-232: TXD,RXD,RTS,CTS,GND Communication speed: 115200 max. Supports Modbus Serial Protocol for Connecting PC/HMI & Touch panels COM2 for I-8417 & 8817 Ethernet for I-8437 & 8837 RS-485: Data+, Data-, self-tuner ASIC inside Communication speed: 115200 max. Supports Modbus Serial Protocol for Connecting PC/HMI & Touch panels 10 BaseT Connector, 10M bps, NE2000 compatible Supports Modbus TCP/IP Protocol for Connecting PC/HMI & Touch panels COM3 COM4 RS232/RS485: 115200 bps max. RS232: TXD,RXD,RTS,CTS,GND RS485: Data+, Data- Supports Protocol of I-7000 & I-87K Remote I/O Modules Supports Modbus Master Protocol for connecting other Modbus devices Supports User self defined Protocol RS232: 115200 bps max. Full modem signals: TXD, RXD, RTS, CTS, DSR, DTR,DCD, RI, GND Supports Protocol of I-7000 & I-87K Remote I/O Modules Supports Modbus Master Protocol for connecting other Modbus devices Supports User self defined Protocol Modem_Link Controller to Controller Data Exchange Supports PC Remotely download the program to faraway controllers through a general Modem.   Supports !§Ebus!‥ software mechanism built in the ethernet port of the I-8437 & 8837 to exchange data with each other. Supports !§Fbus!‥ software mechanism built in the COM3:RS485 port of the I-8417, 8817, 8437 & 8837 to exchange data with each other. Power NVSRAM Power requirements: 10 to 30Vdc (unregulated) Power consumption: 20W 31 bytes, battery backup, data valid up to 10 years

ISaGRAF Controller with 8 empty slots The I-8437 / 8837 provides ethernet solutions. It contains 4 communication ports, COM1:RS232, COM2: 10M ethernet , COM3:RS232/RS485, COM4:RS232. The I-8417/8817 provides RS485 solutions. It contains 4 communication ports, COM1:RS232, COM2: RS485, COM3: RS232 / RS485, COM4:RS232. These different communication ports can provide different kinds of usage include RS485 networking, controller to controller data-exchange, Modbus / Modbus TCP protocol, remote I/O extension, linking with HMI / MMI, program download / upload , and debugging. System CPU: 80188-40 or compatiable COM1:RS-232, SRAM: 512K bytes COM3:RS232/RS485,COM4=RS232 FLASH ROM: 512K bytes Program download from PC to COM1, COM2 & Ethernet COM4 support full modem signals. Built-in 64-bits hardware unique serial number COM ports for the I-8417 & 8817: 4 empty I/O slots for I-8417 & 8437 for I-8000 parallel & COM1:RS-232, COM2:RS-485, serial I/O boards. COM3:RS232/RS485, 8 empty I/O slots for I-8817 & 8837 for I-8000 parallel & COM4:RS232 serial I/O boards COM ports for the I-8437& 8837: SMMI: Built-in five 7-Seg. Leds, four pushbuttons, & three Ethernet: 10 BaseT Leds on the front panel for using as Simple ManMachine Interface General environment Software Operating temperature: -25￠XC to +75￠XC Storage temperature: -30￠XC to +85￠XC Humidity: 0 to 95 % (non-condensed) Built-in Watch Dog Timer Built-in power protection & network protection circuit Supports IEC61131-3: ISaGRAF Programming languages: LD, FBD, SFC, ST, IL & FC Real Time Clock Year-2000 compliance Gives seconds, minutes, hours, date of the month, month and year, from 1980 to 2079 EEPROM COM1 2048 bytes (8 blocks, each 256 bytes) Data retention > 100 years. 1,000,000 erase/write cycles l Flash Memory 512K bytes, Erase unit is one sector (64K bytes) 100,000 erase/write cycles RS-232: TXD,RXD,RTS,CTS,GND Communication speed: 115200 max. Supports Modbus Serial Protocol for Connecting PC/HMI & Touch panels COM2 for I-8417 & 8817 Ethernet for I-8437 & 8837 RS-485: Data+, Data-, self-tuner ASIC inside Communication speed: 115200 max. Supports Modbus Serial Protocol for Connecting PC/HMI & Touch panels 10 BaseT Connector, 10M bps, NE2000 compatible Supports Modbus TCP/IP Protocol for Connecting PC/HMI & Touch panels COM3 COM4 RS232/RS485: 115200 bps max. RS232: TXD,RXD,RTS,CTS,GND RS485: Data+, Data- Supports Protocol of I-7000 & I-87K Remote I/O Modules Supports Modbus Master Protocol for connecting other Modbus devices Supports User self defined Protocol RS232: 115200 bps max. Full modem signals: TXD, RXD, RTS, CTS, DSR, DTR,DCD, RI, GND Supports Protocol of I-7000 & I-87K Remote I/O Modules Supports Modbus Master Protocol for connecting other Modbus devices Supports User self defined Protocol Modem_Link Controller to Controller Data Exchange Supports PC Remotely download the program to faraway controllers through a general Modem. Supports !§Ebus!‥ software mechanism built in the ethernet port of the I-8437 & 8837 to exchange data with each other. Supports !§Fbus!‥ software mechanism built in the COM3:RS485 port of the I-8417, 8817, 8437 & 8837 to exchange data with each other. Power NVSRAM Power requirements: 10 to 30Vdc (unregulated) Power consumption: 20W 31 bytes, battery backup, data valid up to 10 years

ISaGRAF Controller with 4 empty slots The I-8437 / 8837 provides ethernet solutions. It contains 4 communication ports, COM1:RS232, COM2: 10M ethernet , COM3:RS232/RS485, COM4:RS232. The I-8417/8817 provides RS485 solutions. It contains 4 communication ports, COM1:RS232, COM2: RS485, COM3: RS232 / RS485, COM4:RS232. These different communication ports can provide different kinds of usage include RS485 networking, controller to controller data-exchange, Modbus / Modbus TCP protocol, remote I/O extension, linking with HMI / MMI, program download / upload , and debugging. System CPU: 80188-40 or compatiable COM1:RS-232, SRAM: 512K bytes COM3:RS232/RS485,COM4=RS232 FLASH ROM: 512K bytes Program download from PC to COM1, COM2 & Ethernet COM4 support full modem signals. Built-in 64-bits hardware unique serial number COM ports for the I-8417 & 8817: 4 empty I/O slots for I-8417 & 8437 for I-8000 parallel & COM1:RS-232, COM2:RS-485, serial I/O boards. COM3:RS232/RS485, 8 empty I/O slots for I-8817 & 8837 for I-8000 parallel & COM4:RS232 serial I/O boards COM ports for the I-8437& 8837: SMMI: Built-in five 7-Seg. Leds, four pushbuttons, & three Ethernet: 10 BaseT Leds on the front panel for using as Simple ManMachine Interface General environment Software Operating temperature: -25￠XC to +75￠XC Storage temperature: -30￠XC to +85￠XC Humidity: 0 to 95 % (non-condensed) Built-in Watch Dog Timer Built-in power protection & network protection circuit Supports IEC61131-3: ISaGRAF Programming languages: LD, FBD, SFC, ST, IL & FC Real Time Clock Year-2000 compliance Gives seconds, minutes, hours, date of the month, month and year, from 1980 to 2079 EEPROM COM1 2048 bytes (8 blocks, each 256 bytes) Data retention > 100 years. 1,000,000 erase/write cycles l Flash Memory 512K bytes, Erase unit is one sector (64K bytes) 100,000 erase/write cycles RS-232: TXD,RXD,RTS,CTS,GND Communication speed: 115200 max. Supports Modbus Serial Protocol for Connecting PC/HMI & Touch panels COM2 for I-8417 & 8817 Ethernet for I-8437 & 8837 RS-485: Data+, Data-, self-tuner ASIC inside Communication speed: 115200 max. Supports Modbus Serial Protocol for Connecting PC/HMI & Touch panels 10 BaseT Connector, 10M bps, NE2000 compatible Supports Modbus TCP/IP Protocol for Connecting PC/HMI & Touch panels COM3 COM4 RS232/RS485: 115200 bps max. RS232: TXD,RXD,RTS,CTS,GND RS485: Data+, Data- Supports Protocol of I-7000 & I-87K Remote I/O Modules Supports Modbus Master Protocol for connecting other Modbus devices Supports User self defined Protocol RS232: 115200 bps max. Full modem signals: TXD, RXD, RTS, CTS, DSR, DTR,DCD, RI, GND Supports Protocol of I-7000 & I-87K Remote I/O Modules Supports Modbus Master Protocol for connecting other Modbus devices Supports User self defined Protocol Modem_Link Controller to Controller Data Exchange Supports PC Remotely download the program to faraway controllers through a general Modem. Supports !§Ebus!‥ software mechanism built in the ethernet port of the I-8437 & 8837 to exchange data with each other. Supports !§Fbus!‥ software mechanism built in the COM3:RS485 port of the I-8417, 8817, 8437 & 8837 to exchange data with each other. Power NVSRAM Power requirements: 10 to 30Vdc (unregulated) Power consumption: 20W 31 bytes, battery backup, data valid up to 10 years

ISaGRAF Controller with 8 empty slots The I-8437 / 8837 provides ethernet solutions. It contains 4 communication ports, COM1:RS232, COM2: 10M ethernet , COM3:RS232/RS485, COM4:RS232. The I-8417/8817 provides RS485 solutions. It contains 4 communication ports, COM1:RS232, COM2: RS485, COM3: RS232 / RS485, COM4:RS232. These different communication ports can provide different kinds of usage include RS485 networking, controller to controller data-exchange, Modbus / Modbus TCP protocol, remote I/O extension, linking with HMI / MMI, program download / upload , and debugging. System CPU: 80188-40 or compatiable COM1:RS-232, SRAM: 512K bytes COM3:RS232/RS485,COM4=RS232 FLASH ROM: 512K bytes Program download from PC to COM1, COM2 & Ethernet COM4 support full modem signals. Built-in 64-bits hardware unique serial number COM ports for the I-8417 & 8817: 4 empty I/O slots for I-8417 & 8437 for I-8000 parallel & COM1:RS-232, COM2:RS-485, serial I/O boards. COM3:RS232/RS485, 8 empty I/O slots for I-8817 & 8837 for I-8000 parallel & COM4:RS232 serial I/O boards COM ports for the I-8437& 8837: SMMI: Built-in five 7-Seg. Leds, four pushbuttons, & three Ethernet: 10 BaseT Leds on the front panel for using as Simple ManMachine Interface General environment Software Operating temperature: -25￠XC to +75￠XC Storage temperature: -30￠XC to +85￠XC Humidity: 0 to 95 % (non-condensed) Built-in Watch Dog Timer Built-in power protection & network protection circuit Supports IEC61131-3: ISaGRAF Programming languages: LD, FBD, SFC, ST, IL & FC Real Time Clock Year-2000 compliance Gives seconds, minutes, hours, date of the month, month and year, from 1980 to 2079 EEPROM COM1 2048 bytes (8 blocks, each 256 bytes) Data retention > 100 years. 1,000,000 erase/write cycles l Flash Memory 512K bytes, Erase unit is one sector (64K bytes) 100,000 erase/write cycles RS-232: TXD,RXD,RTS,CTS,GND Communication speed: 115200 max. Supports Modbus Serial Protocol for Connecting PC/HMI & Touch panels COM2 for I-8417 & 8817 Ethernet for I-8437 & 8837 RS-485: Data+, Data-, self-tuner ASIC inside Communication speed: 115200 max. Supports Modbus Serial Protocol for Connecting PC/HMI & Touch panels 10 BaseT Connector, 10M bps, NE2000 compatible Supports Modbus TCP/IP Protocol for Connecting PC/HMI & Touch panels COM3 COM4 RS232/RS485: 115200 bps max. RS232: TXD,RXD,RTS,CTS,GND RS485: Data+, Data- Supports Protocol of I-7000 & I-87K Remote I/O Modules Supports Modbus Master Protocol for connecting other Modbus devices Supports User self defined Protocol RS232: 115200 bps max. Full modem signals: TXD, RXD, RTS, CTS, DSR, DTR,DCD, RI, GND Supports Protocol of I-7000 & I-87K Remote I/O Modules Supports Modbus Master Protocol for connecting other Modbus devices Supports User self defined Protocol Modem_Link Controller to Controller Data Exchange Supports PC Remotely download the program to faraway controllers through a general Modem. Supports !§Ebus!‥ software mechanism built in the ethernet port of the I-8437 & 8837 to exchange data with each other. Supports !§Fbus!‥ software mechanism built in the COM3:RS485 port of the I-8417, 8817, 8437 & 8837 to exchange data with each other. Power NVSRAM Power requirements: 10 to 30Vdc (unregulated) Power consumption: 20W 31 bytes, battery backup, data valid up to 10 years

ISaGRAF Ethernet Controller with 4 empty slots The I-8437 / 8837 provides ethernet solutions. It contains 4 communication ports, COM1:RS232, COM2: 10M ethernet , COM3:RS232/RS485, COM4:RS232. The I-8417/8817 provides RS485 solutions. It contains 4 communication ports, COM1:RS232, COM2: RS485, COM3: RS232 / RS485, COM4:RS232. These different communication ports can provide different kinds of usage include RS485 networking, controller to controller data-exchange, Modbus / Modbus TCP protocol, remote I/O extension, linking with HMI / MMI, program download / upload , and debugging. System CPU: 80188-40 or compatiable COM1:RS-232, SRAM: 512K bytes COM3:RS232/RS485,COM4=RS232 FLASH ROM: 512K bytes Program download from PC to COM1, COM2 & Ethernet COM4 support full modem signals. Built-in 64-bits hardware unique serial number COM ports for the I-8417 & 8817: 4 empty I/O slots for I-8417 & 8437 for I-8000 parallel & COM1:RS-232, COM2:RS-485, serial I/O boards. COM3:RS232/RS485, 8 empty I/O slots for I-8817 & 8837 for I-8000 parallel & COM4:RS232 serial I/O boards COM ports for the I-8437& 8837: SMMI: Built-in five 7-Seg. Leds, four pushbuttons, & three Ethernet: 10 BaseT Leds on the front panel for using as Simple ManMachine Interface General environment Software Operating temperature: -25￠XC to +75￠XC Storage temperature: -30￠XC to +85￠XC Humidity: 0 to 95 % (non-condensed) Built-in Watch Dog Timer Built-in power protection & network protection circuit Supports IEC61131-3: ISaGRAF Programming languages: LD, FBD, SFC, ST, IL & FC Real Time Clock Year-2000 compliance Gives seconds, minutes, hours, date of the month, month and year, from 1980 to 2079 EEPROM COM1 2048 bytes (8 blocks, each 256 bytes) Data retention > 100 years. 1,000,000 erase/write cycles l Flash Memory 512K bytes, Erase unit is one sector (64K bytes) 100,000 erase/write cycles RS-232: TXD,RXD,RTS,CTS,GND Communication speed: 115200 max. Supports Modbus Serial Protocol for Connecting PC/HMI & Touch panels COM2 for I-8417 & 8817 Ethernet for I-8437 & 8837 RS-485: Data+, Data-, self-tuner ASIC inside Communication speed: 115200 max. Supports Modbus Serial Protocol for Connecting PC/HMI & Touch panels 10 BaseT Connector, 10M bps, NE2000 compatible Supports Modbus TCP/IP Protocol for Connecting PC/HMI & Touch panels COM3 COM4 RS232/RS485: 115200 bps max. RS232: TXD,RXD,RTS,CTS,GND RS485: Data+, Data- Supports Protocol of I-7000 & I-87K Remote I/O Modules Supports Modbus Master Protocol for connecting other Modbus devices Supports User self defined Protocol RS232: 115200 bps max. Full modem signals: TXD, RXD, RTS, CTS, DSR, DTR,DCD, RI, GND Supports Protocol of I-7000 & I-87K Remote I/O Modules Supports Modbus Master Protocol for connecting other Modbus devices Supports User self defined Protocol Modem_Link Controller to Controller Data Exchange Supports PC Remotely download the program to faraway controllers through a general Modem. Supports !§Ebus!‥ software mechanism built in the ethernet port of the I-8437 & 8837 to exchange data with each other. Supports !§Fbus!‥ software mechanism built in the COM3:RS485 port of the I-8417, 8817, 8437 & 8837 to exchange data with each other. Power NVSRAM Power requirements: 10 to 30Vdc (unregulated) Power consumption: 20W 31 bytes, battery backup, data valid up to 10 years
