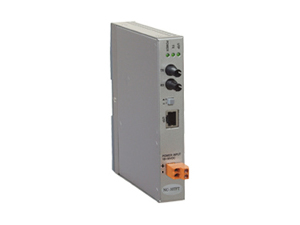

100 Base-T to 100 Base-FX Media Converter Introduction The NC-200TF series consists of two models of media converters: NC-200TFT,NC-200TFC. These converters are designed to convert 100 Base-T to /from 100 Base-T to/from 100 Base-FX media type. The NC-200TF series supports three fiber media types: multimode ST and SC connectors respectively. All three models support convenient connection to either a straight-through or a cross-over cable on the UTP end. The NC-200TF series converters are cost effective and easy solutions for use in a mixed cabling environment or extending the network span to include a fiber optic backbone. Features Fiber Mode : MultiMode Connector : SC Power Input : DC10~30V Complies with 802.3 100Base-T and 100 Base-FX standards Provides media conversion from UTP to Fiber Optic media types Extends network span up to 2km(multimode fiber) Provides a push button to set crossover function for the TP port Interoperable with other 100Base media converters Provides LEDs for easy network monitoring Supports a variety of fiber optic connectors including duplex multimode ST, SC

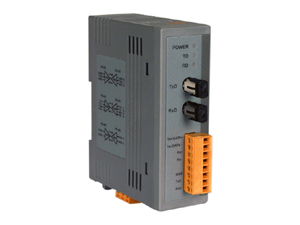

RS-232/422/485 to Fiber Optic Converter Introduction The I-2541 is an RS-232/422/485 to fiber optic converter that secures data transmission by using fiber optic transmission to provide immunity from EMI/RFI interference. The I-2541 is used for RS-232/422 point-to- point connections and RS-485 multi-drop applications for transmitting a signal up to 2 Km(6,600 ft), and is the perfect solution for applications where transmission must be protected from electrical exposure, surges, lightning or chemical corrosion.

Industrial 10/100 Base-T to 100 Base-FT Fiber Optical Converter Introduction The NS-200FT is a Ethernet(10/100Base-TX) to Fiber Optic(100Base-FX) converter. The Ethernet supports 10/100M auto-negotiation feature and auto MDI/MDIX function. The NS-200FT operates at either half or full duplex mode. In full duplex mode, range is 2km with 62.5/ 125£gm fiber cables; in half duplex mode, range is 412m with 62.5/ 125£gm fiber cables. It contains "soft start" function with overload protection, high-low voltage protection. The width of the NS-200FT is just 32.30 mm, so it can be used where space is important. Features Automatic MDI / MDI-X crossover for plug-and-play Each port supports both 10/100 Mbps speed auto negotiation Store-and-forward architecture Full duplex IEEE 802.3x and half duplex backpressure flow control 1.4Gbps high performance memory bandwidth. Integrated look-up engine with dedicated 1 K unicast MAC addresses. MTBF = 438,000 hours( Temperature is 25 ¢X) MTBCF = 525,600 hours ( Temperature is 25 ¢X) Supports +10~+30Vdc voltage Supports operating temperatures from 0 ~ +70¢XC DIN rail mount for industrial usage

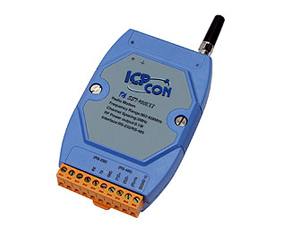

Wireless Modem Module RS-232/RS-485 Interface Introduction SST-900EXT is a spread spectrum radio modem with RS-232/RS-485 interface port. It is designed for data acquisition and control application between host and remote sensors. It is also useful for those application, the cable wire is inconvenient to be installed. Please refer to the right hand side hardware configuration . Application Remote Data acquisition Factory automation Building automation Remote security system Remote Display system Features Half-duplex up to 57600bps Auto band -rate setting ISM band Full-duplex or half-duplex Spread Spectrum technology Specifications Frequency Range : 902-928 MHz (SST-900EXT) Channel Spacing : 2MHz Transmit power : 20 +/- 2dBm Modulation technique : GMSK Radio technique : direct sequence spread spectrum Duplex Mode: TDD ( for Full-duplex) Number of channel : 8 PN code rate : 1.365 Mchips /sec. Communication distance: Depend on external antenna, default is 300M Maximum data transfer rate in asynchronous mode: Full-duplex mode : 9.6Kbps half-duplex mode : 28.2K Maximum data transfer rate in synchronous mode: Full-duplex mode : 19.2Kbps half-duplex mode : 57.6K Data bit error rate Antenna : < 1/1000@ -102dBm Input voltage : 10~30Vdc Input current : Typical then 250mA Size : 106mm (L) x 76mm(W)x31mm(H) Weight : 200g Operating temperature : 0~50C Operating humility : 0~90%

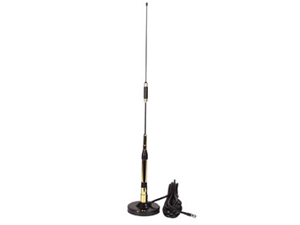

1 Km external antenna for SST-900ext

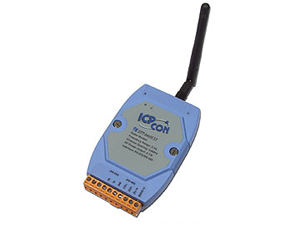

Wireless Modem Module RS-232/RS-485 Interface Introduction SST-2450EXT is a spread spectrum radio modem with RS-232/RS-485 interface port. It is designed for data acquisition and control application between host and remote sensors. It is also useful for those applications, the cable wire is inconvenient to be installed. The SST-2450 can be used in not only peer to peer mode but also multi-point structure. Based on direct sequence spread spectrum and RF technology operating In ISM bands. The Frequency Range is 2410.496MHz~2471.936MHz. The Channel Spacing is 4.096MHz. Basically the SST-2450 is the same with SST-2400. The most different is the setting method. SST-2400 is set by jumper, and the SST-2450 is set by software utility. The new SST-2450 can also work together with this SST-2400 if you change the inside 8051 chip of SST-2400. Just contact us, then we will ship a new chip which is with a new firmware. Features Half-duplex up to 57600bps Auto band -rate setting ISM band Full-duplex or half-duplex Spread Spectrum technology Specifications Frequency Range: 2.4GHz (2410.496MHz ~ 2471.936MHz) Channel Spacing: 4.096MHz Output Power: 0.05W Transmit power : 17dBm?g2dBm Modulation technique: GMSK Radio technique: Direct sequence spread spectrum Duplex Mode: TDD (for Full-duplex) Number of channel: 16 Number of PN code: 16 PN code rate: 1.365 Mchips /sec. Communication distance: Depend on external antenna, default is 300M Maximum data transfer rate in asynchronous mode: Full-duplex mode: 9.6Kbps Half-duplex mode: 28.2K Maximum data transfer rate in synchronous mode: Full-duplex mode: 19.2Kbps Half-duplex mode: 57.6K Setting Method: Software setting Antenna: Can bend Antenna Connector : Reverse-Polarity SMA-Jack Data Format: N,8,1 or E,8,1 dependent on software setting Data bit error ratee Antenna: < 1/1000@ -102dBm Input voltage: 10~30Vdc Input current: Typical less then 250mA Consumption: Transmission : 2W Receive : 1W Size: 106mm (L) x 76mm (W) x31mm (H) Weight: 200g Operating temperature: -10oC~50oC Operating humility: 0~90% SST-2450 can work together with SST-2400(Change the 8051 chip of SST-2400).

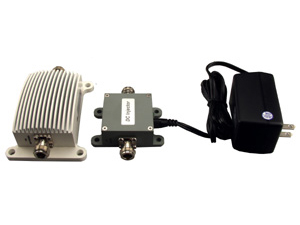

1 W amplifier Features Designed for extending the range of 2.4 GHz wireless radio devices, the Smart-Amp is particularly effective when used with Direct Sequence or Frequency Hopping Spread Spectrum radio modems. The unit provides transmit power amplification and receives signal gain. Full output power of 1W is achieved with only 4mW input to the amplifier. Above 4 mW input, the smartamp attenuates the input signal power and maintains the output power typically at 1W. Substantial discounts available for OEMs and large volume purchases. Also available in 900Mhz & 5.8GHz versions. Contact sales office for details. Spectifications Operating Range: 2400-2500 MHz Operating Mode: TDD Lightning Protection: Direct DC ground at antenna DC Surge Protection: 600 Watts TVS @ 9 VDC Mechanical & Environmental Operating Temperature: -40 to +70 degree C Power: 1.2 A @ 9 VDC Dimensions Amplifier: 4.7!‥ L X 3.5!‥ W X 1.5!‥H DC Injector: 3.5!‥ L X 3!‥ W X 1.18!‥ H Weight Amplifier: 0.9 lb DC injector: 0.4 lb RF Connector: N, Female Smart Function: Yes Transmitter Amplifier Transmit Gain: up to 24 dB Transmit input power: 1 mW min 200 mW max Receiver Amplifier Receive Gain: 15 dB typical Frequency Response: +/- 1 dB Noise Figure: 3.5 dB

2 Km external antenna for SST-2450 Electrical Specification Gain : 8dBi Polarization : Linear Power handling : 10W Impedance : 50 Ohms Connctor : SMA Cable : RG-58,100cm
