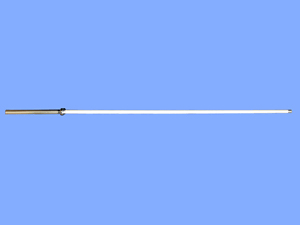

9 Km external antenna for SST-2450 (Omnidirectional) Gain : 15dBi Features Gain: 15dBi Polarization: Vertical Power handling: 10W Impedance: 50 Ohms Connector: SMA Cable: RG-58, 100cm

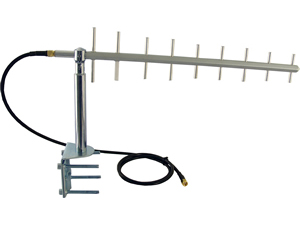

15 Km external antenna for SST-2450 (Directional) Gain : 21dBi Features Gain: 21dBi Polarization: Vertical Power handling: 10W Impedance: 50 Ohms Connector: SMA Cable: RG-58, 100cm

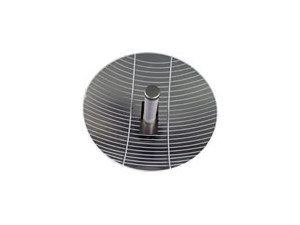

9 Km external antenna for SST-2450 (Directional) Gain : 15dBi Features Gain: 15dBi Polarization: Vertical Power handling: 10W Impedance: 50 Ohms Connector: SMA Cable: RG-58, 100cm

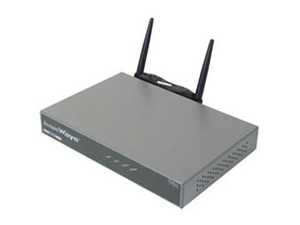

11Mbps Wireless Access Point Features The InstantWave 11Mbps Wireless Access Point provides interoperability, expandability, security, and manageability for top performance wireless networking in both single and multiple AP installations. Comprehensive SNMP-based management software gives professional level network management tools for easy wireless network management and monitoring. The InstantWave 11Mbps Wireless Access Point fully complies with the IEEE 802.11b and Wi-Fi standards. With superior wireless technology and advanced features, the InstantWave 11Mbps Wireless Access Point is a reliable, high performance, cost effective wireless solution. Key Features and Benefits Industrial IEEE 802.11b Standard Compliant Complies with the IEEE 802.11b DSSS (Direct Sequence Spread Spectrum) wireless standard and is fully compatible with Wi-Fi certified products, ensuring full product interoperability between vendors. Superior Coverage and High Transmission Quality InstantWave's advanced radio frequency technology gives outstanding performance at up to 11Mbps data transmission/reception speed: Advanced external dual diversity antenna for top quality transmission/reception Superior receiving sensitivity enhances weak data signal pickup at longer distances Easy Installation User-friendly Windows-based interface, setup wizard, and step-by-step instructions make the InstantWave 11Mbps Wireless Access Point fast and easy to install. Detachable Antenna The detachable antenna design provides the flexibility to connect a high-gain antenna for higher transmission quality over a wider coverage area, or in a radio frequency hostile environment. Wireless Configuration InstantWave's superior wireless technology eliminates the requirement to make a wired set up or configuration connection. Simply do it all from a wireless client! Comprehensive Network Management Tools Supports SNMP for MIB I and MIB II over Ethernet in a Windows environment. Service Discovery: Auto IP Address Assignment Support: The NWH660 will automatically generate a new IP address should the DHCP server fail. - AP Discovery: Allows network administrators to easily locate all InstantWave APs for centralized management. Supports Site Survey: Helps evaluate and determine the best location in which to place the AP for the best performance. Protocol Filtering: Saves bandwidth and increases security by preventing the AP from transmitting unneeded protocols onto the wireless network. On-line Firmware Upgradeability: Allows AP firmware to be upgraded from a remote station without stopping the network. Trap Server: With auto-notification of abnormal operation, network administrators can easily monitor the network operating condition and take preventive action in order to increase network uptime. Windows-based Configuration: Allows users to easily configure the AP in a Windows environment. DHCP Client Support: Automatically obtains a new IP address from a DHCP server using the Dynamic Host Configuration Protocol. Batch Configuration: Automatically propagates configuration settings to a group of APs on the same subnet. Specifications Standards Compliance IEEE 802.11b, Wi-Fi compliant Radio Frequency Type Direct Sequence Spread Spectrum (DSSS) Frequency Band 2.4GHz Transmission Rate Up to 300m (984ft) outdoors (depends on the interference conditions and environment) Up to 100m (328ft) indoors (depends on the interference conditions and environment) Access Point Interfaces 10Base-T: RJ-45 RS-232: D-SUB 9 pin Radio Wave: Antenna - Reverse-SMA Antenna Type Dual dipole diversity Security 40-bit/128-bit WEP encryption; Secure SSID; User Authentication (EAP-like); MAC Access Control; Administrative Access Control; Unauthorized wireless Access Alert Software Support SNMP for MIB I and MIB II; Windows-based network management tools; Access Control; Protocol filtering; Trap Management; Self-Diagnostic Test; Upgradeable Firmware; Auto IP Assignment; AP Discovery; Seamless Roaming; DHCP Client- Batch Configuration Operating Environment Operating Temperature: 0 ~ 55￠FC (32 ~ 131￠FK) Storage Temperature: -30 ~ 70￠FC (-22 ~ 158￠FK) Humidity: Maximum 85% at 40￠FC (104￠FK) non-condensing Dimensions 220 x 145 x 33mm (8.66 x 5.71 x 1.30in.) Power DC 5.1 Volt + 5%; 2A (Max.); AC adapter AC 100V ~ 240V; 1.0A (Typical) Power Consumption: 5.1Volt. 1.0A (Typical) Regulatory Approval FCC Part 15 B (US); CE; TELEC OS Support Windows 95/98/Me/NT4.0/2000/XP Warranty One year limited

11Mbps Wireless Access Point Introduction The InstantWave 11Mbps Wireless Access Point provides interoperability, expandability, security, and manageability for top performance wireless networking in both single and multiple AP installations. Comprehensive SNMP-based management software gives professional level network management tools for easy wireless network management and monitoring. The InstantWave 11Mbps Wireless Access Point fully complies with the IEEE 802.11b and Wi-Fi standards. With superior wireless technology and advanced features, the InstantWave 11Mbps Wireless Access Point is a reliable, high performance, cost effective wireless solution. Key Features and Benefits Industrial IEEE 802.11b Standard Compliant Complies with the IEEE 802.11b DSSS (Direct Sequence Spread Spectrum) wireless standard and is fully compatible with Wi-Fi certified products, ensuring full product interoperability between vendors. Superior Coverage and High Transmission Quality InstantWave's advanced radio frequency technology gives outstanding performance at up to 11Mbps data transmission/reception speed: Advanced external dual diversity antenna for top quality transmission/reception Superior receiving sensitivity enhances weak data signal pickup at longer distances Easy Installation User-friendly Windows-based interface, setup wizard, and step-by-step instructions make the InstantWave 11Mbps Wireless Access Point fast and easy to install. Detachable Antenna The detachable antenna design provides the flexibility to connect a high-gain antenna for higher transmission quality over a wider coverage area, or in a radio frequency hostile environment. Wireless Configuration InstantWave's superior wireless technology eliminates the requirement to make a wired set up or configuration connection. Simply do it all from a wireless client! Comprehensive Network Management Tools Supports SNMP for MIB I and MIB II over Ethernet in a Windows environment. Service Discovery: Auto IP Address Assignment Support: The NWH660 will automatically generate a new IP address should the DHCP server fail. - AP Discovery: Allows network administrators to easily locate all InstantWave APs for centralized management. Supports Site Survey: Helps evaluate and determine the best location in which to place the AP for the best performance. Protocol Filtering: Saves bandwidth and increases security by preventing the AP from transmitting unneeded protocols onto the wireless network. On-line Firmware Upgradeability: Allows AP firmware to be upgraded from a remote station without stopping the network. Trap Server: With auto-notification of abnormal operation, network administrators can easily monitor the network operating condition and take preventive action in order to increase network uptime. Windows-based Configuration: Allows users to easily configure the AP in a Windows environment. DHCP Client Support: Automatically obtains a new IP address from a DHCP server using the Dynamic Host Configuration Protocol. Batch Configuration: Automatically propagates configuration settings to a group of APs on the same subnet. Specifications Standards Compliance IEEE 802.11b, Wi-Fi compliant Radio Frequency Type Direct Sequence Spread Spectrum (DSSS) Frequency Band 2.4GHz Transmission Rate Up to 300m (984ft) outdoors (depends on the interference conditions and environment) Up to 100m (328ft) indoors (depends on the interference conditions and environment) Access Point Interfaces 10Base-T: RJ-45 RS-232: D-SUB 9 pin Radio Wave: Antenna - Reverse-SMA Antenna Type Dual dipole diversity Security 40-bit/128-bit WEP encryption; Secure SSID; User Authentication (EAP-like); MAC Access Control; Administrative Access Control; Unauthorized wireless Access Alert Software Support SNMP for MIB I and MIB II; Windows-based network management tools; Access Control; Protocol filtering; Trap Management; Self-Diagnostic Test; Upgradeable Firmware; Auto IP Assignment; AP Discovery; Seamless Roaming; DHCP Client- Batch Configuration Operating Environment Operating Temperature: 0 ~ 55￠FC (32 ~ 131￠FK) Storage Temperature: -30 ~ 70￠FC (-22 ~ 158￠FK) Humidity: Maximum 85% at 40￠FC (104￠FK) non-condensing Dimensions 220 x 145 x 33mm (8.66 x 5.71 x 1.30in.) Power DC 5.1 Volt + 5%; 2A (Max.); AC adapter AC 100V ~ 240V; 1.0A (Typical) Power Consumption: 5.1Volt. 1.0A (Typical) Regulatory Approval FCC Part 15 B (US); CE; TELEC OS Support Windows 95/98/Me/NT4.0/2000/XP Warranty One year limited

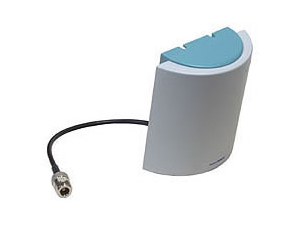

8.5dBi Outdoor High-Gain Directional Antenna Introduction The InstantWave 8.5dBi Outdoor High-Gain Directional Antenna is perfect for installation outdoors and provides greater wireless range in building-to-building connections. It offers major cost-savings and simplicity over installing expensive and difficult-to-install leased line (E1 or T1) or fiber-optic cable to connect separated networks. The antenna connects directly to InstantWave Wireless Bridge equipment, and amplifies the wireless signal to give a 600m (1970ft) range among point-to-multipoint (wireless bridge to wireless bridges) operation. Providing a transmission angle of radiation pattern of approximately 70 degrees, the weatherproof InstantWave NWA0208 is designed for outdoor deployment in multi-building enterprises, or halls on campus that are laid out in a more scattered pattern. Electrical Specifications Frequency Range: 2400MHz ¡V 2500MHz Gain: 8.5dBi VSWR: 1.5:1 Max. Polarization: Linear, Vertical HPBW/Horizontal: 70¢X HPBW/Vertical: 65¢X Front to Back Ratio: 15dBi Power Handling: 50W (cw) Impedance: 50 Ohms Connector: N female Warranty: One year limited Regulatory Approval: FCC Part 15 B (US); CE; TELEC OS Support: Windows 95/98/Me/NT4.0/2000/XP Environmental & Mechanical Characteristics Temperature: -10￠FJ to + 55￠FJ Humidity: 100% @ 25￠FJ Lightening Protection: DC ground Dimensions: 125 x 120 x 42mm (4.92 x 4.72 x 1.65in.) Weight: 300g (10.58oz)

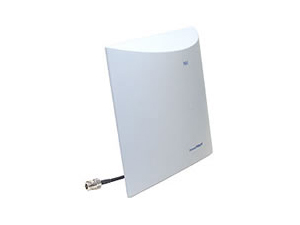

14dBi Outdoor High-Gain Directional Antenna Introduction The InstantWave 14dBi Outdoor High-Gain Directional Antenna transmits a wireless signal up to 1000m (3280ft.) and is the ideal choice for building-to-multi-buildings wireless connections over longer distances. It offers major cost-savings and simplicity over installing expensive and difficult-to-install leased line (E1 or T1) or fiber-optic cable to connect separated networks. The antenna connects directly to InstantWave Wireless Bridge equipment and amplifies the wireless signal among point-to-multipoint (wireless bridge-to-wireless bridges) operation with outstanding transmission quality. Providing more energy in one direction (approximately 30 degree angle of radiation) for greater range, the weatherproof NWA0214 is optimized for longer distance outdoor deployment amount multi-building enterprises, or widely separated halls on campus. Electrical Specifications Frequency Range: 2400MHz ¡V 2500MHz Gain: 8.5dBi VSWR: 1.5:1 Max. Polarization: Linear, Vertical HPBW/Horizontal: 70¢X HPBW/Vertical: 65¢X Front to Back Ratio: 15dBi Power Handling: 50W (cw) Impedance: 50 Ohms Connector: N female Warranty: One year limited Regulatory Approval: FCC Part 15 B (US); CE; TELEC OS Support: Windows 95/98/Me/NT4.0/2000/XP Environmental & Mechanical Characteristics Temperature: -10￠FJ to + 55￠FJ Humidity: 100% @ 25￠FJ Lightening Protection: DC ground Dimensions: 125 x 120 x 42mm (4.92 x 4.72 x 1.65in.) Weight: 300g (10.58oz)

14dBi Outdoor High-Gain Directional Antenna Product Features Dual Band GSM/GPRS modem (EGSM900/1800 MHz) Fully Type Approved Fully compliant with ETSI GSM Phase 2 + specifications (Normal MS) Output power: Class 4 (2W @ 900 MHz) Class 1 (1W @ 1800/1900 MHz) Input voltage: 5V-32V Input current: Always on version (GPRS):- 13,2mA in idle mode, 130mA in communication(GSM 900 ) , 94mA in communication (GSM1800 / 1900 )@ 13,2V Autoshutdown version (GSM): - 2,5mA in idle mode, 130mA in communication (GSM 900), 94mA in communication (GSM 1800 / 1900) @ 13,2V Temperature range: - -20oC -- +55oC operating - -25oC -- +70oCstorage Overall dimensions: 98 x 54 x 25mm Weight: 130g Voice Features (GSM Mode) Telephony Emergency calls Full Rate, Enhanced Full Rate and Half Rate (FR/EFR/HR) Dual Tone Multi Frequency function (DTMF) GSM Circuit Data FAX Features Data circuit asynchronous, transparent and non-transparent up to 14,400 bits/s Automatic fax group 3 (Class 1 and Class 2) MNP2, V.42bis GPRS Packet Data Features GPRS Class 2 Coding Schemes: CS1 to CS4 Compliant with SMG31bi Short Messages Services Features(GSM or GPRS Mode) Text and PDU Point to point (MT/MO) Cell Broadcas GSM Supplementary Services Call Forwarding Call Barring Multiparty Call Waiting and Call Hold Calling Line Identity Advice of Charge USSD Closed User Group Explicit Call Transfer Other Features ME+SIM phone book management Fixed Dialling Number SIM Toolkit Class 2 SIM, network and service provider locks Real Time Clock Alarm management Software upgrade through Xmodem protocol UCS2 character set management Interfaces RS-232 and audio through mini sub-D 15-pin connector supporting: - Remote control by AT commands (GSM 07.07 and 07.05) - Baud rate from 300 to 115,200 bits/s - Autobauding (300 to 38,400 bits/s) Power supply through micro-FIT 4-pin connector SMA antenna connector Sliding SIM holder (3V/5V SIM interface) Deliverables User guide Power supply cable Y-cable for data and audio connection (optional) Fixing equipment
