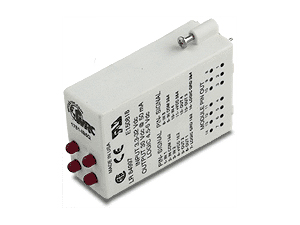

SSR-4-IDC-05
Quad VDC In(3.3-32) Features:Four inputs per module 4000 Vrms isolation Low costSpecifications:# of inputs: 4 Input Voltage: 3.3 to 32 VDC Input Current (max): 32 mA Input Resistance: 1.0 Kohm Turn-on Time: 300 uS Turn-off Time: 600 uS Supply Current: 10 mACompatibility Guide:Installs on SSR-RACK48 board SSR-RACK48 compatible with: Digital I/O boards containing a minimum of 48 channels Cable: C50FF-# series
$88.00
SSR-4-IDC-05NP
Quad V In Not Polarized(10-60) Features:Four inputs per module 4000 Vrms isolation Low costSpecifications:# of inputs: 4 Input Voltage: 10 to 32 10-60V Rms Input Current (max): 25 mA Input Resistance: 1.8 Kohm Turn-on Time: 20 mS Turn-off Time: 30 mS Supply Current: 10 mACompatibility Guide:Installs on SSR-RACK48 board SSR-RACK48 compatible with: Digital I/O boards containing a minimum of 48 channels Cable: C50FF-# series
$88.00

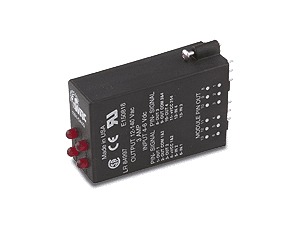

SSR-4-OAC-05
Quad Vac Out(12-140) 3 Amp Features:Four inputs per module 4000 Vrms isolation Low costSpecifications:# of inputs: 4 Load Voltage: 12 to 120 Load Current Max: 3.0 Amps Power Dissipation: 1W/Amp Blocknig Voltage: 400 VDC Turn On Time: 1/2 cycle Turn Off Time: 1/2 cycle Off Leakage Current: 2.5 mA rms Frequency Range: 47 Hz to 63 Hz Logic Supply Current: 10mACompatibility Guide:Installs on SSR-RACK48 board SSR-RACK48 compatible with: Digital I/O boards containing a minimum of 48 channels Cable: C50FF-# series
$88.00

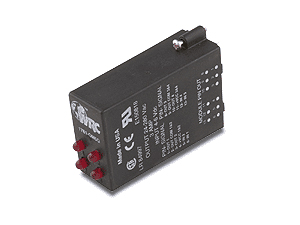

SSR-4-OAC05A
Quad Vac Out(24-280) 3 Amp Features:Four inputs per module4000 Vrms isolation Low costSpecifications:# of inputs: 4 Load Voltage: 24 to 280 Load Current Max: 3.0 Amps Power Dissipation: 1W/Amp Blocknig Voltage: 600 VDC Turn On Time: 1/2 cycle Turn Off Time: 1/2 cycle Off Leakage Current: 4.5 mA rms Frequency Range: 47 Hz to 63 Hz Logic Supply Current: 10mACompatibility Guide:Installs on SSR-RACK48 board SSR-RACK48 compatible with: Digital I/O boards containing a minimum of 48 channels Cable: C50FF-# series
$88.00

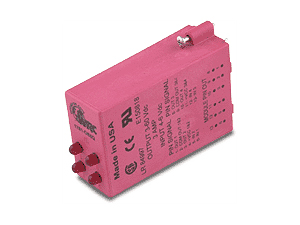

SSR-4-ODC-05
Quad VDC Out(3-60) 3 Amp Features:Four inputs per module 4000 Vrms isolation Low costSpecifications:# of inputs: 4 Load Voltage: 3 to 60 Load Current Max: 3.0 Amps Power Dissipation: 1W/Amp Blocknig Voltage: 108 VDC Turn On Time: 50uS Turn Off Time: 100uS Off Leakage Current: 1.0 mA On Voltage Drop: 1.5VDC Logic Supply Current: 10mACompatibility Guide:Installs on SSR-RACK48 board SSR-RACK48 compatible with: Digital I/O boards containing a minimum of 48 channels Cable: C50FF-# series
$88.00

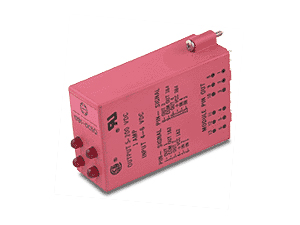

SSR-4-ODC05A
Quad VDC Out(5-200) 1 Amp Features:Four inputs per module 4000 Vrms isolation Low costSpecifications:# of inputs: 4 Load Voltage: 5 to 200 Load Current Max: 1 Amp Power Dissipation: 1.5 W/Amp Blocking Voltage: 360 VDC Turn On Time: 50uS Turn Off Time: 100uS Off Leakage Current: 2 mA On Voltage Drop: 1.6VDC Logic Supply Current: 10mACompatibility Guide:Installs on SSR-RACK48 board SSR-RACK48 compatible with: Digital I/O boards containing a minimum of 48 channels Cable: C50FF-# series
$88.00

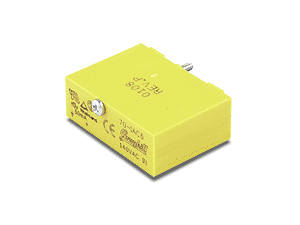

SSR-IAC-05
AC Sense SSR, 90-140 VAC Features:4000 Vrms isolation Low costSpecifications:# of inputs: 1 Input Voltage: 90 to 140 VAC Input Current (max): 11 mA rms Input Resistance: 14 Kohm Turn-on Time: 20 mS Turn-off Time: 30 mS Supply Current: 10 mACompatibility Guide:Installs on SSR-RACK24 or SSR-RACK08 board
$17.00

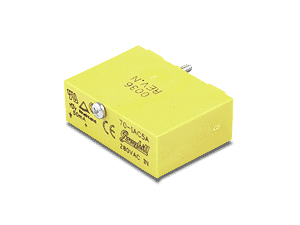

SSR-IAC-05A
AC Sense SSR, 180-280 VAC Features:4000 Vrms isolation Low costSpecifications:# of inputs: 1 Input Voltage: 180 to 280 VAC Input Current (max): 6 mA rms Input Resistance: 45 Kohm Turn-on Time: 20 mS Turn-off Time: 30 mS Supply Current: 10 mACompatibility Guide:Installs on SSR-RACK24 or SSR-RACK08 board
$17.00
